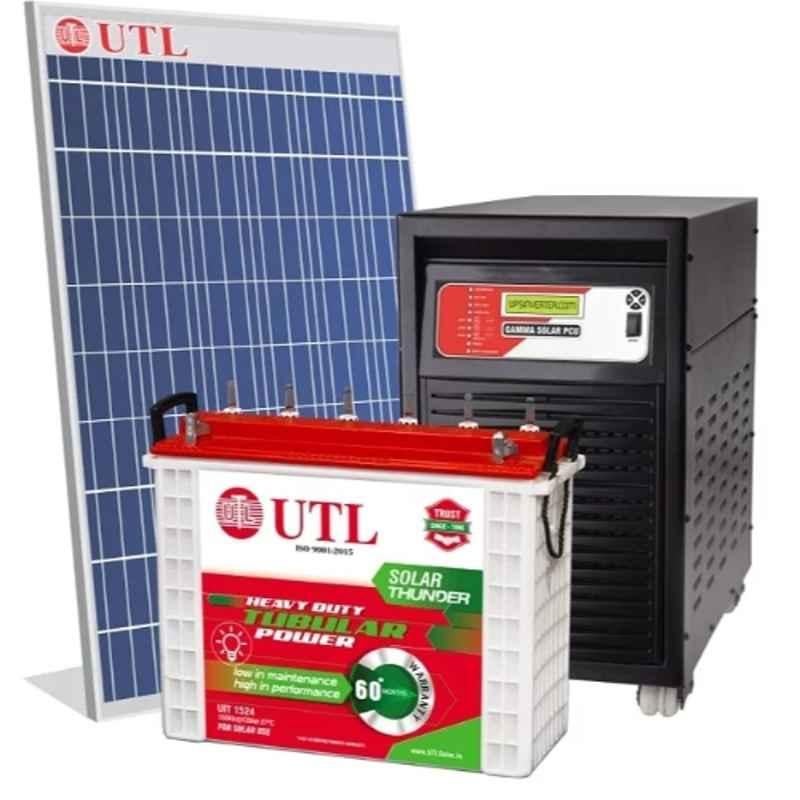

UTL UIT 2036 200Ah/12V Tubular Battery, Gamma Plus PCU 2000 1500VA MPPT Single Phase Offgrid Solar PCU, & 555W Half Cut Mono PERC 144 Cells Solar Panel Combo

4.6

(5 Reviews)

₹126,089 (Incl. of all taxes)

₹120,084 ₹6,005 GST

MRP ₹217,284 41% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

  • Low Maintenance & Efficient.

  • Long Life with Deep Cycle Performance.

  • Robust Tubular Design for Durability.

  • Highly Efficient Solar Panels.

  • Available in Various Power Ratings.

  • Superior Performance in All Atmospheres.

  • Anodized Aluminium Alloy Frame for Protection.

  • Excellent Power Generation Even in Low Light Irradiation.

  • Multi-Colour LCD Display, Pure Sine Wave Output.

  • Solar Priority of Load & Battery Charging.

  • Preference to Solar Power Over Grid Power.

  • Charging Multi Stage (Bulk, Absorption & Float).

  • Protections: RBP, RSPV, OVL, BL, BH, S.CKT, I/P HV & LV, OHT.

  • Priority Selection- PCU, Smart & Hybrid for Saving Energy & Money.

  • Controller Based Design, Pure Sine Wave, Built in rMPPT Charge Controller.

Show All Key Features

Product Specifications

Brand
Additional Details
Noise: 50 dB
Switching Element: Mosfet
Nominal Grid Voltage: 230 V
Grid Charging Current: 10A/15A ±2 Amp
Output Voltage: 220 ±8% V
Topology: Boost Mosfet
Cooling: Fan
Cell Arrangement: 12x6
Battery Capacity
200 Ah
PCU Maximum: 200 Ah
Battery Type
Tubular
Battery Voltage
12 V
Current
Output: 4.3 Amp
Current at Max Power (Imp)
13.5 Amp
Efficiency
>94%
Frame Material
>15 micron Anodized Aluminium Alloy
Frequency
Nominal: 50 Hz ±1%
47-53 Hz ±1 Hz
Fuse Rating
50 Amp
Junction Box
Split JB
Material
Front Glass: ARC Coated, Tempered & Low Iron
Maximum System Voltage
1500 V DC
Model
Battery: UIT 2036
PCU: Gamma Plus PCU 2000
Module Efficiency
21.70%
Mounting Holes Pitch
X: 1095 mm
Y: 1000 mm, 1400 mm & 1640 mm
Notes
Images are for Reference Purpose only, Actual Product May Vary
Number of Cells
144
Number of Phases
Single
Open Circuit Voltage (VOC)
50.38 V
Operating Temperature
0-50 deg C
Operating Voltage
24 V
Panel Type
Half Cut Mono PERC
Power
Solar: 1500 W
Power Rating
1500 VA
Protection Class
PCU: IP20
Panel: IP68
Rated Power
555 W
Short Circuit Current (Isc)
14.25 Amp
Technology
MPPT
Temperature Coefficient
Voltage: -0.35%/deg C
Current: 0.1%/deg C
Power: -0.47%/deg C
NOCT: 47+/-2 deg C
Voltage
Input: 30-106 V
Voltage at Max Power (Vmp)
41.12 V
Warranty
Battery: 36+24 Months
PCU: 2 Years
Waveform
Sine Wave
Country of origin
India
Manufacturer Details
Fujiyama Power Systems Pvt Ltd, 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi 110015
Packer Details
Fujiyama Power Systems Pvt Ltd, 53A/6, Rama Road Ind. Area Near Sat Guru Ram Singh Marg Metro Station Near NDPL Grid Office, Delhi 110015
Common/Generic Name
Battery, PCU & Panel
Dimensions LxWxH
21x18x6 cm
Weight
20 kg
Show All Specifications

Product Details

Introducing the UTL UIT 2036 200Ah/12V Tubular Battery, Gamma Plus PCU 2000 1500VA rMPPT Single Phase Offgrid Solar PCU, & 555W Half Cut Mono PERC 144 Cells Solar Panel Combo, the perfect solution for your solar power needs.

This solar combo kit is designed to provide efficient and reliable power generation for your off-grid applications. The UTL UIT 2036 200Ah/12V Tubular Battery offers a high-capacity and long-lasting power source, ensuring uninterrupted power supply for your various devices and appliances.

The Gamma Plus PCU 2000 1500VA rMPPT Single Phase Offgrid Solar PCU features advanced MPPT (Maximum Power Point Tracking) technology, which allows for optimal energy conversion and maximizes power output. Its Sine Wave waveform guarantees stable and clean power supply, protecting your sensitive electronics from damage.

With an operating temperature range of 0-50 degrees Celsius, this solar combo kit is designed to withstand various environmental conditions, making it suitable for use in different climates.

The 555W Half Cut Mono PERC 144 Cells Solar Panel boasts a module efficiency of 21.70%, ensuring high energy conversion and maximum power output. Its efficiency rating of over 94% guarantees reliable performance and efficient energy utilization.

Please note that the images provided are for reference purposes only, and the actual product may vary. Choose UTL as your trusted brand for all your solar power needs.
