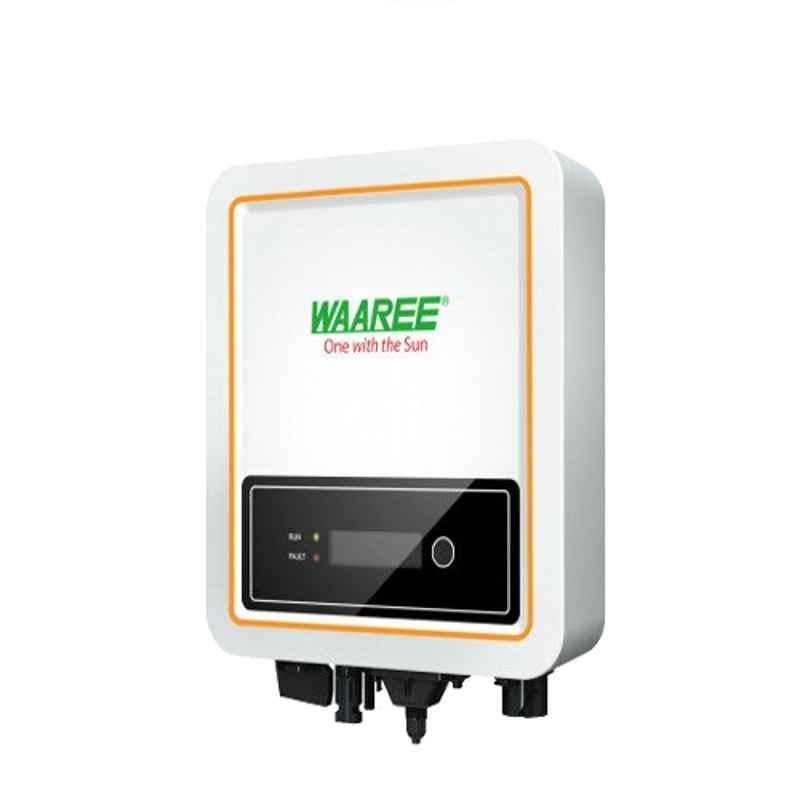

Waaree 2kW Single Phase On Grid Solar Inverter, W1-2K-G3

Name: Waaree 2kW Single Phase On Grid Solar Inverter, W1-2K-G3
Brand: Waaree
SKU: MSNQ94P7N22NK0
Price: 31999 INR
Availability: OutOfStock

₹31,999 (Incl. of all taxes)

₹27,117 + ₹4,882 GST

MRP ₹32,500 1% OFF

AVAILABLE ON REQUEST

Rated Power

2 kW
1 kW
10 kW
15 kW
4.5 kW
6 kW
8 kW

Number of Phases

other
Three Phase

About This Product

Key Features

Compact & Lightweight.
Fanless & Low Maintainence.
Power Factor Adjustable, Built-in DC Switch & Wi-Fi.
Multiple Layer Safety Protection, Suitable for 3 Panel System & Export Control.
Integrated SPDS AC & DC Side & Multiple-Monitoring Method (Wi-Fi/GPRS, RS485 & WLAN).

Show All Key Features

Product Specifications

Brand	Waaree
Altitude	Operating: < 2000 m
Cooling	Natural Convection
Current	Short: 15 Amp
Customer Care Number	1800-2121-321
Dimensions	297x260x118 mm
Display Type	LCD & LED
Efficiency	Euro: 98%
Input Voltage	500 V DC
Interface	RS485,Wi-Fi & GPRS
Item Code	W1-2K-G3
Max efficiency	0.975
Max. Input Current	12 Amp
Mppt Voltage Range	50-500 V Full Load: 200-450 V
Noise Level	< 25 dB
Nominal Output Power	2 kW
Nominal Voltage	Input: 360 V DC
Number of Phases	other
Operating Temperature	-25 to 60 deg C
Output Current	10.6 Amp
Output Frequency	50-60 Hz
Output Power	Apparent: 2200 VA
Output Voltage	Nominal: 220-230 V
Phase	Single Phase
Power	Night Self Consumption: <1
Power Factor	Output: 1 (Adjustable from 0.8 Leading to 0.8 Lagging)
Protection	Anti-Islanding, Input Reverse Polarity, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current, Output Short & Output Over Voltage
Protection Class	IP65
Rated Power	2 kW
Relative Humidity	0-95%
Standards	Grid Regulation: VDE0126-1-1, AS4777.2, EN50438(PL), G83, ERDF-NOI-RES_13E, IEC61727, IEC62116, CEI 0-21, RD 1699:2011, UNE 206006 IN: 2011 & UNE 206007-1IN:2013 Safety Regulation: IEC62109-1&2 EMC: EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-4-16, EN 61000-4-18 & EN 61000-4-29
Start-up Voltage	70 V
Warranty	10 Years
Weight	5.5 kg
Country of origin	India
Manufacturer Details	Success Impex Private Limited, A50/2, MAYAPURI INDUSTRIAL AREA, PHASE 1, SECOND FLOOR, , South West Delhi, Delhi-110064, India , Phone: +91-8448233444
Packer Details	Success Impex Private Limited, A50/2, MAYAPURI INDUSTRIAL AREA, PHASE 1, SECOND FLOOR, , South West Delhi, Delhi-110064, India , Phone: +91-8448233444
Common/Generic Name	On Grid Solar Inverter
Dimensions LxWxH	297x260x118 mm
Weight	5.5 kg

Show All Specifications

Product Details

Upgrade your solar system with the Waaree 2kW Single Phase On Grid Solar Inverter, W1-2K-G3. This innovative product from Waaree features a compact and lightweight design, making it easy to install. With a fanless and low maintenance operation, this inverter is hassle-free. Adjust the power factor to suit your needs and enjoy the convenience of a built-in DC switch and Wi-Fi connectivity. The multiple layer safety protection ensures peace of mind while the integrated SPDS AC and DC side offer additional security. Suitable for a 3-panel system and export control, this inverter is a reliable choice.
