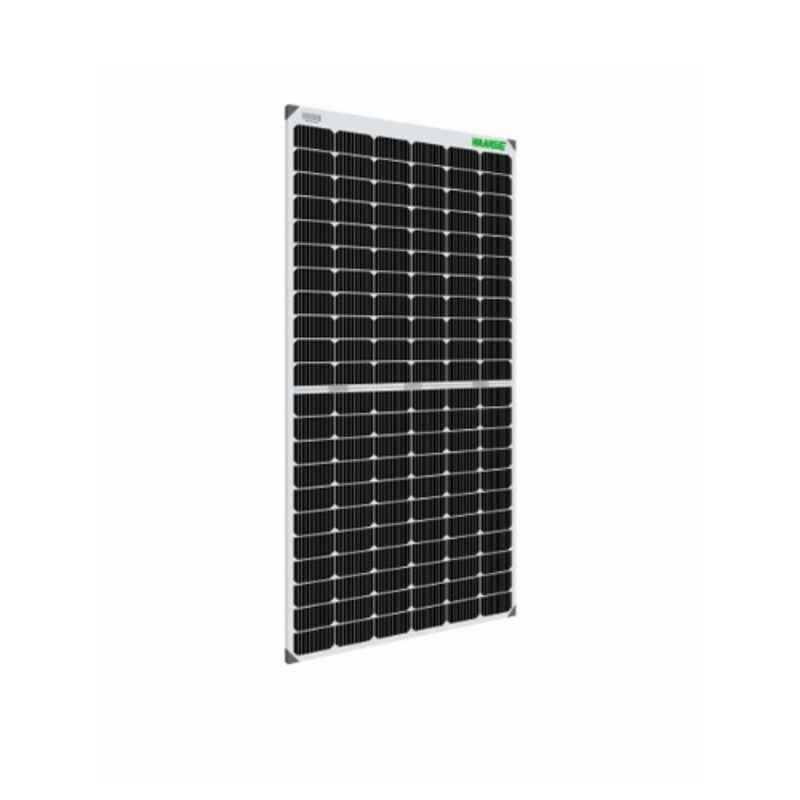

Waaree 520W (Pack of 2) 48.86V 144 Cells Framed Dual Glass Mono PERC Bifacial Solar Module, Bi-55-520

₹26,599 (Incl. of all taxes)

₹25,332 ₹1,267 GST

MRP ₹38,410 30% OFF

AVAILABLE ON REQUEST

Pack of

About This Product

Key Features

  • Highest Reliability & Enhanced Crack tolerant 10BB Module.

  • Module Utilizing Half Cut cell for Optimum Performance.

  • Highly Efficient Mono PERC M10 cells & Highest Commercial Gains, lower LCOE.

  • Split Junction Box improves Heat Dissipation, Increase Shade Tolerance & Best-in-Class Thermal Co-efficients.

Show All Key Features

Product Specifications

Brand
Panel Type
Mono PERC Bifacial
Rated Power
520 W
Cables
Cross-Section: 4 Sqmm
Length: 500mm
Cell Arrangement
12x6 & 12x6
Connector
MC4 Compatible
Encapsulate
PID Free & UV Resistant
Fuse Rating
25 A
Material
Low Iron Glass
Maximum System Voltage
1500 V
Model
Bi-55-520
Module Efficiency
20.10%
Nominal Operating Cell Temperature
43±2
Number of Cells
144
Open Circuit Voltage (VOC)
48.86 V
Operating Temperature
-40 to 85 deg C
Protection Class
IP 68
Short Circuit Current (Isc)
13.49 Amp
Temperature Coefficient
Current: 0.05% per deg C
Voltage: -0.25% per deg C
Power: -0.34% per deg C
Voltage at Max Power (Vmp)
40.99 V
Applications
Residential, Agricultural, Large-Scale Solar Farms & Commercial
Pack of
2
Warranty
Product: 12 Years
Power Output: 27 Years
Country of origin
India
Manufacturer Details
602, Western Edge- I Off. Western Express Highway, Borivali(East) Mumbai - 400066, Maharashtra, India
Packer Details
602, Western Edge- I Off. Western Express Highway, Borivali(East) Mumbai - 400066, Maharashtra, India
Common/Generic Name
Solar Panel
Dimensions LxWxH
226.6x227.2x3.5 cm
Weight
65 kg
Show All Specifications

Product Details

Introducing the Waaree 520W 48.86V 144 Cells Framed Dual Glass Mono PERC Bifacial Solar Module, the perfect addition to your renewable energy setup. This pack of 2 solar panels from the renowned brand Waaree is designed to provide maximum efficiency and durability.

With a rated power of 520W, these solar modules feature a cell arrangement of 12x6 and 12x6, ensuring optimal electricity generation. The panels are suitable for various applications including residential, agricultural, large-scale solar farms, and commercial projects.

Crafted with high-quality materials, these mono PERC bifacial panels offer exceptional performance even in harsh environmental conditions. Operating reliably in temperatures ranging from -40 to 85 degrees Celsius, they are built to withstand extreme climates.

Backed by a 12-year warranty for the product and an impressive 30-year warranty for power output, you can trust in the longevity and reliability of these solar panels. With a short circuit current (Isc) of 13.49 Amp, these panels generate ample energy to meet your power needs.

Invest in the Waaree 520W 48.86V 144 Cells Framed Dual Glass Mono PERC Bifacial Solar Module and harness the power of the sun for a greener future.

Browse through the extensive list of Solar Panels at Moglix. Shop online for other Waaree Solar Panels. available at Moglix in the lowest price range.

Read More

Product Specification Document
