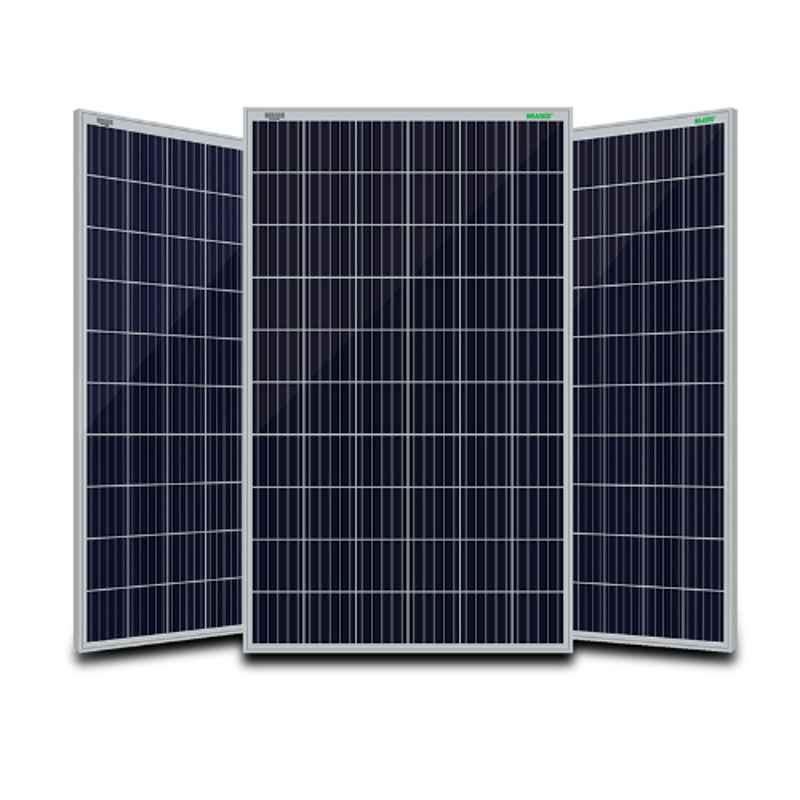

Waaree Aditya 335W 24V Polycrystalline Solar PV Module Panel, WS-335
(7 Reviews)
₹12,349 (Incl. of all taxes)
₹11,760 ₹589 GST
MRP ₹15,000 17% OFF
Moglix Insights
About This Product
Key Features
Easy Installation.
Micro-Cracks are Kept to a Minimum.
Lower BOS Cost & Higher Power Output.
Simplified Wire Fix & Reduced Cable Energy Loss.
Improved Heat Dissipation & Safety.
Salt Mist, Ammonia & Hail Resistant.
PID Resistant with Long Term Reliability.
Superior Module Efficiency as per International Benchmarks.
Sustain Heavy Wind, Snow Loads (2400 Pa & 5400 Pa), Modules Binned by Current to Improve System Performance & Cable Cross Section: 4Sqmm.
Show All Key Features
Product Specifications
Brand | |
Panel Type | Polycrystalline |
Rated Power | 335 W |
Cables | Length: 1200 mm |
Cell Arrangement | 12x6 |
Coating Type | Glass: ARC |
Connector | MC4 |
Current at Max Power (Imp) | 8.80 Amp |
Encapsulate | PID Free & UV Resistant |
Frame Material | Anodized Aluminium Alloy |
Fuse Rating | Series: 16 Amp |
Item Code | WS-335 |
Junction Box | Weatherproof PPO |
Module Efficiency | 0.17 |
Nominal Operating Cell Temperature | 46 ±2 deg C |
Nominal Voltage | 24 V |
Number of Cells | 72 |
Open Circuit Voltage (VOC) | 48.80 V |
Operating Temperature | -40 to 85 deg C |
Protection Class | Connector: IP68 Junction Box: IP67/IP68 |
Rated Power Range | 101-400 W |
Series | Aditya |
Short Circuit Current (Isc) | 9.30 Amp |
Temperature Coefficient | Power: -0.3859%/deg C Voltage: -0.2775%/deg C Current: 0.051%/deg C |
Thickness | Front: 3.2 mm Frame: 40 mm |
Voltage | 1500 V |
Voltage at Max Power (Vmp) | 38.10 V |
Certification and Approval | ISO 9001:2015, ISO 14001:2015 & ISO 45001:2018 |
Customer Care Number | 1800-2121-321 |
Dimensions | 1985x1003x40 mm |
Standards | IEC 61215, IEC 61730, UL61730, IEC TS 62804-1, IEC 62716, IEC -60068-2-68, IEC TS 62782 & IEC 61701 |
Warranty | Performance: 25 Years Product: 10 Years |
Weight | 22.5 kg |
Country of origin | India |
Manufacturer Details | Success Impex Private Limited, A50/2, MAYAPURI INDUSTRIAL AREA, PHASE 1, SECOND FLOOR, , South West Delhi, Delhi-110064, India , Phone: +91-8448233444 |
Packer Details | Success Impex Private Limited, A50/2, MAYAPURI INDUSTRIAL AREA, PHASE 1, SECOND FLOOR, , South West Delhi, Delhi-110064, India , Phone: +91-8448233444 |
Common/Generic Name | Polycrystalline Solar Panel |
Dimensions LxWxH | 1985x1003x40 mm |
Weight | 22.5 kg |
Show All Specifications
Product Details
The Waaree Aditya 335W 24V Polycrystalline Solar PV Module Panel is a great choice for those looking for a reliable and efficient solar panel. With a power output of 335 watts, this panel is perfect for powering homes and businesses. The Waaree solar panel is a high-quality polycrystalline panel that is perfect for those looking to power their home or business with renewable energy. With a module efficiency of 0.17, this panel is sure to help you reduce your carbon footprint. The panel also comes with a performance warranty of 25 years and a product warranty of 10 years, so you can be confident in its quality. If you're looking for high-quality solar panels that will give you the power you need, look no further than our 1500 V solar panels. With a weight of only 22.5 kg, these panels are easy to transport and install, and their dimensions of 1985x1003x40 mm make them a perfect fit for any home or business.
Browse through the extensive list of Solar Panels at Moglix. Shop online for other Waaree Solar Panels. available at Moglix in the lowest price range.
Read More
Waaree Aditya 335W 24V Polycrystalline Solar PV Module Panel, WS-335
Verified Purchase
Rajni
June 29, 2022
Waaree solar panels are a great product
The waaree aditya 335w 24v poly crystalline solar pv module panel is a great product and it has helped me save a lot on my electricity bills. it is very easy to install and use and it comes with a very user-friendly manual. i would definitely recommend this product to anyone looking for a good solar panel.
Verified Purchase
Shiji
June 15, 2022
Love you moglix
Received epic service from the company
Frequently Asked Questions
Displaying Questions 2 / 3
Q1:How long the warranty will be valid for this Solar Panel?
Ans:
The warranty period for this Solar Panel is Product: 10 Years.
Q2:What is the approximate weight of this Solar Panel?
Ans:
The approximate weight of this Solar Panel is 22.5 kg.
VIEW 1 MORE FAQs
