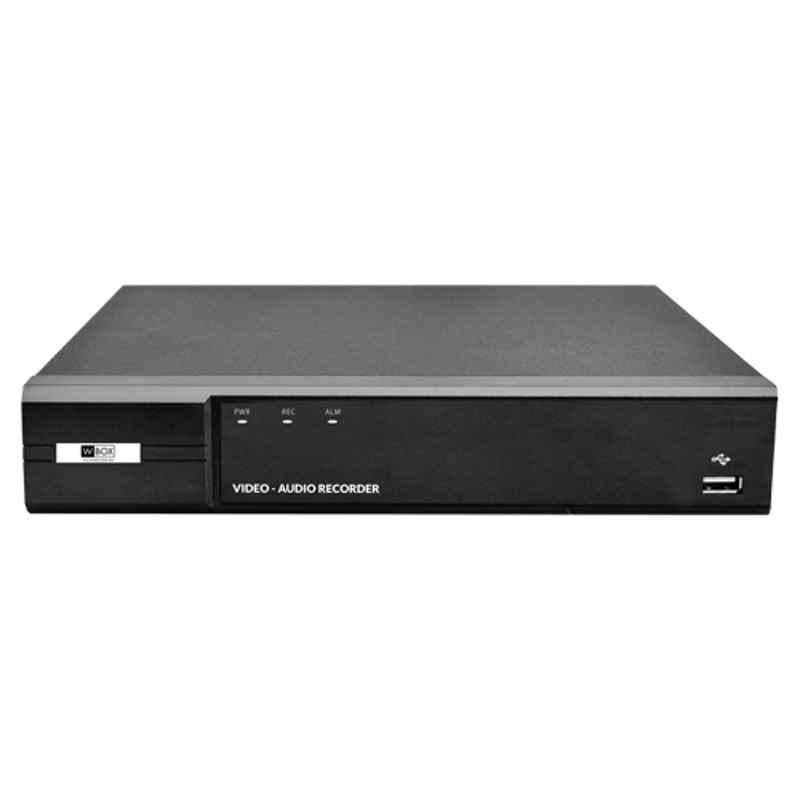

Wbox 4 Channel 5MP NVR, WBC0ECVNM4T1

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Wbox
Additional Details	Audio Output: 1 Channel Input OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording Smart Phone: iPhone, iPad, Android Interoperability: ONVIF 16.12, CGI Conformant Multiple Platform: WEB, VMS, Mobile app Search Mode: Time /Date, Alarm, MD & Exact Search (accurate to second), Video Analytics alarm video search
Audio Bit rate	32 Kbps - 8192 Kbps per Channel
Audio input / Two-way audio in	Reuse audio in/out, RCA
Bandwidth	Incoming & Outgoing: 50 Mbps
Camera	5 MP
Certification	CE, FCC, 15:13252-1 Complaint
Display Type	1/4
Interface	1 HDMI 1 VGA Network: lx R145 10M/100M self adapnve
Item Code	WBC0ECVNM4T1
Network	HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, Dropbox & Google Drive
Number of Channels	4
Number of Users	128 users
Operating Conditions	-10- 60 deg C, 10%- 95% RH
Operating System	Embedded LINUX
Playback	1x5M(Mainstream) 4xd1(Sub Stream) Slice: A Video Is Cut Into Four Equal Parts For Playback. Convenient & Quick View Of Required Video Clips Function: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera
Power Consumption	(without HDD): <24 W
Power Supply	12 V & 2 Amp
Processor Type	Embedded Processor
Recording Mode	Mainstream: 5MP, 4MP, 3MP,1080P, 720P, 960H, D1, CIF(1-25/30fps) Sub Stream: D1/CIF(1-30fps) Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Recording System	Interval: 1 - 60 min (Default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec
Resolution	5 MP, 4 MP, 3 MP, 1080P, 720P, 960H, D1, CIF Display: 1960P, 1920x1080, 1280x1024, 1440x900
Storage	1 SATA Ports, (each max 8TB capacity) Cloud: Support Dropbox & Alarm Storage
Storage Temperature	-20-70 deg C, 0-95% RH
Supported camera Type	4 Channels (5MP, 4MP, 3MP,1080P,1.3MP, 720P)
USB interface	2 USB 2.0
Video Compression	H.265+/H.265/H.264
Country of origin	India
Manufacturer Details	Marketed By
Packer Details	Digimro Distribution (India) Private Limited is at Unit No 305 310, Plot No 9, 10 & 11 Vardhman Trade Centre, Nehru Place, Delhi, New Delhi
Importer Details	Marketed By
Common/Generic Name	NVR
Dimensions LxWxH	2523.54.8 cm
Weight	1500 g

Show All Specifications

Product Details

Introducing the Wbox 4 Channel 5MP NVR, the perfect addition to your surveillance system. This DVR is specifically designed to cater to your security needs, offering top-of-the-line features and functionality. With its embedded LINUX operating system, you can trust that this device will deliver optimal performance and reliability.

The Wbox NVR supports various network protocols including HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, Dropbox, and Google Drive. With these capabilities, you can effortlessly connect and manage your security system remotely.

Powered by a 12V and 2 Amp power supply, this NVR ensures a stable and uninterrupted operation. The 1/4 inch display type provides a clear and detailed view of your security footage. Additionally, it features audio output with 1 channel input, enabling you to hear and record audio alongside video recordings.

The Wbox NVR supports up to 4 channels and is compatible with cameras of various resolutions such as 5MP, 4MP, 3MP, 1080P, 1.3MP, and 720P. With the included 5 MP camera, you can capture high-quality footage with exceptional clarity.

Whether you are securing your home, office, or any other property, the Wbox 4 Channel 5MP NVR is a reliable and efficient choice. With its advanced features, easy setup, and exceptional performance, this DVR is the perfect solution for all your surveillance needs. Trust in the Wbox brand to bring you the latest and greatest in security technology.
