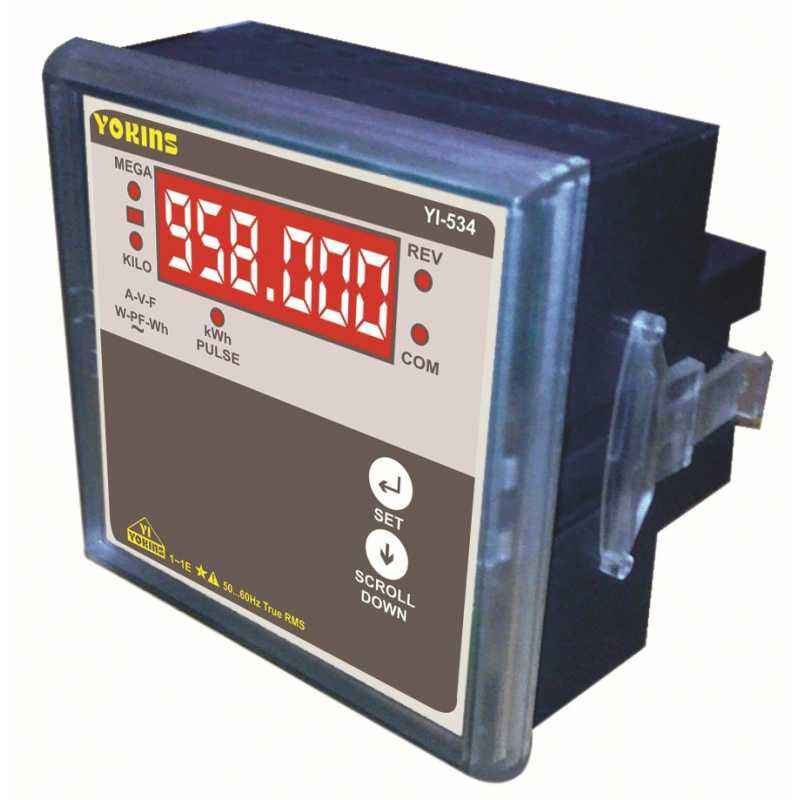

Yokins AC 5A CT Selectable and 500V PT Selectable Digital Three Phase multifunction Energy(kWh) Meter, YI-534

Hover to Zoom

Yokins AC 5A CT Selectable and 500V PT Selectable Digital Three Phase multifunction Energy(kWh) Meter, YI-534

Name: Yokins AC 5A CT Selectable and 500V PT Selectable Digital Three Phase multifunction Energy(kWh) Meter, YI-534
Brand: Yokins
SKU: MSN2QRDGEDL1ML
Price: 2319 INR
Availability: InStock

₹2,319 (Incl. of all taxes)

₹1,965 ₹354 GST

MRP ₹2,750 15% OFF

Buy More & Save More

Qty 2

₹2,301 /pc

16% OFF

Qty 3

₹2,292 /pc

16% OFF

Qty 4 - 5

₹2,284 /pc

16% OFF

Qty 6 - 7

₹2,266 /pc

17% OFF

Qty 8+

₹2,249 /pc

18% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹2,219

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Cash on Delivery

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

Three phase multifunction Energy (kwh) meter used for measuring Active Energy(Wh), Pf, Active Power(kW), Voltage(Line to Line & Line to Neutral), Current, Frequency..
It is a panel mounting meter, to be used in electrical panels or any industry to measure electrical parameters continuously in any circuit or equipment..
Microcontroller based meters with low VA burden.
6 digit seven segment display.
CT primary range 1A to 50kA AC programmable.
CT Secondary range 0.5A to 5A - AC programmable.
PT primary range 50V to 500kV AC programmable.
PT Secondary 50V to 500V AC programmable.
Password protected.
True RMS measurement of parameters.
Auto scaling of parameter values.
Auto/Manual scrolling of parameters.
Three switches for easy onsite programming..
Touch proof voltage & current terminals..
Compact size and light weight..
ABS dust-proof rugged casing..
Watt Hour displayed with Kilo and Mega indication.
Auxiliary Supply: Universal Auxiliary(90-300V AC) Supply (Other supply voltages on demand)..
Current Secondary(5A)..

Show All Key Features

Product Specifications

Brand	Yokins
Accuracy	Class 1.0
Dimensions	96x96x57 mm
Display Digit	6 Digit
Input Voltage	up to 500V
Item Code	YI-534
Items in Pack	1 Piece
Panel Cutout	92x92 mm
Standard	IEC62053-21/22 For Enclosure: IP-20(Back), IP-65(Front)
Warranty	1 Year
Country of origin	India
Manufacturer Details	Selective Engineers, KHASARA NO. 291, GALI NO. 2, VILLAGE SHALIMAR BAGH INDUSTRIAL AREA, Delhi - 110088, , North West Delhi, Delhi-110088, India , Phone: +91-8448233444
Packer Details	Selective Engineers, KHASARA NO. 291, GALI NO. 2, VILLAGE SHALIMAR BAGH INDUSTRIAL AREA, Delhi - 110088, , North West Delhi, Delhi-110088, India , Phone: +91-8448233444
Common/Generic Name	Energy Meter
Dimensions LxWxH	9.6x9.6x11 cm
Weight	32 g

Show All Specifications

Product Details

Yokins AC 5A CT Selectable and 500V PT Selectable Digital Three Phase multifunction Energy(kWh) Meter, YI-534 is a premium quality product from Yokins . Moglix is a well-known ecommerce platform for qualitative range of Process Monitoring Meters. All Yokins AC 5A CT Selectable and 500V PT Selectable Digital Three Phase multifunction Energy(kWh) Meter, YI-534 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Yokins AC 5A CT Selectable and 500V PT Selectable Digital Three Phase multifunction Energy(kWh) Meter, YI-534, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Yokins products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Yokins Process Monitoring Meters .
