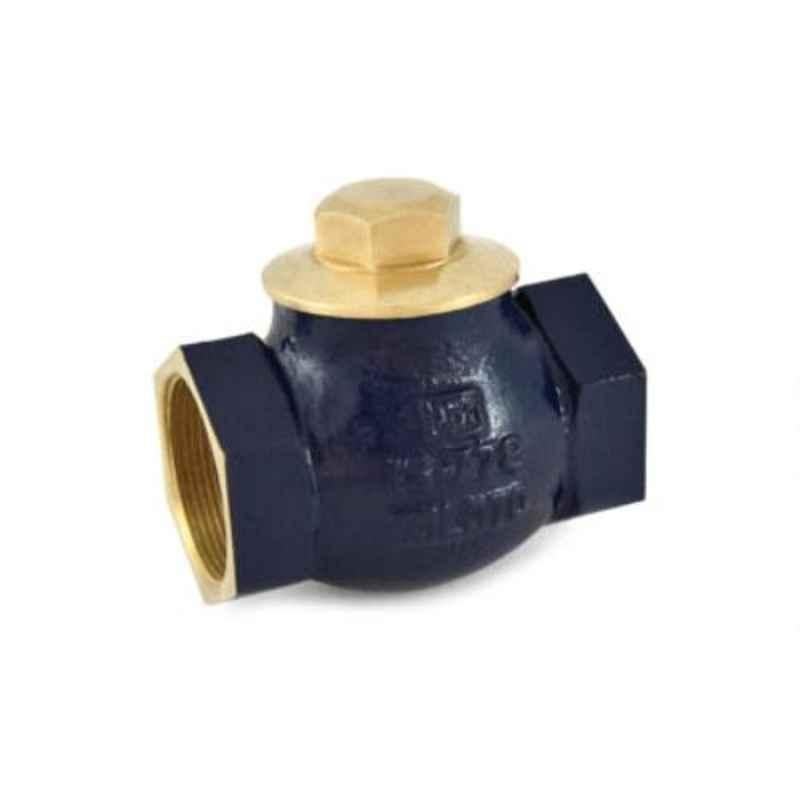

Zoloto 100mm Bronze Horizontal Screwed Check Valve, 1038

Name: Zoloto 100mm Bronze Horizontal Screwed Check Valve, 1038
Brand: Zoloto
SKU: MSNO5WNWREMR51
Price: 17840 INR
Availability: OutOfStock

₹17,840 (Incl. of all taxes)

₹15,117 ₹2,723 GST

MRP ₹25,453 29% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Screwed in Bonnet, Meant for Horizontal Lines Only.
Permits Flow in One Direction & Shuts Automatically if the Flow Reverses.
Metal Disc is Mushroom Shaped with Spherical Seating Surface & Disc is Guided in Body As Well As in Bonnet..

Show All Key Features

Product Specifications

Brand	Zoloto
Working Temperature	45 deg C
Body Material	Bronze
End Connection	Female Ends
Item Code	1038
Material	Disc: Bronze Bonnet: Bronze / Forged Brass O Ring: Nitrile Rubber
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	100 mm
Size (Inch)	4 inch
Suitable For	Water Oil
Testing Pressure	Shell: 1.5 MPa Seat: 0.25 MPa
Type	Screwed
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	99x60x16 cm
Weight	49.2 kg

Show All Specifications

Product Details

The Zoloto 100mm Bronze Horizontal Screwed Check Valve, 1038 is a reliable and durable valve designed for horizontal lines. With a body material of bronze and size of 100mm, this valve is built to last. The Screwed Female Ends are designed to IS 554 / BS 21 / ISO 7 standards, ensuring a secure connection. The valve permits flow in one direction and shuts automatically if the flow reverses. The metal disc is mushroom-shaped with a spherical seating surface, guided in both the body and bonnet for smooth operation. Perfect for applications with a working temperature of up to 45Â°C, this check valve is a practical choice for your plumbing needs.
