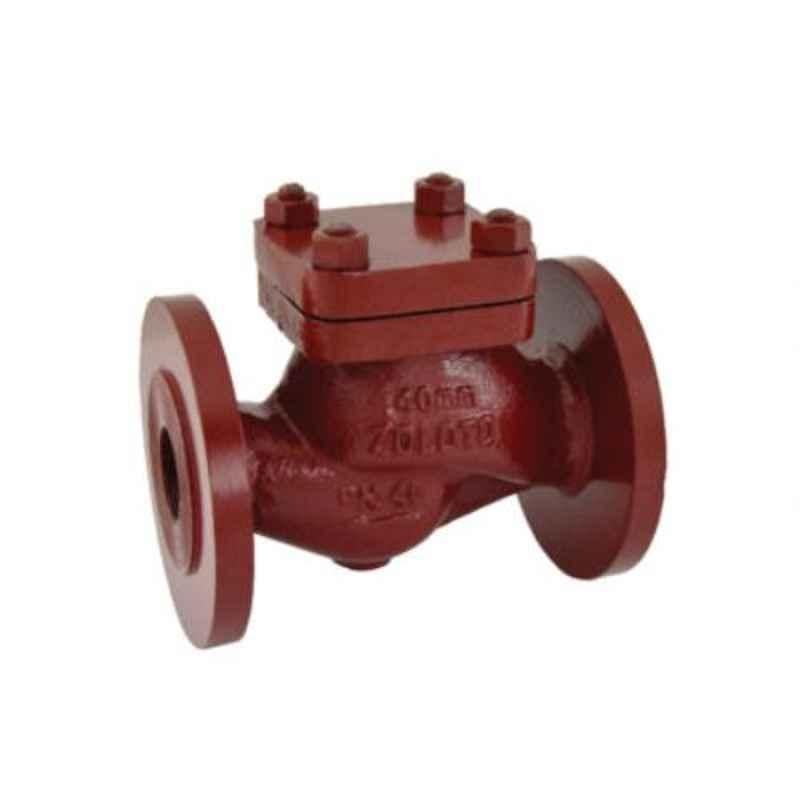

Zoloto 100mm Cast Steel Flanged Horizontal Lift Check Valve, 1072

Name: Zoloto 100mm Cast Steel Flanged Horizontal Lift Check Valve, 1072
Brand: Zoloto
SKU: MSNPKEP2RLND9G
Price: 22080 INR
Availability: OutOfStock

₹22,080 (Incl. of all taxes)

₹18,711 + ₹3,369 GST

MRP ₹31,659 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2545 Pn�40.
Bolted Cover, Straight Pattern.
Minimum Pressure Drop Inside the Body Due to Well Contoured Body Design.

Product Specifications

Brand	Zoloto
Working Temperature	425 deg C
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1072
Material	Body: Cast Steel Body Seat Ring: Stainless Steel Disc Ring: Stainless Steel Disc: Cast Steel Gasket: Spiral Wound S.S. (Type 316) Graphite Filled Cover: Cast Steel Nuts: H.T. Steel Studs: Alloy Steel Body: Cast Steel Screen: Stainless Steel Gasket: Steam Jointing Sheet Bonnet: Cast Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	100 mm
Size (Inch)	4 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:870 psig Seat:580 psig
Type	Flanged
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	132x79x25 cm
Weight	65.7 kg

Show All Specifications

Product Details

The Zoloto 100mm Cast Steel Flanged Horizontal Lift Check Valve, model 1072, is a reliable and durable choice for your industrial needs. This check valve features flanged ends to Din 2545 Pn?40, a bolted cover, and a straight pattern design. With a well-contoured body, this valve ensures minimum pressure drop inside. Suitable for water, oil, and steam applications, this 100mm check valve is constructed from high-quality cast iron and can withstand temperatures up to 425 deg C. Trust Zoloto for top-notch performance and quality in your check valve needs.
