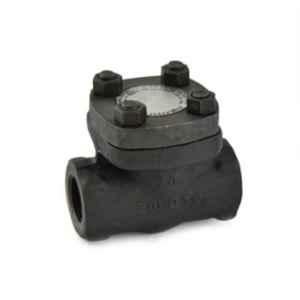

Zoloto 15mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076

Name: Zoloto 15mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076
Brand: Zoloto
SKU: MSNEKPQD4MOY52
Price: 1888 INR
Availability: OutOfStock

₹1,888 (Incl. of all taxes)

₹1,602 ₹286 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Design Standard Api 602 & Bsen Iso 15761.
Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand	Zoloto
Working Temperature	425 deg C
Body Material	Forged Carbon Steel
End Connection	Female Ends
Item Code	1076
Material	Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled Cover: Forged Carbon Steel Stud: Alloy Steel Nut: Alloy Steel Identification Plate: Aluminium Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	15 mm
Size (Inch)	1/2 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Check Valve
Dimensions LxWxH	8x5x14 cm
Weight	4 kg

Show All Specifications

Product Details

Upgrade your industrial operations with the Zoloto 15mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076. This durable check valve is perfect for controlling the flow of water, oil, and steam, with a working temperature of up to 425 deg C. The valve is made from high-quality forged carbon steel, ensuring maximum resistance from rust. Featuring a bolted bonnet, outside screw, yoke type, rising stem, and screwed female ends to BSPT / NPT / socket welded to ANSI B16.11 standards, this valve is a reliable choice for your system. Trust Zoloto for top-notch quality and performance.

Browse through the extensive list of Check Valves at Moglix. Shop online for other Zoloto Check Valves. available at Moglix in the lowest price range.
