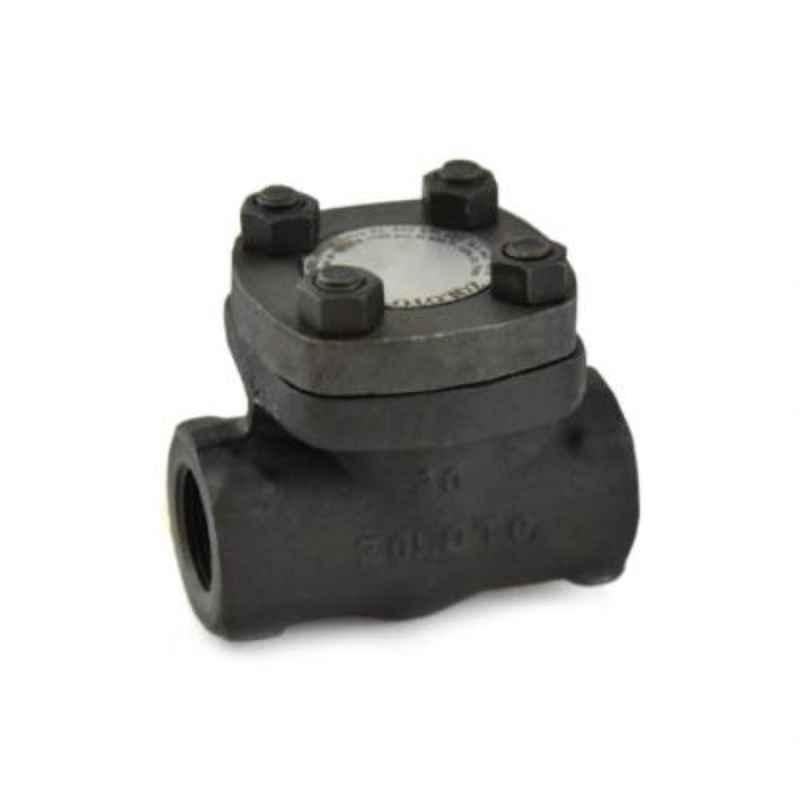

Zoloto 20mm Forged Steel Class-800 Full Bore Horizontal Lift Check Valve, 1076A

Name: Zoloto 20mm Forged Steel Class-800 Full Bore Horizontal Lift Check Valve, 1076A
Brand: Zoloto
SKU: MSN8580VW33492
Price: 2874 INR
Availability: OutOfStock

₹2,874 (Incl. of all taxes)

₹2,437 + ₹437 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Api 602 / Bs En Iso 15761.
Body & Cover Are Phosphated, to Ensure Maximum Protection from Rust.
Bolted Cover & Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Product Specifications

Brand	Zoloto
Working Temperature	425 deg C
Body Material	Forged Carbon Steel
End Connection	Female Ends
Item Code	1076A
Material	Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled Cover: Forged Carbon Steel Stud: Alloy Steel Nut: Alloy Steel Identification Plate: Aluminium Body: Cast Steel Body Seat Ring: Stainless Steel Wedge: Cast Steel Wedge Facing Ring: Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	20 mm
Size (Inch)	3/4 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Thermo-Hygrometer
Dimensions LxWxH	13x8x3 cm
Weight	6.1 kg

Show All Specifications

Product Details

The Zoloto 20mm Forged Steel Class-800 Full Bore Horizontal Lift Check Valve, 1076A is a reliable and durable valve for various applications. This screwed valve is designed to withstand high temperatures up to 425 deg C, making it suitable for use with water, oil, and steam. The body and cover of this valve are phosphated for maximum protection against rust, and it features bolted cover and screwed female ends for easy installation. With a design standard of Api 602 / Bs En Iso 15761, this valve is a premium choice for your industrial needs.
