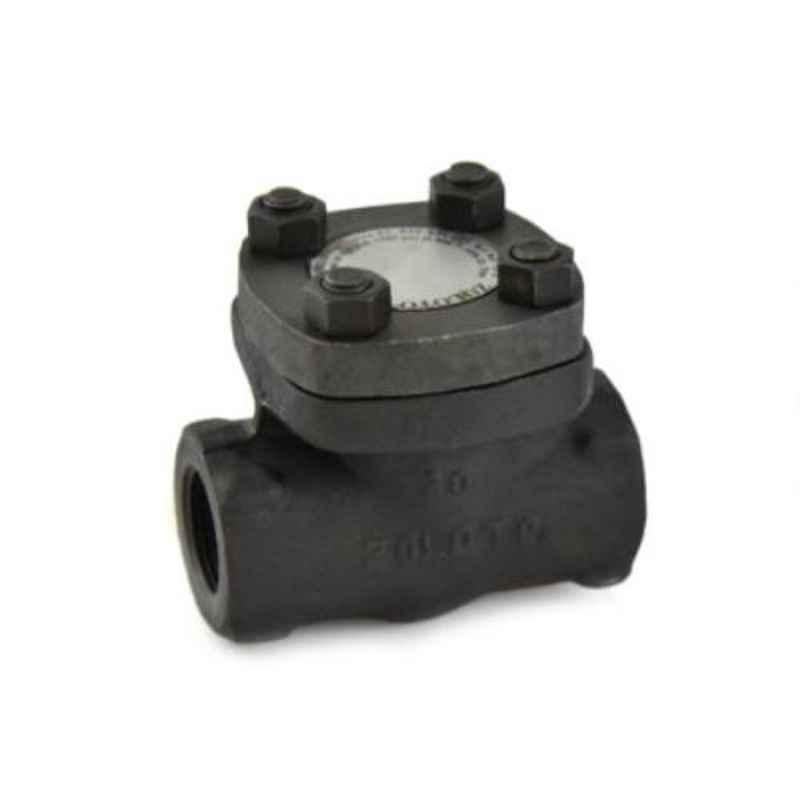

Zoloto 20mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076

Name: Zoloto 20mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076
Brand: Zoloto
SKU: MSNVK138J8J891
Price: 1922 INR
Availability: OutOfStock

₹1,922 (Incl. of all taxes)

₹1,628 ₹294 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Api 602 & Bsen Iso 15761.
Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand	Zoloto
Working Temperature	425 deg C
Body Material	Forged Carbon Steel
End Connection	Female Ends
Item Code	1076
Material	Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled Cover: Forged Carbon Steel Stud: Alloy Steel Nut: Alloy Steel Identification Plate: Aluminium Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	20 mm
Size (Inch)	3/4 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Check Valve
Dimensions LxWxH	9x5x2 cm
Weight	4.1 kg

Show All Specifications

Product Details

The Zoloto 20mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076 is a reliable and durable screw-type valve ideal for a variety of applications. With a size of 3/4 inch and a working temperature of 425 deg C, this valve is designed to handle water, oil, and steam with ease. Its body and bonnet are phosphated for maximum resistance to rust, while the bolted bonnet and rising stem design ensure long-lasting performance. The valve features female ends for easy installation and meets design standards Api 602 & Bsen Iso 15761 for quality assurance. Upgrade your system with the Zoloto Check Valve.
