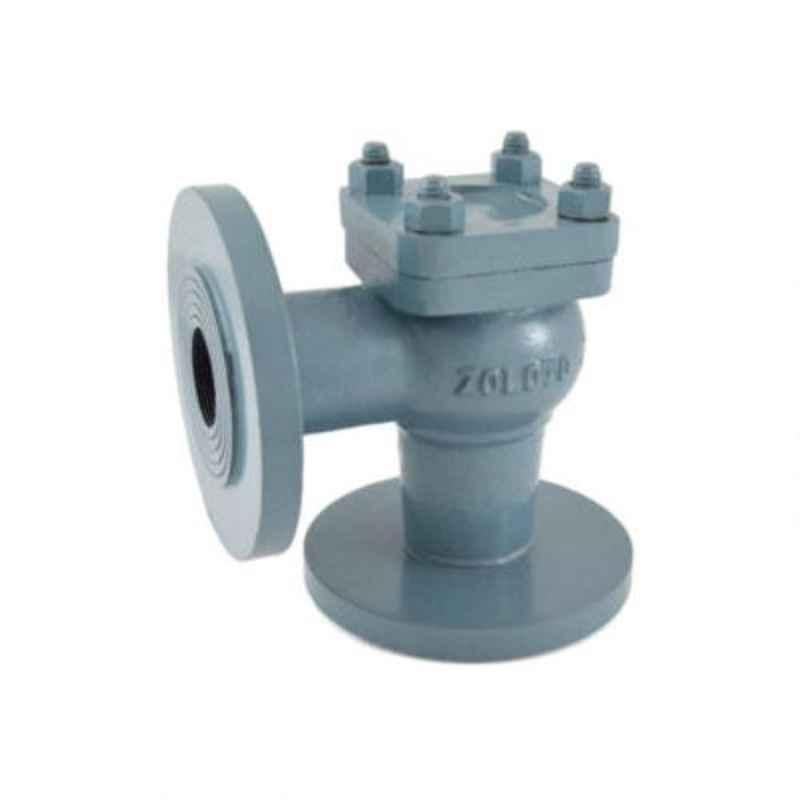

Zoloto 25mm Cast Iron Angle Pattern Flanged Horizontal Lift Check Valve, 1068

Name: Zoloto 25mm Cast Iron Angle Pattern Flanged Horizontal Lift Check Valve, 1068
Brand: Zoloto
SKU: MSN8580VW7N492
Price: 3351 INR
Availability: OutOfStock

₹3,351 (Incl. of all taxes)

₹2,841 ₹510 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2533 Pn 16Rf.
Angle Pattern, Bolted Cover.
Minimum Pressure Drop Inside the Body Due to Streamlined Body Design & Screwed Female Ends to Bspt..

Product Specifications

Brand	Zoloto
Working Temperature	220 deg C
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1068
Material	Body: Cast Iron Body Seat Ring: Stainless Steel Disc Ring: Stainless Steel Disc: Cast Iron Gasket: Steam Jointing Sheet
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	25 mm
Size (Inch)	1 inch
Suitable For	Water Steam
Test Pressure	Shell:370 psig Seat:185 psig
Type	Flanged
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Check Valve
Dimensions LxWxH	14x9x3 cm
Weight	7 kg

Show All Specifications

Product Details

The Zoloto 25mm Cast Iron Angle Pattern Flanged Horizontal Lift Check Valve, 1068 is a high-quality check valve designed for reliable performance in various applications. With its flanged ends to Din 2533 Pn 16Rf, angle pattern, and bolted cover, this valve ensures minimum pressure drop inside the body due to its streamlined design. The 1-inch size and cast iron body make it suitable for water and steam, with a working temperature of up to 220 deg C. The screwed female ends to BSPT provide easy installation and maintenance. Trust Zoloto for durable and efficient valves.
