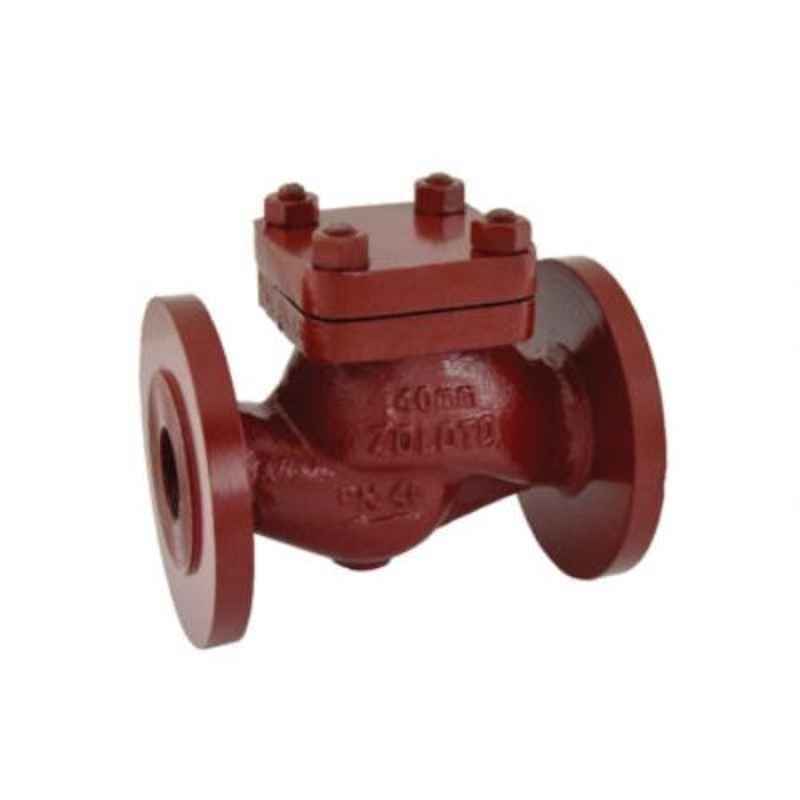

Zoloto 25mm Cast Steel Flanged Horizontal Lift Check Valve, 1072

Name: Zoloto 25mm Cast Steel Flanged Horizontal Lift Check Valve, 1072
Brand: Zoloto
SKU: MSN75DQZ0NRD92
Price: 6038 INR
Availability: OutOfStock

₹6,038 (Incl. of all taxes)

₹5,120 + ₹918 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2545 Pn�40.
Bolted Cover, Straight Pattern.
Minimum Pressure Drop Inside the Body Due to Well Contoured Body Design.

Product Specifications

Brand	Zoloto
Working Temperature	425 deg C
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1072
Material	Body: Cast Steel Body Seat Ring: Stainless Steel Disc Ring: Stainless Steel Disc: Cast Steel Gasket: Spiral Wound S.S. (Type 316) Graphite Filled Cover: Cast Steel Nuts: H.T. Steel Studs: Alloy Steel Body: Cast Steel Screen: Stainless Steel Gasket: Steam Jointing Sheet Bonnet: Cast Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	25 mm
Size (Inch)	1 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:870 psig Seat:580 psig
Type	Flanged
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Butterfly Valve
Dimensions LxWxH	25x15x5 cm
Weight	12.5 kg

Show All Specifications

Product Details

The Zoloto 25mm Cast Steel Flanged Horizontal Lift Check Valve, 1072 is a top-of-the-line check valve designed for high temperature applications up to 425 deg C. With flanged ends, this valve is easy to install and features a bolted cover for secure sealing. Made from durable materials including cast steel and stainless steel, this valve is suitable for use with water, oil, and steam. Its well-contoured body design ensures minimal pressure drop inside the body, making it efficient and effective in various industrial settings. Tested to withstand high pressures, this valve is reliable and built to last.
