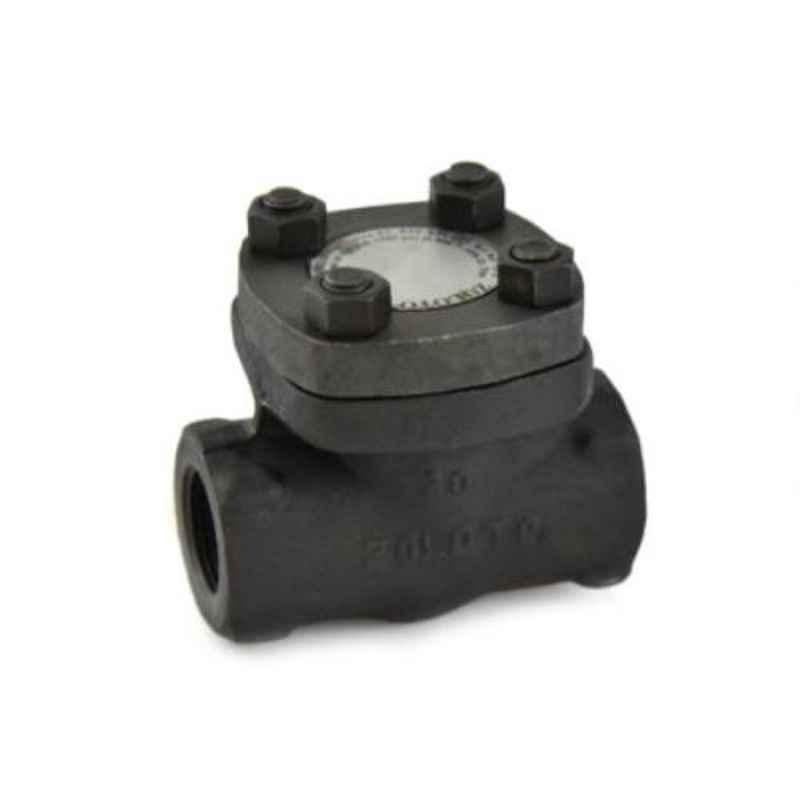

Zoloto 25mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076

Name: Zoloto 25mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076
Brand: Zoloto
SKU: MSN2KM1E3EYX9V
Price: 2875 INR
Availability: OutOfStock

₹2,875 (Incl. of all taxes)

₹2,437 ₹438 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Design Standard Api 602 & Bsen Iso 15761.
Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand	Zoloto
Working Temperature	425 deg C
Body Material	Forged Carbon Steel
End Connection	Female Ends
Item Code	1076
Material	Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled Cover: Forged Carbon Steel Stud: Alloy Steel Nut: Alloy Steel Identification Plate: Aluminium Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	25 mm
Size (Inch)	1 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	13x8x3 cm
Weight	6.1 kg

Show All Specifications

Product Details

The Zoloto 25mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, model 1076, is a trusted choice for industrial applications. This screwed valve is designed to handle high temperatures up to 425 deg C, making it suitable for water, oil, and steam. Its body and bonnet are phosphated for maximum rust resistance, while the bolted bonnet and outside screw design ensure durability. With female ends to BSPT/NPT/socket welded to ANSI B16.11 standards, this valve is reliable and efficient. Trust Zoloto for quality and performance in your piping systems.
