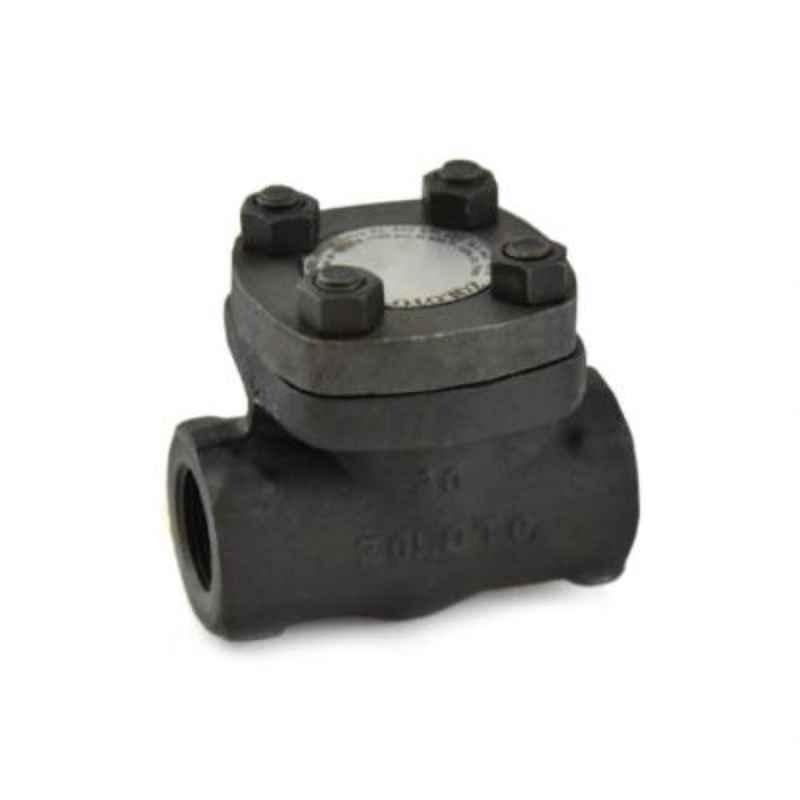

Zoloto 32mm Forged Steel Class-800 Full Bore Horizontal Lift Check Valve, 1076A

Name: Zoloto 32mm Forged Steel Class-800 Full Bore Horizontal Lift Check Valve, 1076A
Brand: Zoloto
SKU: MSNQ94PGQGVEK0
Price: 7069 INR
Availability: OutOfStock

₹7,069 (Incl. of all taxes)

₹5,990 ₹1,079 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Api 602 / Bs En Iso 15761.
Body & Cover Are Phosphated, to Ensure Maximum Protection from Rust.
Bolted Cover & Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Product Specifications

Brand	Zoloto
Working Temperature	425 deg C
Body Material	Forged Carbon Steel
End Connection	Female Ends
Item Code	1076A
Material	Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled Cover: Forged Carbon Steel Stud: Alloy Steel Nut: Alloy Steel Identification Plate: Aluminium Body: Cast Steel Body Seat Ring: Stainless Steel Wedge: Cast Steel Wedge Facing Ring: Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	32 mm
Size (Inch)	1-1/4 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Check Valve
Dimensions LxWxH	30x18x5 cm
Weight	15 kg

Show All Specifications

Product Details

The Zoloto 32mm Forged Steel Class-800 Full Bore Horizontal Lift Check Valve, 1076A is a high-quality check valve designed for reliability and durability. Made from forged carbon steel, this valve is suitable for use with water, oil, and steam. The valve features a design standard of Api 602 / Bs En Iso 15761, with body and cover phosphated for maximum rust protection. The bolted cover and screwed female ends ensure a secure connection. With a working temperature of 425 deg C and a size of 32 mm, this valve is a dependable choice for various applications.
