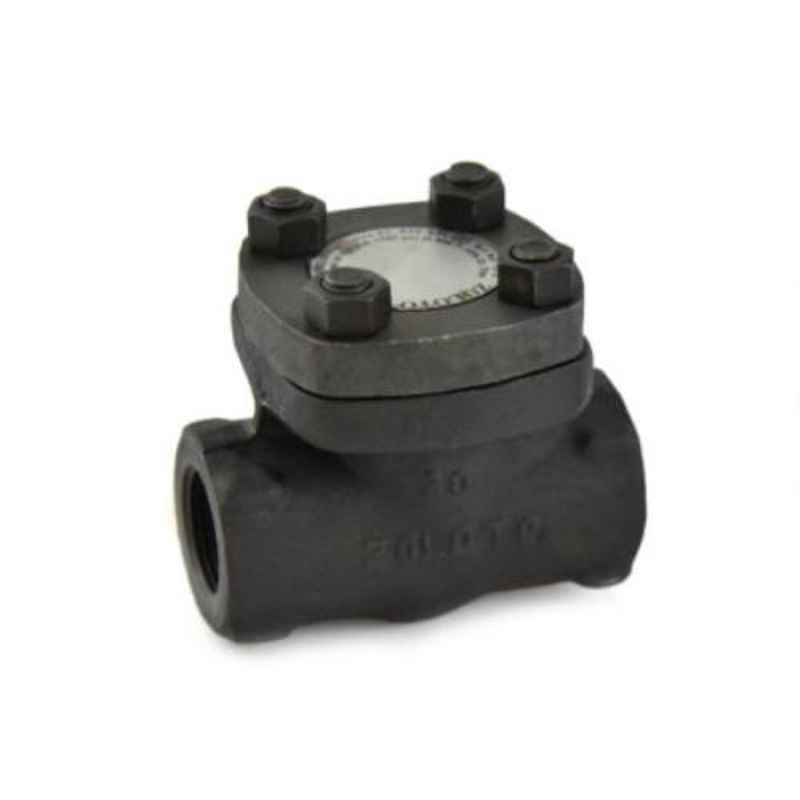

Zoloto 32mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076

Name: Zoloto 32mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076
Brand: Zoloto
SKU: MSN8580VW3G492
Price: 6005 INR
Availability: OutOfStock

₹6,005 (Incl. of all taxes)

₹5,090 ₹915 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Design Standard Api 602 & Bsen Iso 15761.
Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand	Zoloto
Working Temperature	425 deg C
Body Material	Forged Carbon Steel
End Connection	Female Ends
Item Code	1076
Material	Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled Cover: Forged Carbon Steel Stud: Alloy Steel Nut: Alloy Steel Identification Plate: Aluminium Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	32 mm
Size (Inch)	1-1/4 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Globe Valve
Dimensions LxWxH	18x11x4 cm
Weight	8.9 kg

Show All Specifications

Product Details

The Zoloto 32mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076 is a high-quality valve suitable for water, oil, and steam applications. Made of forged carbon steel, this valve is designed to withstand extreme temperatures of up to 425 deg C. With a design standard of API 602 & BSEN ISO 15761, the valve features a bolted bonnet, outside screw, yoke type, rising stem, and screwed female ends to BSPT/NPT/Socket Welded to ANSI B16.11. Trust Zoloto for reliable and durable industrial valves.

Browse through the extensive list of Check Valves at Moglix. Shop online for other Zoloto Check Valves. available at Moglix in the lowest price range.
