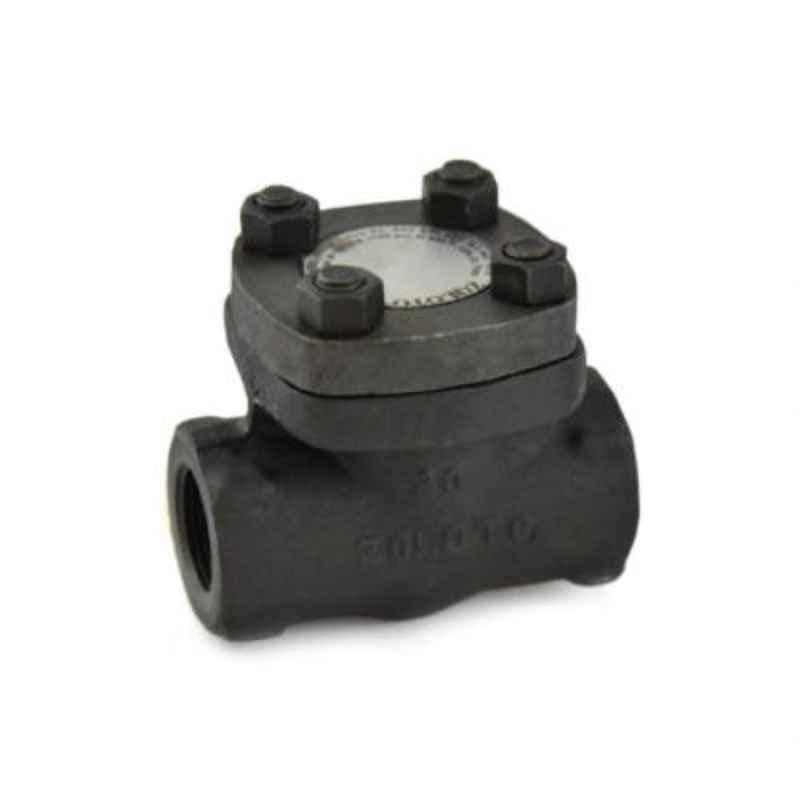

Zoloto 40mm Forged Steel Class-800 Full Bore Horizontal Lift Check Valve, 1076A

Name: Zoloto 40mm Forged Steel Class-800 Full Bore Horizontal Lift Check Valve, 1076A
Brand: Zoloto
SKU: MSN8KLPGEJNN5V
Price: 7878 INR
Availability: OutOfStock

₹7,878 (Incl. of all taxes)

₹6,677 + ₹1,201 GST

MRP ₹10,528 25% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Api 602 / Bs En Iso 15761.
Body & Cover Are Phosphated, to Ensure Maximum Protection from Rust.
Bolted Cover & Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Product Specifications

Brand	Zoloto
Working Temperature	425 deg C
Body Material	Forged Carbon Steel
End Connection	Female Ends
Item Code	1076A
Material	Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled Cover: Forged Carbon Steel Stud: Alloy Steel Nut: Alloy Steel Identification Plate: Aluminium Body: Cast Steel Body Seat Ring: Stainless Steel Wedge: Cast Steel Wedge Facing Ring: Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	40 mm
Size (Inch)	1-1/2 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Check Valve
Dimensions LxWxH	45x27x8 cm
Weight	22.3 kg

Show All Specifications

Product Details

When it comes to ensuring safe and efficient flow control, the Zoloto 40mm Forged Steel Class-800 Full Bore Horizontal Lift Check Valve, 1076A from Zoloto is a top choice in the check valve category. Made of forged carbon steel, this valve is designed to withstand high temperatures up to 425 degrees Celsius, making it ideal for water, oil, and steam applications. With a screw-in type, female end connections, and a bolted cover, this valve meets design standards API 602/BS EN ISO 15761 for maximum protection against rust. Trust in Zoloto for reliable flow control solutions.
