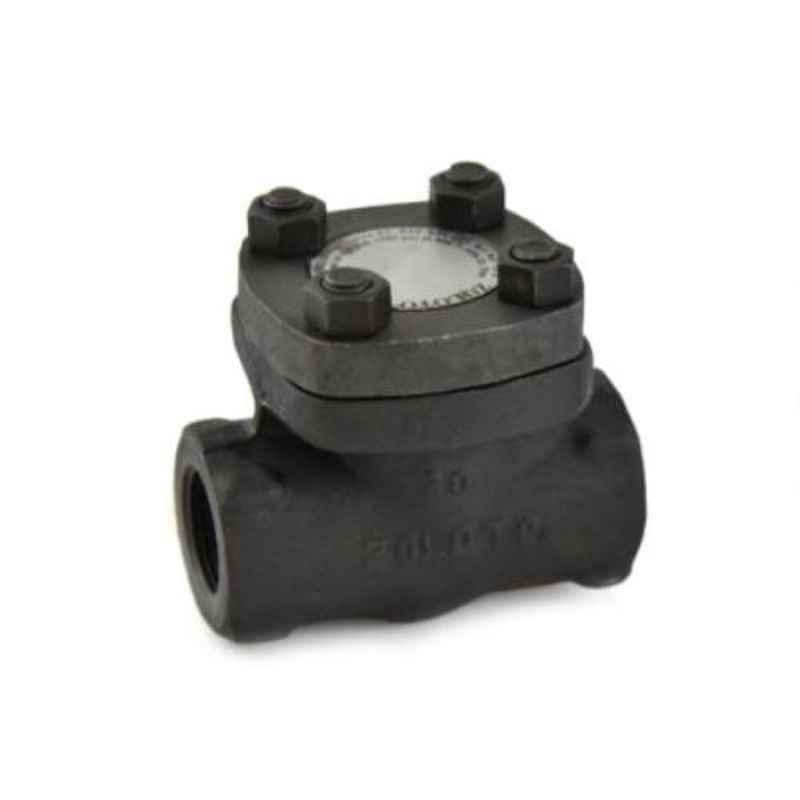

Zoloto 50mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076

Name: Zoloto 50mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076
Brand: Zoloto
SKU: MSNV5OO0VQ4V56
Price: 7880 INR
Availability: OutOfStock

₹7,880 (Incl. of all taxes)

₹6,677 ₹1,203 GST

MRP ₹10,528 25% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Api 602 & Bsen Iso 15761.
Body & Bonnet Are Phosphated, to Ensure Maximum Resistance from Rust.
Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
Screwed Female Ends to Bspt / Npt / Socket Welded to Ansi B16.11.

Show All Key Features

Product Specifications

Brand	Zoloto
Working Temperature	425 deg C
Body Material	Forged Carbon Steel
End Connection	Female Ends
Item Code	1076
Material	Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled Cover: Forged Carbon Steel Stud: Alloy Steel Nut: Alloy Steel Identification Plate: Aluminium Body: Forged Carbon Steel Body Seat Ring: Stainless Steel Disc: Stainless Steel Gasket: Spiral Wound (Type 316) Graphite Filled
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	50 mm
Size (Inch)	2 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:3000 psig Seat:2200 psig
Type	Screwed
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Check Valve
Dimensions LxWxH	45x27x8 cm
Weight	22.3 kg

Show All Specifications

Product Details

The Zoloto 50mm Forged Steel Class-800 Standard Bore Horizontal Lift Check Valve, 1076 is a reliable and durable valve designed for various applications. Made from forged carbon steel, this valve is suitable for water, oil, and steam with a working temperature of 425 deg C. It features a bolted bonnet, outside screw, yoke type, rising stem, and screwed female ends to BSPT / NPT / socket welded to ANSI B16.11 standards. With a design standard of API 602 & BSEN ISO 15761, the body and bonnet are phosphated for maximum resistance to rust. Trust in the quality and performance of Zoloto valves.
