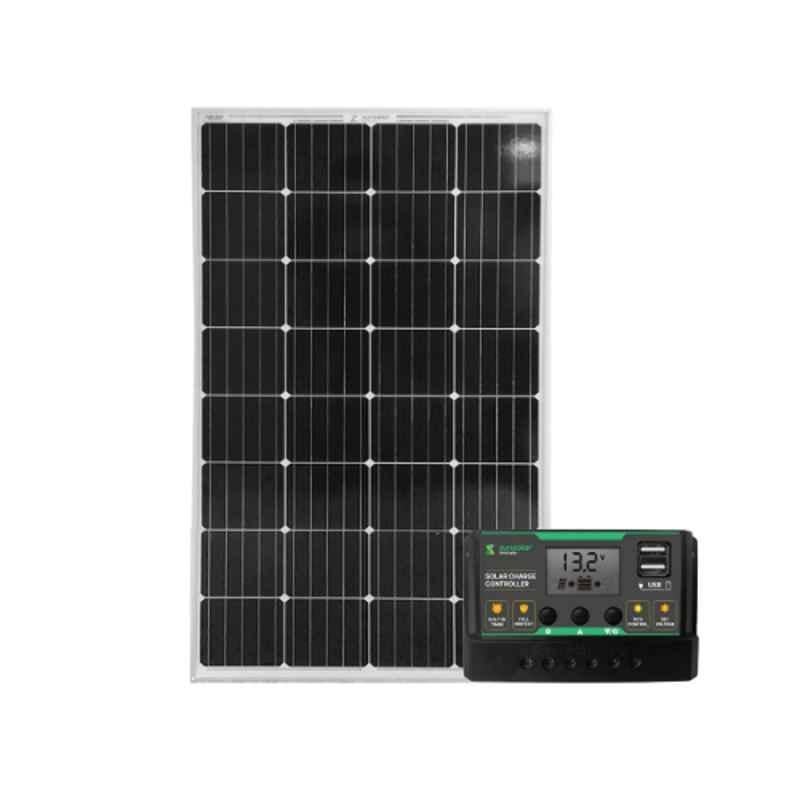

ZunSolar Carat 24 ZR 180W 12V Mono PERC Solar Panel with ZS20 PWM 20A Solar Charge Controller

Name: ZunSolar Carat 24 ZR 180W 12V Mono PERC Solar Panel with ZS20 PWM 20A Solar Charge Controller
Brand: ZunSolar
SKU: MSNM9XY63L0MKJ
Price: 8399 INR
Availability: OutOfStock

₹8,399 (Incl. of all taxes)

₹7,999 ₹400 GST

MRP ₹9,215 8% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Carat 24 Zr Series 180W Mono Perc can Withstand Extreme Weather Conditions & Work Efficiently.
Carat 24 Zr Series 180W Mono Perc Has An Advanced Design that Makes It Waterproof, Firm & Compact.
The Frame of the Panel is Made of Silver Anodized Aluminium with Twin-Wall Profile & the Cell Encapsulant is Made of Eva (Ethylene Vinyl Acetate).
Its Back Sheet is Made of Composite White Film & its Cover Has High Transmission Low Iron Tempered Glass.
Carat24 Zr Series 180W Mono Perc is the Best Choice for Solar Street Lighting, Solar Water Pumping Systems, Solar Water Heaters, Solar Phone Chargers, Portable Solar Panel System & Off-Grid Solar Panel Systems.
Zrs 20A-12/24V Solar Charge Controller is An Ideal Product for Homes Which Already Have An Inverter with Battery Set Installed for Power Backup.
The Intelligent Pwm Charge Mode is Tuned to Enhance Battery Live.
The Inbuilt Overload & the Short Circuit Protection System of Zrs 20A-12/24V Solar Charge Controller Take Care of Every Uncertainty to Ensure the Safety of You & Your Family.
165-Watt 12-Volt Polycrystalline.
Pwm Charge Controller (20A).
High-Conversion Cells.
Panel: 25-Year Performance Warranty.
Charge Controller: 12-Months Warranty.
Robust Design.

Show All Key Features

Product Specifications

Brand	ZunSolar
Battery Voltage	12/24 V
Charge Current	20 Amp
Current	9.91 A at Max Power
Discharge Current	10 Amp
Equalization	B02 Gel 14.2 V
Fuse Rating	20 Amp
Height	Solar Panel: 35 mm Solar Charge Controller: 35 mm
Length	Solar Panel: 1345 mm Solar Charge Controller: 133 mm
Max Solar Input	< 41 V
Maximum System Voltage	1000 VDC
Model No	Solar Panel: Carat 24 ZR Solar Charge Controller: ZS20
Number of Solar Cell Per Module	32
Open Circuit Voltage	22.12 V
Operating Temperature	-35 to 60 deg C
Package Contents	This Combo Consists 1Pc ZunSolar 180 Watt 12 Volt Mono PERC Solar Panel & 1 Pc PWM 20A Solar Charge Controller
Power	180 W
Short Circuit Current	10.37 Amp
Standby Current	< 10 mA
Technology	Passivated Emitter & Rear Cell
Usb Output	5V/2A max
Voltage	at Max Power: 18.01 V
Weight	132 g
Width	Solar Panel: 680 mm Solar Charge Controller: 70 mm
Country of origin	India
Manufacturer Details	ZunRoof Tech Pvt Ltd, 601, PARAS TRINITY SECTOR 63 , Gurgaon, Haryana-122011, India , Phone: +91-8448233444
Packer Details	ZunRoof Tech Pvt Ltd, 601, PARAS TRINITY SECTOR 63 , Gurgaon, Haryana-122011, India , Phone: +91-8448233444
Common/Generic Name	Mono PERC Solar Panel
Dimensions LxWxH	21x18x6 cm
Weight	132 g

Show All Specifications

Product Details

The ZunSolar Carat 24 ZR 180W 12V Mono PERC Solar Panel with ZS20 PWM 20A Solar Charge Controller is a top-of-the-line solar combo kit designed for various solar applications. This kit includes a high-quality mono PERC solar panel that is built to withstand extreme weather conditions and work efficiently. The panel features an advanced design that is waterproof, firm, and compact, making it ideal for solar street lighting, water pumping systems, phone chargers, and off-grid systems. The ZS20 PWM 20A solar charge controller is an intelligent product that enhances battery life and ensures safety with overload and short circuit protection. With a 25-year performance warranty on the panel and a 12-month warranty on the charge controller, this robust kit is a reliable choice for any solar power setup.
