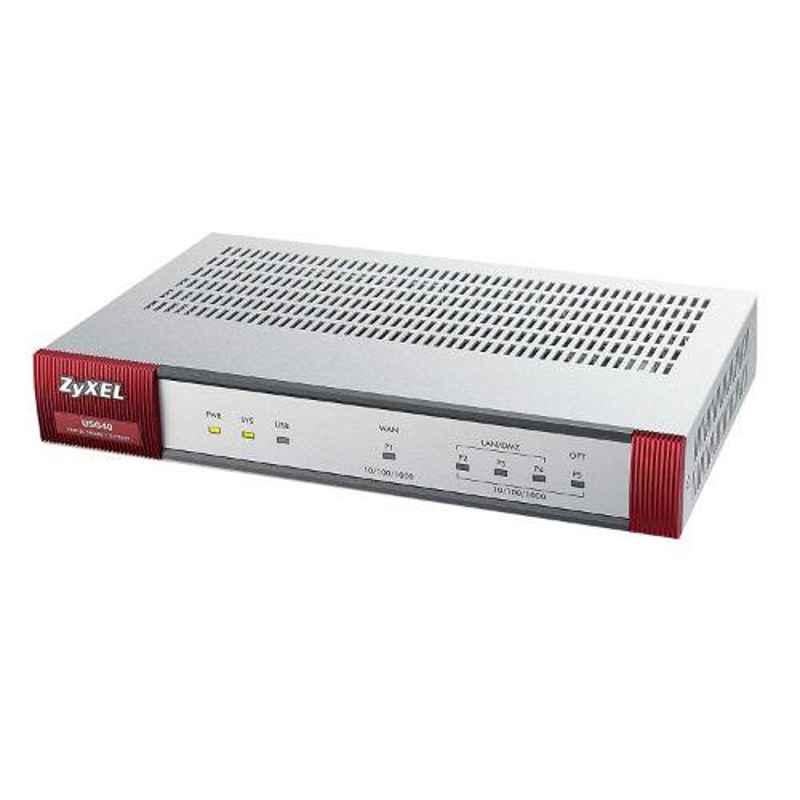

Zyxel Unified Security Gateway, USG40

₹21,299 (Incl. of all taxes)

₹18,050 ₹3,249 GST

MRP ₹37,180 42% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

  • MTBF (hr): 414329.4, Fanless & EZ Mode.

  • VPN: IKEv2, IPSec, SSL, L2TP/IPSec.

  • Amazon VPC, 2-Factor Authentication & Microsoft Azure.

Product Specifications

Brand
Accessories
Power Adapter, DB9- RJ-45 for Console Connection
Capacity
SPI Firewall Throughput: 400MBPS
VPN Throughput: 100MBPS
IDP Throughput: 95MBPS
UTM Throughput (AV & IDP, MBPS): 60
Max. TCP Concurrent Sessions: 50000
Max. Concurrent IPSec VPN Tunnels: 20
Concurrent SSL VPN Users (Default/Max.): 20 / 30
Concurrent Devices Logins (Default/Max.): 64
Certification
EMC: FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A) & BSMI
Safety: LVD (EN60950-1) & BSMI
Current
2 Amp
Dimensions
216x143x33 mm
Heat Dissipation
47.77 BTU/hr
Interface
3xLAN/DMZ, 1xWAN & 1xOPT
VLAN: 8
Item Code
USG40
Operating Humidity
10-90% (Non-Condensing)
Operating Temperature
0-40 deg C
Port
Console: Yes (RJ-45)
Power
14 W
Security
Anti-Virus (AV)
Intrusion Detection & Prevention (IDP) & Application Patrol
Anti-spam
Content Filtering
SecuReporter Premium
Storage Humidity
10-90% (Non-Condensing)
Storage Temperature
-30-70 deg C
USB port
1
Voltage
12 V DC
WLAN
Management: Managed AP Number (Default/Max.): 2/18
Recommend Max. AP in 1 AP Group: 10
Warranty
3 Years
Weight
0.89 kg
Country of origin
India
Manufacturer Details
ALLIN EXPORTERS, PLOT NO. 75, B BLOCK, SECTOR -6, NOIDA , Gautam Buddha Nagar, Uttar Pradesh-201301, India , Phone: +91-8448233444
Packer Details
ALLIN EXPORTERS, PLOT NO. 75, B BLOCK, SECTOR -6, NOIDA , Gautam Buddha Nagar, Uttar Pradesh-201301, India , Phone: +91-8448233444
Common/Generic Name
Security Gateway
Dimensions LxWxH
216x143x33 mm
Weight
890 g
Show All Specifications

Product Details

Introducing the Zyxel Unified Security Gateway, USG40, a must-have item in the realm of IT \u0026 Electronic Accessories. Powered by Zyxel, a trusted brand known for its exceptional quality, the USG40 ensures the utmost security with its Anti-Virus (AV) feature. Weighing only 0.89 kg, this gateway guarantees hassle-free installation and portability. Operating flawlessly within a temperature range of 0-40 degrees Celsius, and with an optimal humidity level of 10-90% (Non-Condensing), the USG40 effortlessly adapts to any environment. Its compact dimensions of 216x143x33 mm allow you to conveniently place it in any desired location. Equipped with 3xLAN/DMZ, 1xWAN, and 1xOPT interfaces, this gateway delivers seamless connectivity. Furthermore, its impressive SPI Firewall Throughput of 400MBPS ensures superior protection against potential threats. Experience the ultimate in security and performance with the Zyxel Unified Security Gateway, USG40.

Browse through the extensive list of IT & Electronic Accessories at Moglix. Shop online for other Zyxel IT & Electronic Accessories. available at Moglix in the lowest price range.
