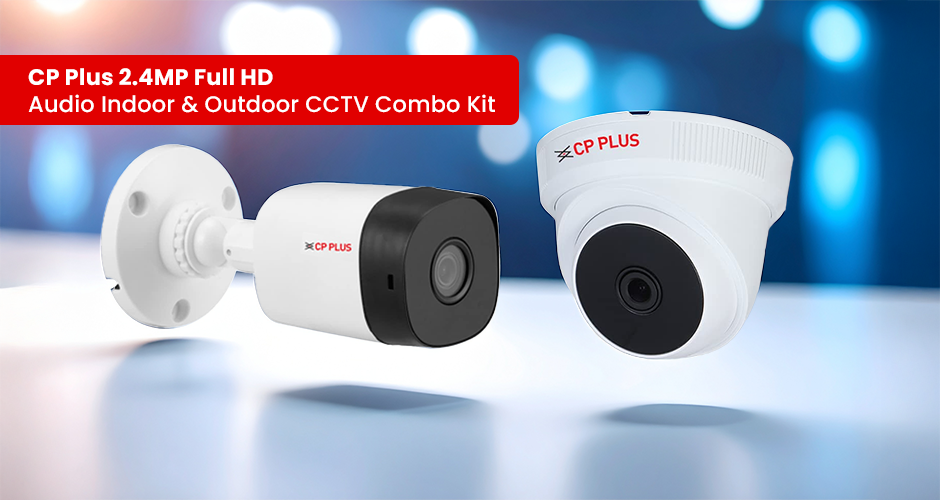

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 4 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Name: CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 4 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
Brand: CP Plus
SKU: MSNEKPQ8YEEY52
Price: 17269 INR
Availability: OutOfStock

₹17,269 (Incl. of all taxes)

₹14,634 ₹2,635 GST

MRP ₹35,719 51% OFF

AVAILABLE ON REQUEST

Storage Capacity

500 GB
1 TB
2 TB
NO HDD

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm).
Max 25/30fps at 2.4MP.
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (2.8mm optional).
IR Range of 20 Mtrs., Smart IR & Support Built-in Mic.
OSD Menu, control Over Coaxial Cable, 2D-DNR.
HD, SD and Two Analog format Output switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic CMS Software: KVMS Pro Mobile Software: iCMOB & gCMOB Record Interval: Default: 60 min, Pre-record: 1-30 sec & Post-record: 10-300 sec Playback Function: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup, Selection & Digital Zoom
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F2.0, 30IRE & 0Lux IR on
Model	Dome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Bullet: 2.7 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	500 GB
Storage Humidity	0-90%
Storage Temperature	Bullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	2.4MP at 25/30fps & 25/30/50/60fps at720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

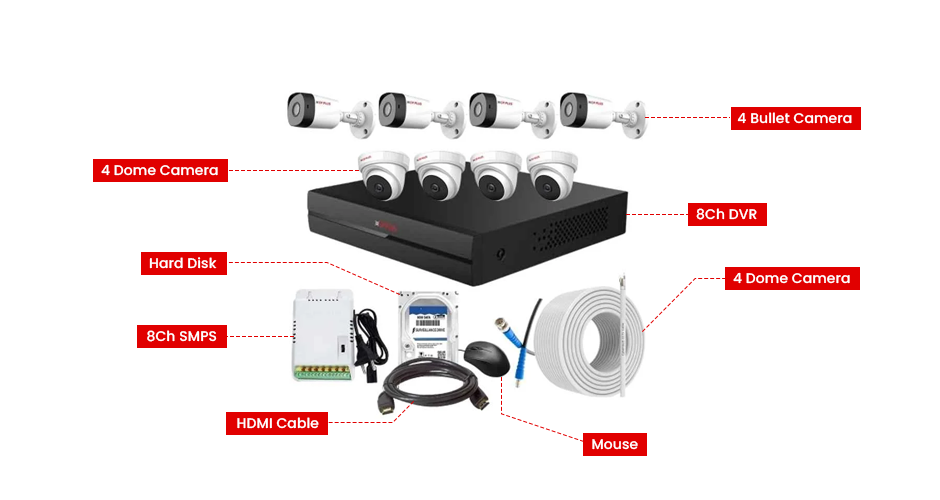

The CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is perfect for those who want a complete security solution for their property. This versatile kit includes an 8Ch DVR, 4 dome cameras, 4 bullet cameras, an 8Ch SMPS, 70m of durable cable, a 500GB HDD, and all the necessary connectors. Specifically designed for both indoor and outdoor use, these cameras capture high-quality video footage in full HD resolution. With a 3.6mm lens size, the cameras provide a wide viewing angle, ensuring maximum coverage. The kit also includes an embedded LINUX operating system for seamless performance. Additionally, the kit is designed to withstand extreme temperatures, with operating temperatures ranging from -40 to 60 degrees Celsius for the cameras and -10 to 45 degrees Celsius for the DVR and SMPS. With an impressive IR range of 20m, these cameras are capable of capturing clear nighttime footage. Easy to install and with a cable length of 70m, this CCTV combo kit from the trusted brand CP Plus is a reliable and effective solution for any surveillance needs.
