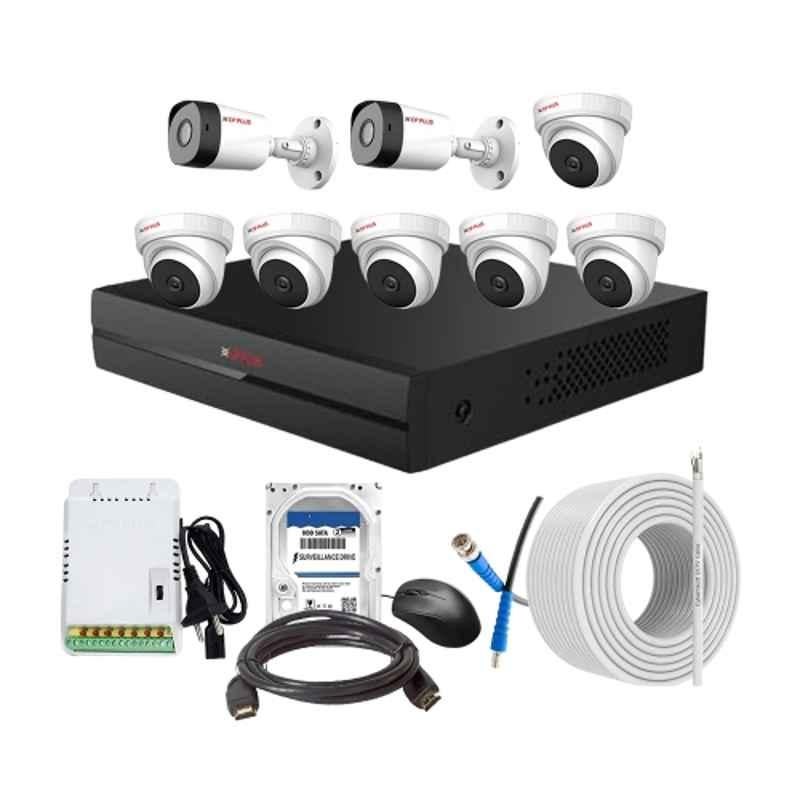

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
(5 Reviews)
₹17,159 (Incl. of all taxes)
₹14,541 ₹2,618 GST
MRP ₹35,369 51% OFF
Moglix Insights
About This Product
Key Features
2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm).
Max 25/30fps at 2.4MP.
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (2.8mm optional).
IR Range of 20 Mtrs., Smart IR & Support Built-in Mic.
OSD Menu, control Over Coaxial Cable, 2D-DNR.
HD, SD and Two Analog format Output switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.
Show All Key Features
Product Specifications
Brand | |
Additional Details | Casing: Plastic CMS Software: KVMS Pro Mobile Software: iCMOB & gCMOB Record Interval: Default: 60 min, Pre-record: 1-30 sec & Post-record: 10-300 sec Playback Function: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup, Selection & Digital Zoom |
Audio Bit rate | 64 Kbps Per Channel |
Cable Length | 70 m |
Camera | 2.4 MP |
Ethernet | 1 RJ-45 Port (100 Mbps) |
Frequency Range | 50-60 Hz |
IR Range | 20 m |
Image Sensor | 1/2.7 inch 2.4 Progressive Scan CMOS |
Input Voltage | 150-240 V AC |
Leakage Current | Max: 0.008 Amp |
Lens Size | 3.6 mm |
Minimum Illumination | 0.04 Lux/F2.0, 30IRE & 0Lux IR on |
Model | Dome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D |
Notes | The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided |
Number of Channels | DVR & SMPS: 8 |
Operating System | Embedded LINUX |
Operating Temperature | -40 to 60 deg C |
Power Consumption | Bullet: 2.7 W DVR: <10 W |
Rated Power | 48 W |
Standards | IP67 |
Storage Capacity | 500 GB |
Storage Humidity | 0-90% |
Storage Temperature | Bullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C |
Video Compression | Instastream/H.265/H.264+/H.264 |
Video Recording | Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps) |
Video Resolution | 1920x1080p, 1280x1024p & 1280x720p |
Video Streaming | 2.4MP at 25/30fps & 25/30/50/60fps at720P |
Voltage | 12 V DC ±30% DVR: 12 V DC |
Warranty | 2 Years |
Working Humidity | DVR: 10-90% SMPS: 5 to 95% |
Working Temperature | DVR & SMPS: -10 to 45 deg C |
Country of origin | India |
Manufacturer Details | Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India |
Packer Details | Aditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India |
Common/Generic Name | CCTV Kit |
Dimensions LxWxH | 25x25x25 cm |
Weight | 2 kg |
Show All Specifications
Product Details
Introducing the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit. This comprehensive kit includes everything you need for top-notch surveillance. With an 8Ch DVR, 6 dome and 2 bullet cameras, you can keep a close eye on your property from every angle. The 3.6 mm lens ensures crystal clear footage, while the 70m cable provides flexibility in camera placement. The 500GB HDD allows for ample storage of video recordings. The embedded LINUX operating system ensures reliable performance, even in extreme temperatures ranging from -40 to 60 deg C. With an IR range of 20m and a working temperature range of -10 to 45 deg C for the DVR and SMPS, this CCTV combo kit is designed to deliver optimum performance and peace of mind. Choose CP Plus for superior quality and reliable surveillance solutions.
Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
Read More
Product Specification Document
From the Manufacturer
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
Verified Purchase
Basha
March 20, 2025
Worth every penny
This is a complete package for a security system. The cables provided are of good quality and the footage is sharp. The DVR is user-friendly and playback is smooth.
Verified Purchase
Ram shri
March 19, 2025
Remarkable performace
I have installed this at my home, and it covers both indoor and outdoor areas well. The bullet cameras are great for outdoor use, and the dome cameras work well indoors.
