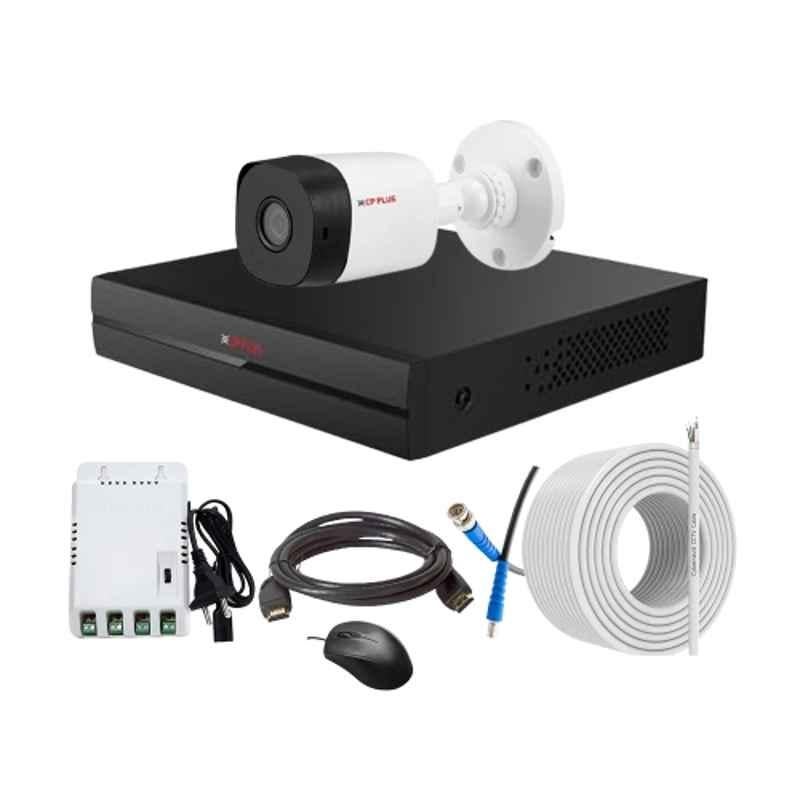

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors

Hover to Zoom

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors

Name: CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors
Brand: CP Plus
SKU: MSN19Z2O6NY353
Price: 5399 INR
Availability: InStock

₹5,399 (Incl. of all taxes)

₹4,575 ₹824 GST

MRP ₹11,919 54% OFF

Storage Capacity

NO HDD
1 TB
2 TB
500 GB

Buy More & Save More

Qty 2

₹5,358 /pc

55% OFF

Qty 3

₹5,338 /pc

55% OFF

Qty 4 - 5

₹5,318 /pc

55% OFF

Qty 6 - 7

₹5,277 /pc

55% OFF

Qty 8+

₹5,237 /pc

56% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹5,299

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP PS CMOS Image Sensor (0.9407 centimetres).
Max. 2MP at 30fps.
DWDR, Day/Night (ICR), 2D DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (6mm optional).
IR Range of 20 Mtrs., Smart IR & IP67.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pr.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic Max Aperture: F1.85 Mount Type: M12
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.7 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Model	Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 4
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Bullet: 2.7 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	NO HDD
Storage Humidity	0-90%
Storage Temperature	DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

The CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is the perfect solution for all your surveillance needs. Designed by the renowned brand CP Plus, this kit provides top-notch security with its high-quality features. The kit includes a 4Ch DVR, 1 bullet camera, 4Ch SMPS, 70m copper cable, and connectors, making it suitable for both indoor and outdoor use. With a lens size of 3.6 mm, this combo kit offers clear and crisp images. The 70m cable length ensures seamless connectivity between the camera and the DVR. Operating on an input voltage of 150-240 V AC and embedded with LINUX operating system, this kit guarantees a reliable and efficient performance. With a working temperature ranging from -10 to 45 deg C for the DVR and SMPS, and an operating temperature ranging from -40 to 60 deg C, you can trust this kit to perform flawlessly even in extreme conditions. The IR range of 20m allows for excellent night vision, capturing every detail in low-light scenarios. Overall, the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit is a reliable and high-performing choice that ensures the safety and security of your premises.

Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
