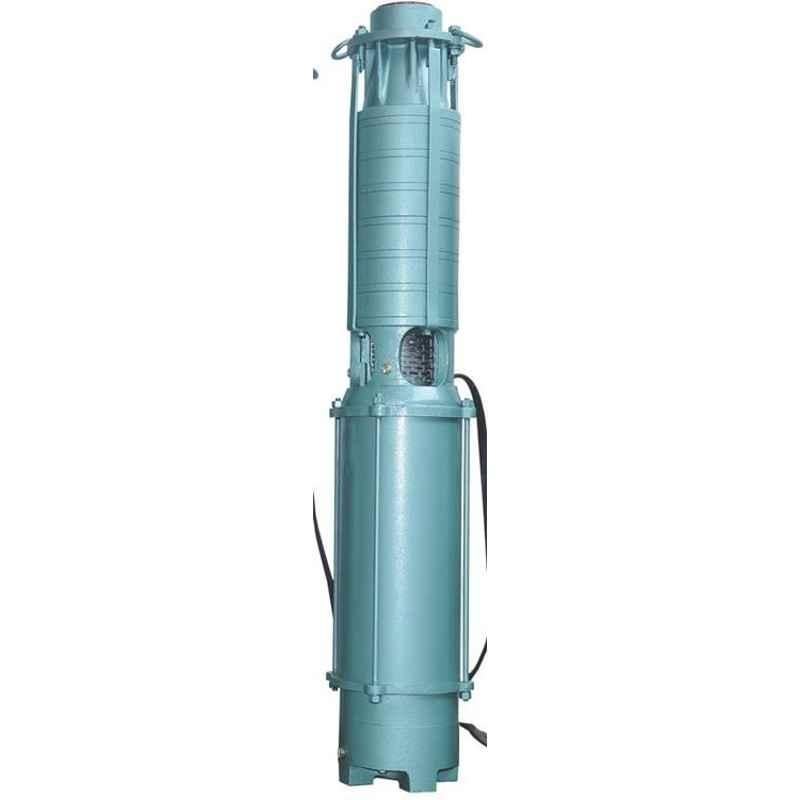

Kirloskar JVSA-1004 10HP Vertical Openwell Submersible Pump, T12861001151

Name: Kirloskar JVSA-1004 10HP Vertical Openwell Submersible Pump, T12861001151
Brand: Kirloskar
SKU: MSN19Z2M00VN53
Price: 60048 INR
Availability: OutOfStock

₹60,048 (Incl. of all taxes)

₹50,888 ₹9,160 GST

MRP ₹98,528 39% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

No Need of Priming & Foot Valve.
Designed for Underwater Applications.
Design to Prevent Overloading & Motor Burnout.
CED Coated Cast Iron Components for Rust Free & Longer Life.
Easy Installation: Foundation & Insulation Platform or Pump House not Required.

Show All Key Features

Product Specifications

Brand	Kirloskar
Applications	Pumping Water from Wells & Water Tanks, Water for Gardening, Sprinklers & Conventional Irrigation
Body Material	Stainless Steel
Casing Material	Cast Iron
Coating	CED (Cathodic Electro-Deposition)
Customer Care Number	1800-10-34443
Delivery Size	80 mm
Discharge Range	120-960 lpm
Head Range	14-139 m
Impeller Material	Stainless Steel
Item Code	T12861001151
Model	JVSA-1004
Motor Power	10 HP
Mounting type	Vertical
Number of Stages	4
Phase	Three Phase
Power Rating	7.5 kW
Series	JVS
Shaft Material	Stainless Steel
Voltage	200-440 V
Warranty	1 Year
Country of origin	India
Manufacturer Details	Kirloskar Brothers Limited, Kirloskar Brothers Limited: Udyog Bhavan, Tilak Road, Pune(Maharashtra)- 411002, Ph no: 18001034443
Packer Details	Motor Sales Agency: 1524, Farash Khanna, Ajmeri Gate, Delhi-110006, Ph- 01140159722
Common/Generic Name	Submersible Pump
Dimensions LxWxH	62.5x11x23.5 cm
Weight	449 g

Show All Specifications

Product Details

Pumps play a major role in pumping up the fluids. Kirloskar JVSA 1004 10HP Vertical Openwell Submersible Pump, T12861001151 is an ideal choice when you are looking for an efficient one. It has a head range of 14 139 m. This is a Three Phase pump. This submersible pump is connected with motors for proper ejacuation of water. This pump is known for its durability and high performance. These pumps are equipped with 120 960 lpm of flow rate. This pump is meant to be installed Vertically. The submersible pump is very compact, thus the installation process gets easy. Moreover, it is made from premium quality materials. This pump uses 200 440 V of power to operate. This pump is certified and has passed all quality tests. Kirloskar brings you one of the best submersible pump available in the market.
