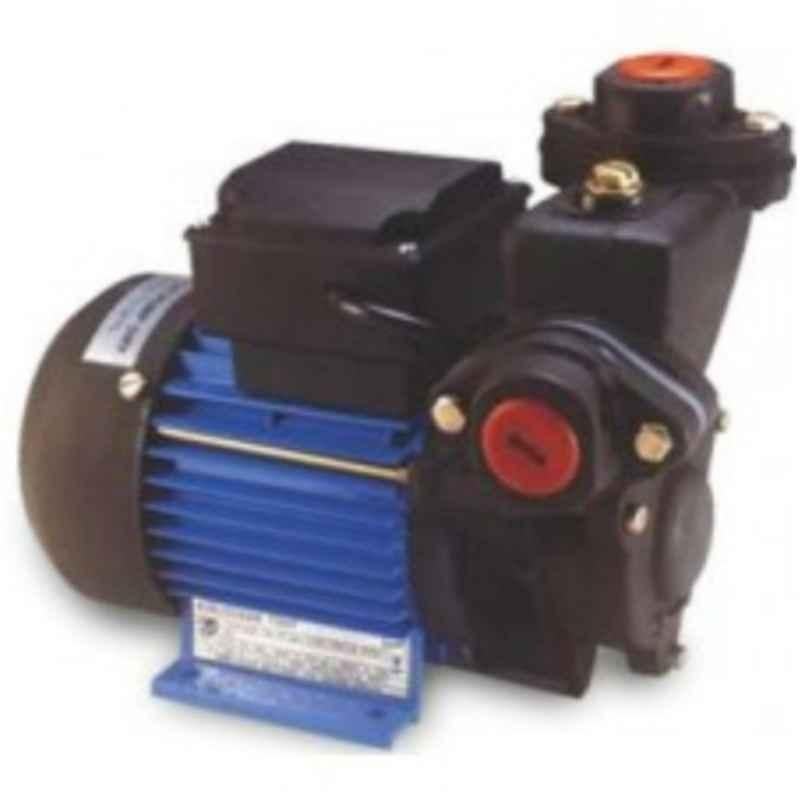

Kirloskar Tiny 0.25HP Self Priming Monoblock Pump

Name: Kirloskar Tiny 0.25HP Self Priming Monoblock Pump
Brand: Kirloskar
SKU: MSNG9VNZ6246KP
Price: 11770 INR
Availability: OutOfStock

₹5,885 (Incl. of all taxes)

₹4,987 ₹898 GST

MRP ₹6,195 5% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Aluminium Extruded Motor Body for Better Heat Dissipation & Corrosion Resistance.
Motor Can Withstand Wide Voltage Fluctuations, 7.5m Self Priming, Fitted with Thermal Overload Protector.
Prevents Motor Burning at Lower Voltage, Totally Enclosed Fan Cooled Motor, No Entry of Dust & Moisture, Capacitor Start & Run Motor with IP Protection, Double Shielded Ball Bearing & Needs No External Lubrication.

Product Specifications

Brand	Kirloskar
Delivery Size	19 mm
Motor Power	0.25 HP
Power Rating	0.18 kW
Suction Size	19 mm
Discharge Range	2000 - 300 lph
Head Range	3 - 24 m
Insulation Class	Class B
Model	Tiny
Protection Class	IP 44
Shaft Material	Carbon Steel
Voltage	180-240 V
Applications	Bungalows, Hospitals, Garages, Industries, Small Fountains & Solar Heating System
Casing Material	Cast Iron
Current Rating	2 Amp
Motor Winding	Aluminium
Phase	Single Phase
Manufacturer Details	Kirloskar Brothers Limited, Kirloskar Brothers Limited: Udyog Bhavan, Tilak Road, Pune(Maharashtra)- 411002
Packer Details	Kirloskar Brothers Limited, Kirloskar Brothers Limited: Udyog Bhavan, Tilak Road, Pune(Maharashtra)- 411002
Common/Generic Name	Monoblock Pump
Dimensions LxWxH	23.5x21x15 cm
Weight	7 kg

Show All Specifications

Product Details

The Kirloskar Tiny centrifugal pump is a single phase pump that delivers consistent and reliable performance. Its compact size makes it ideal for use in small areas without sacrificing power. The pump has a power rating of 0.18 kW and a motor power of 0.25 HP, ensuring that it can handle a variety of pumping tasks with ease. This centrifugal pump also boasts an impressive discharge range of 2000 - 300 lph and a head range of 3 - 24 m, which allows for efficient and effective pumping. The delivery size of 19 mm and suction size of 19 mm make it easy to install and operate. In terms of protection, the Kirloskar Tiny pump has an IP 44 protection class, ensuring that it is resistant to dust and water ingress. Additionally, the pump has an insulation class of Class B, providing further safety to users.
