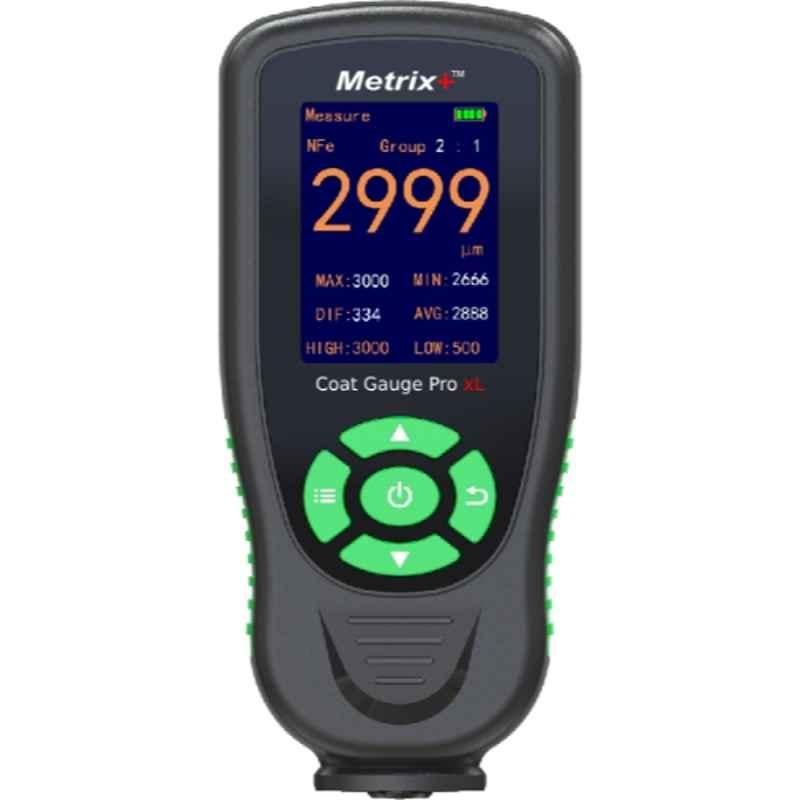

Metrix+ 3000um Coating Thickness Gauge, Coat Gauge Pro XL

Name: Metrix+ 3000um Coating Thickness Gauge, Coat Gauge Pro XL
Brand: Metrix+
SKU: MSN153V3XP2YK3
Price: 15340 INR
Availability: OutOfStock

MRP ₹15,340 (Incl. of all taxes)

₹13,000 ₹2,340 GST

AVAILABLE ON REQUEST

About This Product

Key Features

High Measuring Range up to 3000 um.
Compact, Ergonomic, Integrated Probe Design.
Statistics Display with Data Storage in Batch Structure.
Galvanized Plating Detection, Non-Metallic & Over-Range Prompts.
Negative Dot-Matrix Colour Display for Better Readability at All Angles.
Metal Putty Detection & Notification, which May Affect Thickness Measurements.
Inbuilt Battery with Type-C Charging & On-Screen Guide for Calibration Process.
Compact, Ergonomic, Integrated Probe Coating Thickness Meter with Measuring Range up to 3000um & Data Storage with Statistics Display.

Show All Key Features

Product Specifications

Brand	Metrix+
Accuracy	0-1000 um: ± (3% + 1 um) >1000 um: ± (5% + 1 um)
Additional Details	Thickness of Substrate: 0.40 mm
Applications	Designed for Measuring the Thickness of Paint, Galvanized Layer, Chrome Layer, Anodized Layer, Lacquer, Epoxy, Powder Coatings, Other Electroplating on Ferrous Substrates (Iron) & Non-Ferrous Substrates (Aluminium)
Calibration	Zero Calibration & Multi-Points Calibration
Concave Radius	5 mm
Convex Radius	5 mm
Humidity	20-90% RH
Measuring Principle	Magnetic Induction (F) & Eddy Current (NF)
Measuring Range	0-3000 um
Minimum Measuring Area	6x6 mm
Model	Coat Gauge Pro XL
Power Supply	In-Built Battery with Type C Charging
Resolution	0.1 um (0-99.9 um) 1 um (> 100 um)
Storage	8 Data x 10 Groups Storage with Statistics of Each Group
Temperature	-20 to 40 deg C
Country of origin	India
Manufacturer Details	Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001
Packer Details	Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001
Common/Generic Name	Thickness Gauge
Dimensions LxWxH	12x5.5x2.3 cm
Weight	0.175 kg

Show All Specifications

Product Details

Introducing the Metrix+ 3000um Coating Thickness Gauge, Coat Gauge Pro XL, a cutting-edge measuring tool designed for professionals in the painting and coating industry. This must-have instrument is part of our extensive line of measuring tools, known for their precision and reliability.

The Metrix+ 3000um Coating Thickness Gauge is the perfect companion for tasks requiring accurate and consistent measurements of various coatings. With its wide range of applications, this gauge is specifically built to measure the thickness of paint, galvanized layer, chrome layer, anodized layer, lacquer, epoxy, powder coatings, and other electroplating on both ferrous substrates (iron) and non-ferrous substrates (aluminium).

Equipped with an in-built battery and Type C charging, the Metrix+ 3000um Coating Thickness Gauge offers a convenient and hassle-free power supply. Say goodbye to carrying around extra batteries! Additionally, its compact design and lightweight construction make it extremely portable, allowing you to take precise measurements on the go.

Unmatched in accuracy and efficiency, this gauge features a minimum measuring area of 6x6 mm, ensuring precise and reliable readings every time. It also boasts a convex radius of 5 mm, enabling you to measure curved surfaces with ease.

The Metrix+ 3000um Coating Thickness Gauge, model Coat Gauge Pro XL, is the epitome of quality and performance. With its exceptional features, this gauge is a must-have for professionals in the painting, coating, and automotive industries. Say goodbye to guesswork and make your measurements with confidence using the Metrix+ 3000um Coating Thickness Gauge.
