What material is used for the conductor?

It uses a copper conductor with PVC insulation, providing an insulated wire for suitable electrical wiring applications.

Is the wire flame retardant?

Yes, the wire has flame-retardant PVC insulation, which helps slow down the spread of fire along the insulated wire.

How does the PVC insulation protect the wire?

The PVC coating covers the copper conductor and helps prevent direct contact with the conductive part during normal handling and use.

Home
Electricals
Wires & Cables
House Wires

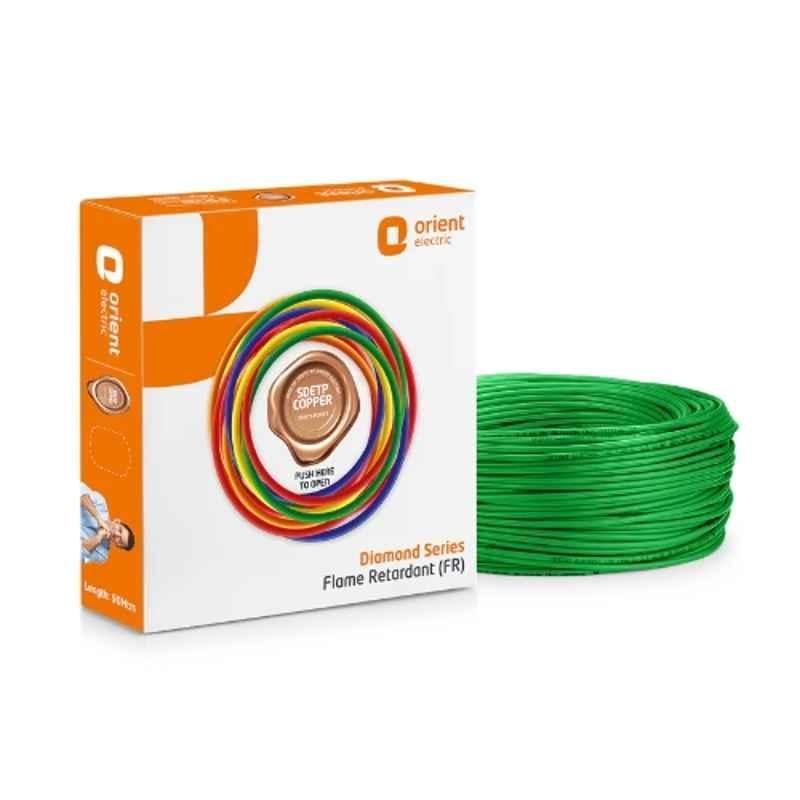

Orient Diamond 10 Sqmm Green PVC Insulated Copper Conductor Flame Retardant Wire, 711FRC5GR1000D, Size: 90 m

Orient Diamond 10 Sqmm Green PVC Insulated Copper Conductor Flame Retardant Wire, 711FRC5GR1000D, Size: 90 m

Hover to Zoom

Orient Diamond 10 Sqmm Green PVC Insulated Copper Conductor Flame Retardant Wire, 711FRC5GR1000D, Size: 90 m

Name: Orient Diamond 10 Sqmm Green PVC Insulated Copper Conductor Flame Retardant Wire, 711FRC5GR1000D, Size: 90 m
Brand: Orient
SKU: MSN4K6YO77L39Q
Price: 18029 INR
Availability: OutOfStock
Rating: 4.67 (3 reviews)

4.7

(3 Reviews)

₹18,029 (Incl. of all taxes)

₹15,278 + ₹2,751 GST

MRP ₹31,882 43% OFF

AVAILABLE ON REQUEST

Size(Cross Sectional Area)

10 Sqmm
0.75 Sqmm
1 Sqmm
1.5 Sqmm
2.5 Sqmm
4 Sqmm
6 Sqmm

Colour

Green
Black
Blue
Grey
Red
White
Yellow

About This Product

Key Features

Flexible & Low Power Loss- Class 5 Copper Conductor with Uniform Bunching Provides Flexibility and Helps Reduce Power Loss.
99.97% Pure Copper- Electrolytic-Grade Copper Offers 102% Conductivity for Efficient Current Flow, Safety and Reliable Performance.
Double Insulation & Flame Retardant- Virgin PVC Double Insulation and FR Properties Improve Electrical Safety and Help Resist Fire.
Rodent & Termite Resistant- Protective Construction Helps Reduce Damage Caused by Rodents and Termites, Supporting Longer Wire Life.
1100V Rating & Superior Current Capacity- Designed for Higher Loads with Reduced Heating and Short-Circuit Risk, Supporting Safer Electrical Installations.

Show All Key Features

Product Specifications

Brand	Orient
Cable Type	Flame Retardant
Certification	CE & RoHS
Class	C5
Colour	Green
Conductor Material	Copper
Insulation Material	PVC
Item Code	711FRC5GR1000D
Length	90 m
Rated Voltage	1100 V
Series	Diamond
Size(Cross Sectional Area)	10 Sqmm
Standard	IS: 694-2010 IS: 8130 1984, BS6360, IEC: 60228 ISO: 14001, ISO: 45001, ISO: 9001 & IS: 694
Country of origin	India
Manufacturer Details	Orient Electric is located at 240, Okhla Industrial Estate Phase-III, New Delhi-110020
Packer Details	Allinpro Industries Private Limited, Survey Number 15/8, Road/Street: Visveswarapura Village, Locality/Sub Locality: Kasaba Hobli, City/Town/Village: Nelamangala, District- Bengaluru Urban, Karnataka-562123, India
Common/Generic Name	Wire
Dimensions LxWxH	30x10.5x30 cm
Weight	9.45 kg

Show All Specifications

Product Details

The Orient Diamond 10 Sqmm Green PVC Insulated Copper Conductor Flame Retardant Wire (711FRC5GR1000D) offers exceptional performance with 90 meters of durable, flexible wire designed to meet IS:694-2010, BS6360, IEC:60228, and ISO standards. Crafted with high-quality copper, it ensures superior conductivity and minimal power loss, while double insulation and flame retardant properties provide enhanced safety. Resistant to rodents and termites, this C5 class house wire boasts a superior current capacity and limiting oxygen index, certified by CE and RoHS, making it an ideal choice for reliable, long-lasting home electrical wiring.
