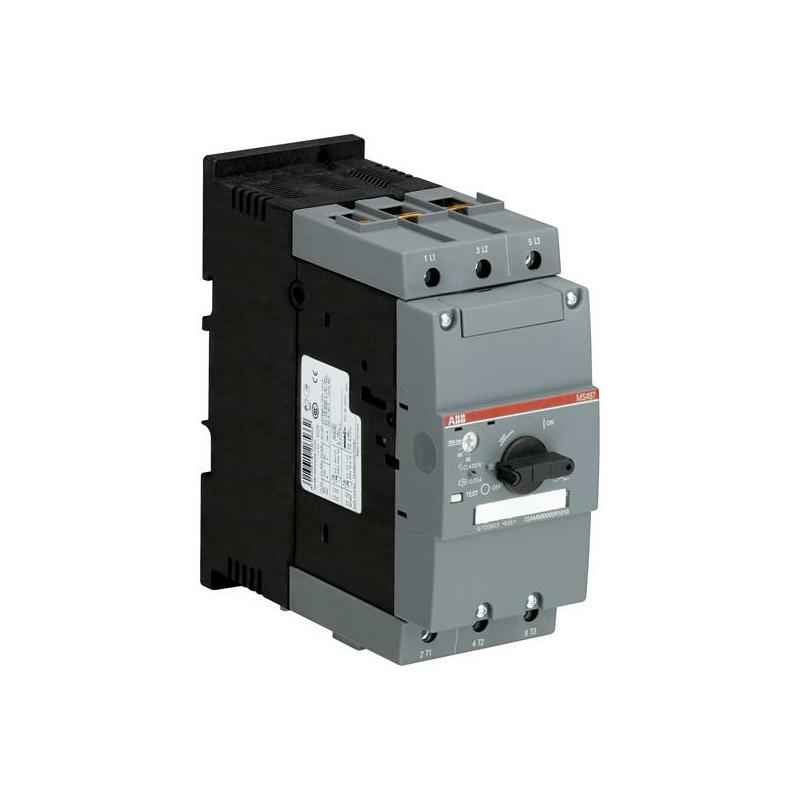

ABB MS497-50 3 Pole Manual Motor Starter, 1SAM580000R1006

AVAILABLE ON REQUEST

Product Specifications

Brand	ABB
Dimensions	17.4x16.5x7 cm
EAN	4013614265624
Frequency	Main Circuit: 50-60 Hz
Insulated Voltage	690 V
Item Code	MS497-50
Items in Pack	1 Piece
Number of Poles	3 Pole
Operating Current	45 A
Operating Voltage	Main Circuit: 690 V AC Main Circuit: 450 V DC
Part Number	1SAM580000R1006
Power Loss	Rated Operating Conditions per Pole: 3.5-6.7 W
Standards	IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL 508 CSA 22.2 No. 14
Warranty	1 Year
Weight	2230 g
Weight	2.23 kg

Show All Specifications

Rated Service Short-Circuit Breaking Capacity (I_cs):
(230 V AC) 100 kA
(400 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 7.5 kA
(690 V AC) 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (I_cu):
(230 V AC) 100 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 15 kA
(690 V AC) 10 kA
Rated Instantaneous Short-Circuit Current Setting (I_i):
650 A
Setting Range:
40 ... 50 A
Rated Operational Power AC-3 (P_e):
(400 V) Three Phase 22 kW
Rated Operational Current AC-3 (I_e):
45 A
Rated Impulse Withstand Voltage (U_imp):
Main Circuit 6 kV
Conventional Free-air Thermal Current (I_th):
Main Circuit 45 A
Degree of Protection:
Housing IP20
Main Circuit Terminals IP00
Pollution Degree:
3
Electrical Durability:
25000 cycle
Mechanical Durability:
50000 cycle
Connecting Capacity Main Circuit:
Flexible with Ferrule 1x 2.5 ... 50 mm²
Flexible with Ferrule 2x 2.5 ... 35 mm²
Solid 1/2x 2.5 ... 16 mm²
Stranded 1x 10 ... 70 mm²
Stranded 2x 10 ... 50 mm²
Tightening Torque:
Main Circuit 4 ... 6 N·m
Wire Stripping Length:
Main Circuit 17 mm
Recommended Screw Driver:
Hexagon 4
Mounting Position:
Position 1 to 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Actuator Type:
Rotary Handle
Contact Position Indication:
ON / OFF / TRIP

Ambient Air Temperature:
Operation -20 ... +70 deg C
Operation Compensated -20 ... +60 deg C
Storage -50 ... +80 deg C
Ambient Air Temperature Compensation:
Yes
Maximum Operating Altitude Permissible:
2000 m
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
RoHS Status:
Following EU Directive 2011/65/EU

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Ampere Rating UL/CSA:
45 A
Horsepower Rating UL/CSA:
(200 V AC) Three Phase 15 Hp
(208 V AC) Three Phase 15 Hp
(220 ... 240 V AC) Three Phase 20 Hp
(440 ... 480 V AC) Three Phase 40 Hp
(550 ... 600 V AC) Three Phase 50 Hp
General Use Rating UL/CSA:
(600 V AC) 45 A
Connecting Capacity Main Circuit UL/CSA:
Flexible 1x 10-2/0 AWG
Flexible 1/2x 10-1/0 AWG
Stranded 1x 10-2/0 AWG
Stranded 1/2x 10-1/0 AWG
Tightening Torque UL/CSA:
Main Circuit 35 ... 53 in·lb
