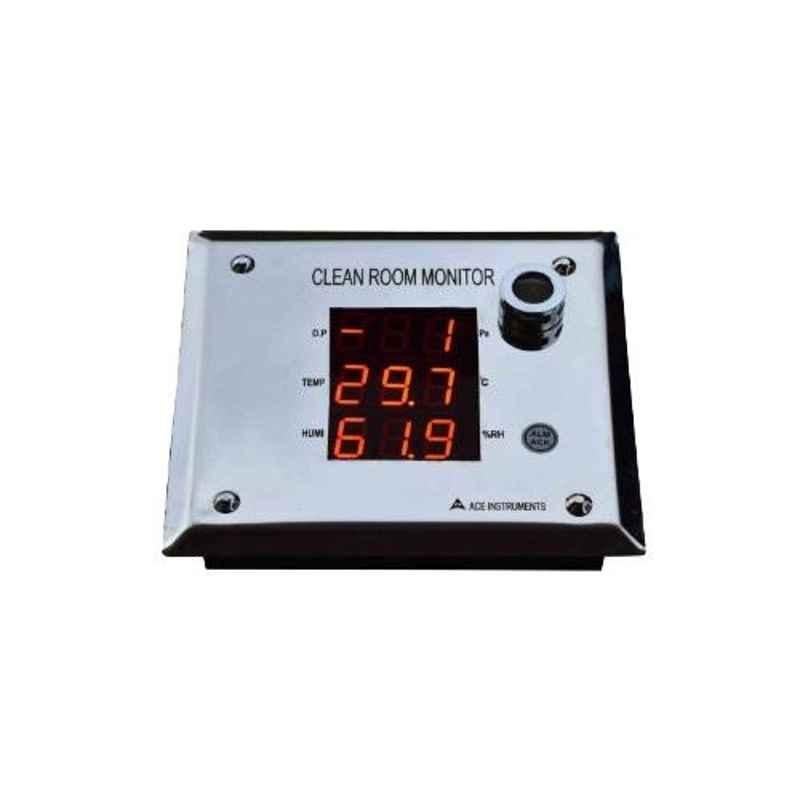

ACE Instruments AI-CRM1-1A Hospital Operation Theatre Monitor

Name: ACE Instruments AI-CRM1-1A Hospital Operation Theatre Monitor
Brand: Ace Instruments
SKU: MSN75DQRGJZV92
Price: 31400 INR
Availability: OutOfStock

₹31,400 (Incl. of all taxes)

₹26,618 ₹4,782 GST

MRP ₹33,012 4% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Ace Ai-Crm1-1 Hospital Operation Theater Monitor is Exceptionally Intended to Gauge Temperature, Relative Humidity, Differential Pressure with an Inbuilt Caution for Any Set point Infringement.
This Cleanroom Screen is Outfitted with Modbus Rs485 & Simple Yield of 4-20 mA for Simple Correspondence to Plc-Bms-Scada Systems.
Hospital Operation Theatre Monitor is Designed for the Least Cabling & Simple Flush Mounting Modular Wall or Brick Walls of Clean Rooms.
The Sensors for All 3 Parameters are Integrated Inside for Use & Installation.
The Blend Humidity & Temperature Sensor Flushed to the Front Stainless Steel Plate & the Differential Pressure is Worked in with Hose Areola Associations at the Back for +Ve & -Ve Pressure Connection.
Extra Features in the Infection Room Monitor Incorporate Emerge Highlights Like a Coordinated Bell for Parameter Violation Caution, Singular LED for Process Violation Visual Alarm & Rs 485 Modbus Communication for Easy Integration to BMS-SCADA-EMS.

Show All Key Features

Product Specifications

Brand	Ace Instruments
Accuracy	±0.5% on Full Scale
Applications	Pharmaceutical Clean Rooms, Laminar Air Flow Cabinets, Hospital OT Rooms, Isolation Room, Infection Rooms, HVAC & Biosafety Cabinets
Buzzer	Integrated Buzzer
Calibration	Provided Along with & Valid for 1 Year, Traceable to National Standards
Communication	RS-485 Modbus RTU Protocol Communication for BMS, SCADA & PLC integration
Differential Pressure	0-10 mm W.C 0-100 Pascals
Dimensions	MS Powdered Back Box: 140x150x35 mm
Display	3 Line Red 7 Segment LED Display of height 1 inch, 3 Digits
Enclosure	M.S. Powder Coated Body with Stainless Steel Front Flush Plate for Modular Wall Mounting
Humidity	0 -100% RH
Model No	AI-CRM1-1A
Mounting	Wall Mounting
Parameters Measured	Differential Pressure, Humidity & Temperature
Resolution	1 Pascal
Sensitivity	250 mA
Sensor Type	Polymer Sensing for Temperature, Capacitive Polymer Sensing for Relative Humidity & Piezo Resistive Sensor for Differential Pressure
Setting	By 4 Keys on the Front Stainless Steel Panel
Size	Front Stainless Plate: 200x180 mm
Temperature	0 to 50 deg C
Voltage	24 V DC
Warranty	1 Year
Weight	600 g
Country of origin	India
Manufacturer Details	INSTRUKART HOLDINGS, 18, Street 1A,Czech Colony Sanath Nagar , Hyderabad, Telangana-500018, India , Phone: +91-8448233444
Packer Details	INSTRUKART HOLDINGS, 18, Street 1A,Czech Colony Sanath Nagar , Hyderabad, Telangana-500018, India , Phone: +91-8448233444
Common/Generic Name	Operation Theatre Monitor
Dimensions LxWxH	190x185x100 mm
Weight	600 g

Show All Specifications

Product Details

The ACE Instruments AI-CRM1-1A Hospital Operation Theatre Monitor precisely measures differential pressure, humidity, and temperature, ensuring optimal conditions in sterile environments like pharmaceutical clean rooms, laminar airflow cabinets, and hospital OT rooms. Featuring a clear 3-line, red 7-segment LED display and housed in a compact MS powdered back box with a stainless steel front plate, it offers flush mounting for neat installation. Integrated sensors and RS-485 Modbus RTU communication enable seamless integration with BMS, SCADA, and PLC systems. Built-in visual and audible alarms provide instant alerts for any parameter breach, enhancing infection control and operational safety.
