Protective Relays

Safeguard Your Power Systems with the Right Protective Relay

An electrically operated switch, such as a relay, plays a key role in controlling an electrical circuit using an independent low-power signal. It is also used when multiple circuits need to be controlled by a single signal. First, relays were used as signal repeaters within long-distance telegraph circuits and after that, widely used in early computers & telephone exchanges to achieve logical operations. There are different types of relays available, and each type is used based on the requirements.

What is a Protective Relay?

A protective relay is a switchgear device used to detect faults and trigger the circuit breaker to isolate the faulty part of the system. These relays are self-contained & compact devices that detect abnormal conditions occurring within the electrical circuits by measuring the electrical quantities constantly which are dissimilar in fault and normal conditions. In faulty conditions, the electrical quantities may change, like current, voltage, phase angle, and frequency.

What are the Key Functions of Protection Relays

Now that we understand the various types, let’s dive deeper into what these relays actually do. Their job goes beyond simply detecting faults. It’s specific functions they provide to maintain the integrity of power systems.

Phase Failure Protection

This function is vital in three-phase installations. Phase failure leads to disproportionate power distribution, which can drastically affect motor performance. By halting operation when a phase failure is detected, the protection relay saves the equipment from malfunction and damage due to partial power supply.

Phase Sequence Protection

By this time, not only will it affect the proper functioning of the equipment, but it will also mean operational hazard. If motors rotate in the wrong direction due to incorrect phase sequence, they may wear out quickly or cause physical damage. A protection relay detects this issue quickly, takes action, and helps prevent system interruption or damage.

Unbalance Protection

An unbalanced load in three-phase systems can cause problems like overheating. The unbalanced protection helps to prevent uneven distribution of electricity across each phase, which could damage sensitive machinery. The relay balances out operations again, preventing wear and conserving energy.

Over & Under Voltage Protection

High voltage and low voltage can both be harmful to equipment. An insulation breakdown can cause over voltage, while under voltage, we can have poor electrical performance. So, this protection function keeps the voltage in a safe range. If the system goes outside this range, the relay flicks off and isolates the faulty section.

Over Current Protection

Closures and overloads may incur huge destruction or damage to the equipment and possibly fire hazards overhead. Detection of this extreme current via overcurrent relay opens the circuit breaker and minimizes the entirety of system exposure to this extreme.

List of the Best protective relays you can opt for

Softhard i.MWM-IO 4-61A

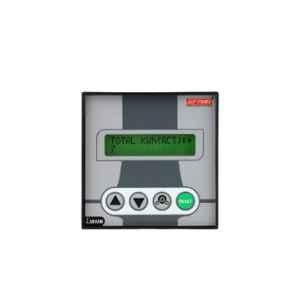

Softhard i.MWM-IO 4-61A Intelligent Motor Protection Relay with Digital Display is another quality product of Softhard. It provides Intelligent Motor Protection Relay with Digital Display and is manufactured using quality-assured material with an advanced level of techniques so that it becomes up to the standard in such a highly challenging field.

Concord Electrovic Undercurrent Relay

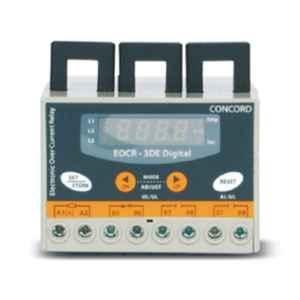

This device features 2 integral current transformers and offers both underload and dry run protection. It supports a wide range of current adjustment ranges, ensuring flexibility for various applications. With a definite trip time characteristic, it guarantees reliable operation, and it can be reset either manually or remotely for added convenience.

Softhard Microcomputer Voltage Protection Relay

Available as basic units from 0.25 5A (up to 3 HP), 4-61A (40 HP with inbuilt CTs) & 40-500A (up to 300 HP), 250-2500A (up to 1500 HP) with a single turn can be used for any current range by using external CTs. Provides accurate overload protection by virtue of high release time accuracy.

How to Choose the Right Protection Relay

Relays are an integral part of the electronic world; here are some factors to consider when Selecting a Relay:

i. Application Requirements

First of all, understand the requirements of your application. Know the required voltage level, current ratings, and load characteristics. Different faults require different relays, such as over-current relays are used for current-related issues while voltage relays are used in case of voltage fluctuations.

ii. Reliability and Durability

Reliability and durability should be at the top of your list. Research is your friend. Look for relays from reputable manufacturers.

iii. Response Time

In a problematic situation, time is of the essence. Look for relays that can swiftly detect and isolate faulty sections. Faster response time means less damage and reduced downtime.

iv. Cost-Effectiveness

Cost has always been a consideration. Compare prices of different relays against their features and benefits. Be sure to choose a relay that is cost-effective as well as reliable.

v. Standards and Certifications

Don’t forget about standards and certifications. The relay you choose should comply with relevant regulations and meet industry requirements. Furthermore, it should have undergone extensive testing and certification processes.

In addition, it is important to consider some features while selecting a relay. Here is a comprehensive Relay selection Guide for Electrical Systems:

vi. Understanding Relay-Related Terminology

To find a relay that suits your needs, it is important to be familiar with various relay-related terms, such as NO (Normally open), NC (Normally Closed), and Contacts – it is also crucial to familiarize yourself with Form A, Form B & and Form C Contacts. Being familiar with these terms makes navigation for the right relay easy.

vii. Considering Voltage and Current

Anything that is essential is the requirements of your machine. Just ensure that the relays you choose are suitable for the voltage rating and current carrying capacity of your application to prevent any related incidents.

viii. Contact Configuration and Switching Capabilities

You might be able to get your hands on Multiple Contact Configurations, such as SPST, SPDT, and DPDT. The contact considerations offer you multiple switching capabilities. You need to choose one that suits your needs and keeps your system running smoothly.

ix. Characteristics of the Coil & Power Requirements

The coils inside relays require a specific amount of voltage to work. Pay attention to coil voltage and other relay requirements. Furthermore, consider factors like coil resistance, current, and power consumption for compatibility with your system.
