Thermal Overload Relay

Thermal Overload Relays – The Unsung Guardians of Electrical Machinery

In the world of electrical systems and equipment, safety is paramount. Thermal overload relays are vital as the unsung heroes that protect circuits, motors, and machinery from potentially catastrophic overheating and damage. Thermal overload relays can shut off the circuit by monitoring the system's temperature, protecting the equipment and assuring safety.

Types of Thermal Overload Relays and Their Uses

• Bimetallic thermal overload relays operate using a bimetallic strip that physically bends and triggers the relay when subjected to excessive current. They offer a simple mechanical means of protection. Bimetallic overload relays are commonly used to protect AC electric motors from overheating and overcurrent damage.


• Electronic thermal overload relays use solid-state circuitry instead of mechanical parts to monitor current. This allows great precision and adjustability in the overload trip point. Electronic relay overloads are versatile and suitable for protecting pumps, compressors, conveyors, cranes, and various industrial machinery against overcurrent faults.


• Manual reset thermal overload relays require human intervention to reset the relay after it trips due to an overload. This ensures the underlying issue is identified and addressed before allowing the motor or machinery to restart. Manual reset types are crucial for applications where equipment safety is paramount.


• Automatic reset thermal overload relays automatically reset themselves and resume normal operation after tripping once overload conditions clear. Automatic reset types allow uninterrupted processes and are common on equipment where continuity of operation is critical.


• Submersible pump overload relays are purpose-built for protecting submersible pumps against dry run, phase imbalance, and overload conditions. They maximise submersible pump longevity in environments prone to these faults.


• Single-phase thermal overload relays protect single-phase AC motors and machinery. They safeguard against damages from voltage fluctuations, phase loss, abnormal frequency, and excess current.


• Three-phase thermal overload relays monitor and respond to each phase’s current on three-phase systems. They offer comprehensive protection tailored to three-phase motors and industrial equipment.

Things To Keep in Mind Before Selecting Thermal Overload Relay

• Current Rating Match: Choose a thermal relay overload with a current rating matching the motor's rated full load amps for optimal protection. An incorrectly sized relay will not adequately protect the motor.


• Trip Class: Applications dictate the trip class, such as a fast Class 10 trip for sensitive equipment versus a slower Class 20 trip for rugged machinery. Select the appropriate class for proper response time.


• Adjustability: Electronically controlled relays allow adjusting current settings for precision protection. Consider if you need customisable trip points or if a preset is acceptable.


• Reset Type: Determine if an automatic or manual reset suits the application based on whether the process can run unmonitored after a trip occurs.


• Enclosure Rating: The relay's enclosure must suit the operating environment, for example, NEMA 4X for outdoor wash-down. Choose an enclosure that protects from dust, moisture and corrosion.


• Compatibility: Verify the relay properly interfaces with the protected motor and electrical system for seamless operation.


• Brand reputation: Reputable brands are crucial for consistent quality and support. Leading brands offer solid warranties and engineering expertise.

Prominent Thermal Overload Relay Brands

Havells Thermal Overload Relays

• Havells is a major Indian electrical equipment manufacturer trusted for its thermal overload relays engineered for reliable circuit protection.


• Havells OLR relays safeguard industrial machinery, motors, and critical systems across industries.


• Their product HGS Relay is available from 0.12 Ampere - 800 Ampere ratings and has an inbuilt single phasing preventer.

Schneider Electric Thermal Overload Relays

• As a global energy management and automation leader, Schneider Electric delivers exceptionally engineered thermal overload relays.

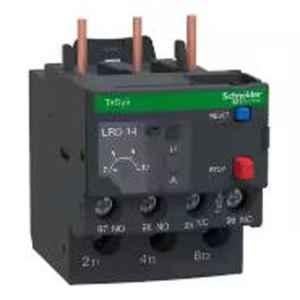

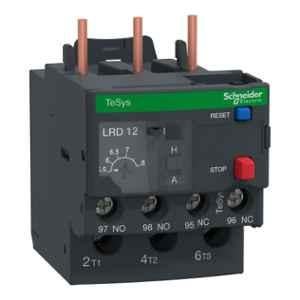

• Their versatile, high-performance relays protect equipment across applications and are designed for TeSys D, K and F contactor ranges.


• The company also plans to launch TeSys Giga Electronic Relay that can protect motors up to 630A (335 kW /400 V) from overloads.

Larsen & Toubro (L&T) Thermal Overload Relay

• L&T is an Indian multinational known for expertly designed thermal OLR relays that meet stringent performance and safety standards.


• Their relays come with inbuilt single phasing protection, ‘START’ and ‘OFF / RESET’ push buttons and auto-manual reset modes.

So, no matter what kind of thermal relays you are looking for, here at Moglix, you can buy numerous products from the top brands mentioned above. And the best part? Here, thermal overload relay prices are reasonably low.

Moglix Is the Ideal Source for Thermal Overload Relays

Thermal overload relays are indispensable as our electrical system guardians, constantly watching and responding to threats. Whether on an industrial site with thousands of assets or a single motor in a home shop, the right overload relay prevents catastrophe through attentive protection. Choosing the properly sized and featured relay is crucial for many types, configurations, and applications.

Moglix makes selecting the ideal thermal overload relay for your needs convenient and confident. Browse their inventory to find the perfect overload guardian for your equipment. Invest in the right relay, and keep your electrical system functioning smoothly for the long run.
