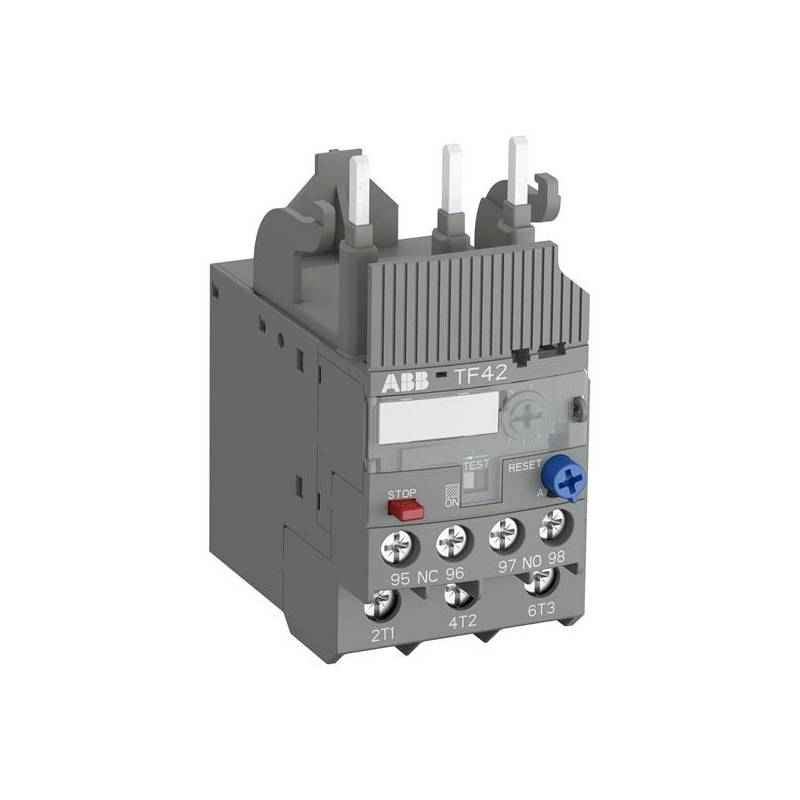

ABB TF42-1.3 3 Pole Thermal Overload Relay, 1SAZ721201R1025

₹1,409 (Incl. of all taxes)

₹1,194 ₹215 GST

MRP ₹2,300 38% OFF

AVAILABLE ON REQUEST

Product Specifications

Brand	ABB
Item Code	TF42-1.3
Auxillary Contact	Auxiliary Contacts NC: 1 Auxiliary Contacts NO: 1
Dimensions	7.5x8.83x4.5 cm
EAN	4013614398056
Frequency	Auxiliary Circuit: 50-60 Hz Auxiliary Circuit: DC Main Circuit: 50-60 Hz
Insulated Voltage	690 V
Items in Pack	1 Piece
Number of Poles	3 Pole
Operating Current	1.3 A
Operating Voltage	Auxiliary Circuit: 600 V AC/DC Main Circuit: 690 V AC
Part Number	1SAZ721201R1025
Power Loss	Rated Operating Conditions per Pole: 1.1-2.0 W
Standards	IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
Suitable For	AF09 AF12 AF16 AF26 AF30 AF38
Warranty	1 Year
Weight	130 g
Country of origin	India
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village,Kasaba Hobli, Bangalore North, 562123-Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village,Kasaba Hobli, Bangalore North, 562123-Bangalore-Karnataka, Phone: +91-8448233444
Common/Generic Name	Overload Relay
Dimensions LxWxH	7.5x8.83x4.5 cm
Weight	130 g

Show All Specifications

Setting Range:
1.0 ... 1.3 A
Rated Operational Current AC-3 (I_e):
1.3 A
Rated Impulse Withstand Voltage (U_imp):
Auxiliary Circuit 6 kV
Main Circuit 6 kV
Number of Protected Poles:
3
Conventional Free-air Thermal Current (I_th):
Auxiliary Circuit NC 6 A
Auxiliary Circuit NO 4 A
Rated Operational Current AC-15 (I_e):
(120 V) NC 3 A
(120 V) NO 0.75 A
(240 V) NC 3 A
(240 V) NO 0.75 A
(400 V) NC 0.75 A
(400 V) NO 0.75 A
(500 V) NC 0.75 A
(500 V) NO 0.75 A
Rated Operational Current DC-13 (I_e):
(125 V) NC 0.55 A
(125 V) NO 0.55 A
(24 V) NC 1.25 A
(24 V) NO 1.25 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(500 V) NC 0.15 A
(500 V) NO 0.15 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A
Degree of Protection:
IP20
Pollution Degree:
3
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 0.75 ... 4 mm²
Connecting Capacity Main Circuit:
Flexible with Ferrule 1/2x 0.75 ... 4 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 4 mm²
Flexible 1/2x 0.75 ... 4 mm²
Rigid 1/2x 0.75 ... 4 mm²
Tightening Torque:
Auxiliary Circuit 1 ... 1.5 N·m
Main Circuit 1.5 ... 2.5 N·m
Wire Stripping Length:
Auxiliary Circuit 9 mm
Main Circuit 12 mm
Recommended Screw Driver:
Main Circuit Pozidriv 2
Mounting Position:
Position 1 to 5

Ambient Air Temperature:
Operation -25 ... +60 deg C
Operation Compensated -25 ... +60 deg C
Storage -50 ... +80 deg C
Ambient Air Temperature Compensation:
Yes
Maximum Operating Altitude Permissible:
2000 m
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations acc. to IEC 60068-2-6:
5g / 3 ... 150 Hz
RoHS Status:
Following EU Directive 2011/65/EU

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V AC
Ampere Rating UL/CSA:
1.3 A
Contact Rating UL/CSA:
(NC:) B600
(NC:) Q600
(NO:) Q600
(NO:) D300
Connecting Capacity Main Circuit UL/CSA:
Flexible 1/2x 18-10 AWG
Stranded 1/2x 18-10 AWG
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 18-12 AWG
Stranded 1/2x 18-12 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 9 ... 13 in·lb
Main Circuit 13 ... 22 in·lb
