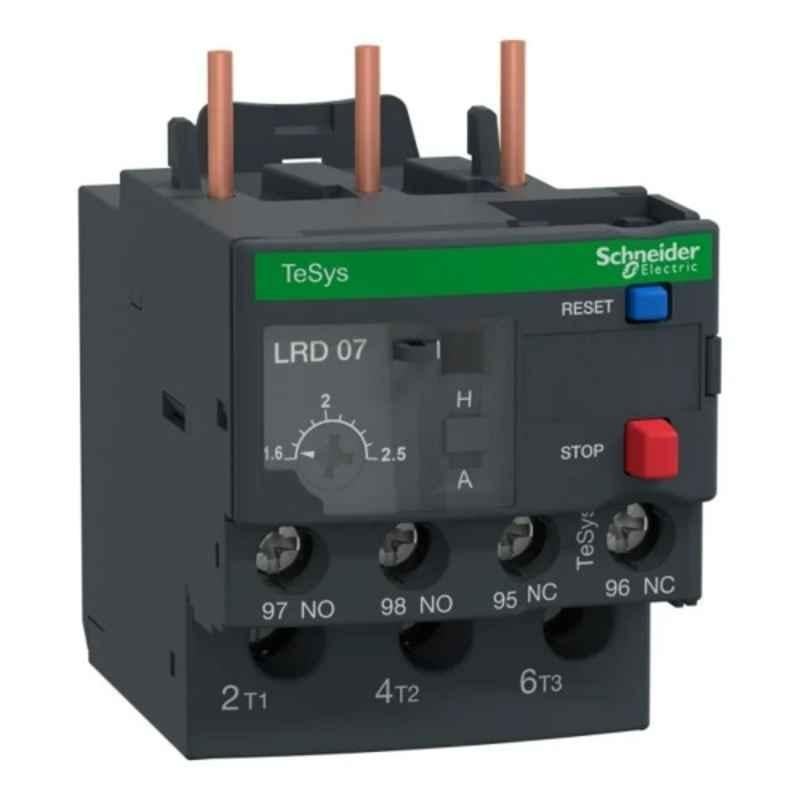

Schneider Electric TeSys Deca 1.6-2.5A 3 Pole Thermal Overload Relay, LRD07

Product Details

The Schneider Electric TeSys Deca LRD07 is a 3-pole thermal overload relay designed to protect three-phase motors from overloads, ensuring reliable operation in industrial applications. With an adjustable thermal protection range of 1.6 to 2.5 A and a tripping class of 10A, it is suitable for motors up to 0.75 kW at 400V. The relay features a thermal adjustment dial, manual/automatic reset selector, test selector for trip simulation, reset and stop buttons, a flag indicator, and 2 auxiliary contacts (1NO+1NC) for fault signaling. Settings are protected by a transparent cover that can be locked with sealing, preventing unauthorized adjustments. Connection is made via screw clamp terminals, and the relay can be mounted on a DIN rail or fixed separately from the contactor using a terminal block (LAD7B106). It connects directly to the bottom terminals of 3-pole contactors LC1D09 to LC1D38. The LRD07 is multi-standard certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine) and complies with Green Premium standards, including RoHS and REACH regulations. This relay offers a durable and efficient solution for motor protection in various industrial settings.
