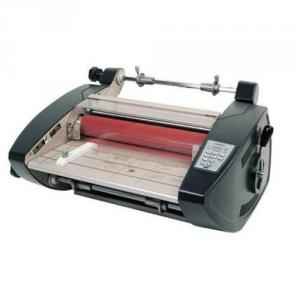

GBC 1400W Lamination Machine, CATENA35

AVAILABLE ON REQUEST

About This Product

Key Features

Document size: Banner / A3 Max (330mm).
Film capability: Up to 25 - 250 Micron (Nap-Lam II, Arctic, Octiva, Hi-Tac films).
LCD display indicates temperature, speed and ready/wait status.
Interlocking feed tray and magnetic safety shield provide safe operation.
Infrared heating coil distributes heat evenly and improves lamination quality.
Silicone heat rollers reduce adhesive build up and cleaning time.
Roller gap adjustment handles mounting boards up to 0.19" thick.
Max. document size: Banner / A3 (Max. 330mm).
Warm-up time (min): 10.
Pouch capacity (mic): 25-250.
Speed (mm/min): 1500.
Mode of Operation: Infrared heat Technology.
No. of rollers: 4.
Maximum Thru-put Thickness (mm): 5.0.
Photo quality: Yes.
Speed control: Variable.
Temperature control: Variable.
Reverse switch: Yes.
Digital display: Yes.
Auto switch off After: 2 hour.
Ready signal (Light/Glow): Yes.

Show All Key Features

Product Specifications

Brand	GBC
Laminating Speed	1500 mm/min
Laminating Width	12 inch
Power Consumption	1400 W
Item Code	CATENA35
Number of rollers	4
Dimensions	620x530x310 mm
Pouch Thickness	25-250 micron
Voltage	230 V
Warranty	1 Year
Weight	25 kg
Country of origin	USA
Manufacturer Details	ACCO Brands LLC, Four Corporate Drive Lake Zurich, Illinois 60047 U.S.A
Packer Details	ACCO Brands India Private Limited ground Floor, Plot No. 36, Irani Building, Balaram Street, Badar Baug, Grant Road East, Mumbai, Mumbai City, Maharashtra, India, 400007_+91-7738398210
Importer Details	ACCO Brands India Private Limited ground Floor, Plot No. 36, Irani Building, Balaram Street, Badar Baug, Grant Road East, Mumbai, Mumbai City, Maharashtra, India, 400007_+91-7738398210
Common/Generic Name	Lamination Machine
Dimensions LxWxH	620x530x310 mm
Weight	25 kg

Show All Specifications

Product Details

GBC CATENA35 lamination machine, comes with a manufacturing warranty period of 12 months for easy replacement. The product dimensions are 620x530x310 mm and it weighs 25 kg. It supports a voltage of 230 V and a pouch capacity of 25 to 250 microns. It ensures a smooth laminating performance with a speed of 1500 mm/min. It consumes 1400 W power for jam-free lamination. It comes with an LCD display screen which indicates speed, ready status, and temperature. It uses infrared heat technology as a mode of operation. Within just 10 minutes as a warm-up time, the machine starts working. It supports a film capability up to 25-250 micron which includes Octiva, Arctic, Hi-Tac, and Nap-Lam II films. With the presence of an infrared heat coil, the heat gets distributed in an even manner which results in improving the quality of lamination. The product features variable speed control, reverse switch, digital display, ready signal, 4 rollers, and variable temperature control.
