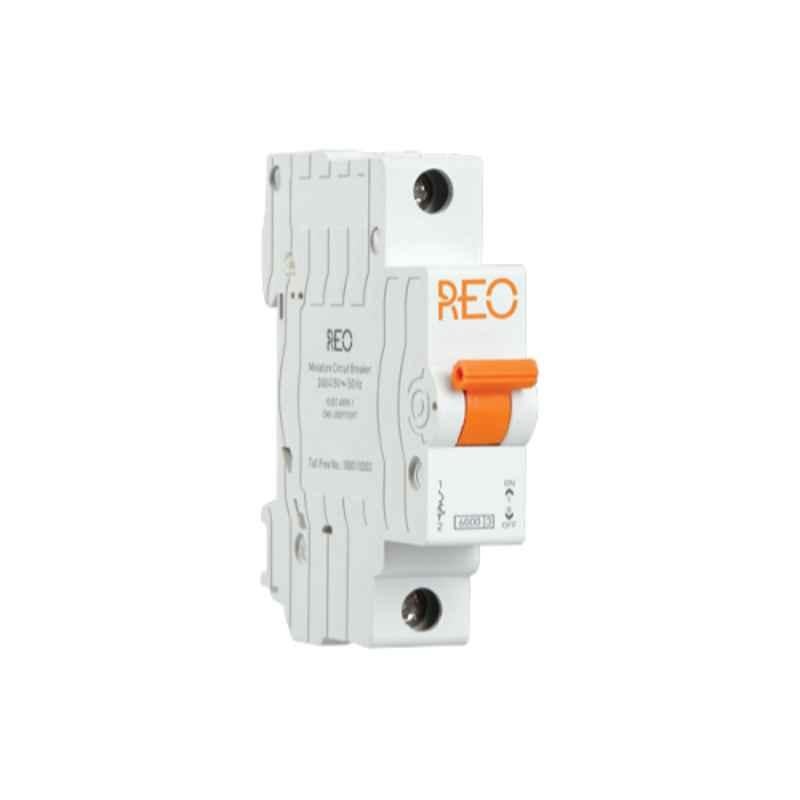

Havells Reo 20A Single Pole C-Curve MCB, DHMXCSPZ020, Breaking Capacity: 6 kA

Name: Havells Reo 20A Single Pole C-Curve MCB, DHMXCSPZ020, Breaking Capacity: 6 kA
Brand: Havells
SKU: MSN457MJ2XLQ9J
Price: 1512 INR
Availability: OutOfStock

₹126 (Incl. of all taxes)

₹106 ₹20 GST

MRP ₹183 31% OFF

AVAILABLE ON REQUEST

Moglix Insights

Havells is one of the top brand in mcb, preferred by 24% of the users

36% of the users prefer mcb in ₹100-200 price range

About This Product

Key Features

Ease of Installation.
Line & Load Interchangeability.
Superior Air Circulation & Hammer Trip Mechanism.
Suitable for Protection against Overload & Short Circuit for Motor & Other Inductive Loads.

Show All Key Features

Product Specifications

Brand	Havells
Breaking Capacity	6 kA
Current Rating	20 Amp
Curve Type	C
Number of Poles	Single Pole
Frequency	50 Hz
Item Code	DHMXCSPZ020
Protection Class	IP20
Rated Voltage	240 V AC
Additional Details	Rated Impulse Voltage: 4 kV Tightening Torque Capacity: 2 Nm Shock Resistance: 40 mm Free Fall Rated Insulation Voltage (Ui): 690 V Mounting: Clip on DIN Rail (35x7.5 mm) Terminal Capacity (maximum): 25 mm2 Dimensions (HxDxW)/Pole: 84x60.2x17.7 mm
Mounting type	Vertical/Horizontal
Notes	Images are for Reference Purpose Only
Operating Temperature	-5 to 50 deg C
Series	Reo
Country of origin	India
Manufacturer Details	Havells India Ltd, Sector 10, IIE Haridwar, SIDCUL Haridwar, Uttarakhand, 249403
Packer Details	Havells India Ltd, Sector 10, IIE Haridwar, SIDCUL Haridwar, Uttarakhand, 249403
Common/Generic Name	MCB
Dimensions LxWxH	12x6x20 cm
Weight	0.98 kg

Show All Specifications

Product Details

Havells Reo 20A Single Pole C-Curve MCB, DHMXCSPZ020, Breaking Capacity: 6 kA is a premium quality product from Havells . Moglix is a well-known ecommerce platform for qualitative range of MCB. All Havells Reo 20A Single Pole C-Curve MCB, DHMXCSPZ020, Breaking Capacity: 6 kA are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Havells Reo 20A Single Pole C-Curve MCB, DHMXCSPZ020, Breaking Capacity: 6 kA, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Havells products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Havells MCB .
