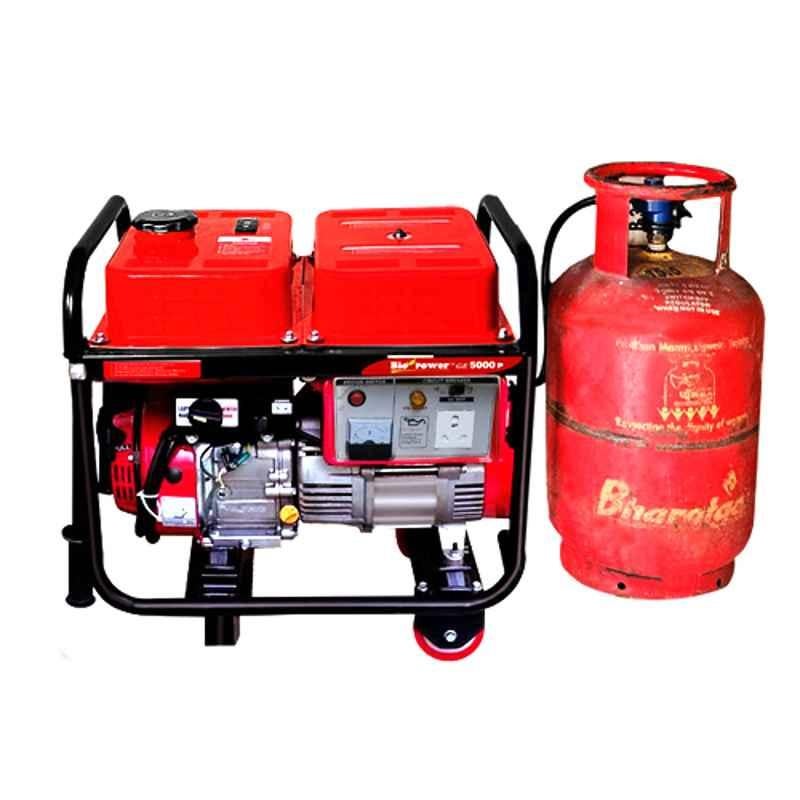

Himalayan Power GE-5000R-LPG 5 kVA 17.5A Run Recoil Start Petrol & LPG Portable Generator

₹88,578 (Incl. of all taxes)

₹75,066 ₹13,512 GST

MRP ₹97,450 9% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

  • Very high Over Loading Capacity.

  • LPG Compatible Inbuilt Connections for LPG Fitment & Running on LPG.

  • Analogue Voltmeter, LPG/ Gas Fuel Compatibility, Oil Alert System, Fuel Level Gauge & Overload Protection (NFB).

Product Specifications

Brand
Engine Displacement
223 cc
Fuel Tank Capacity
12 L
Fuel Type
Petrol & LPG
No. of Cylinders
Single
Number of Phases
Single Phase
Sound Level
<86 dB
Starting System
Recoil Start
Additional Details
Bore & Stroke: 70x58 mm
Current Capacity: 24 Amp
Run Time: 8 hours & >20 hours/LPG Cylinder
Alternator Type
Brushless, Rare Earth Magnetic Rotor, THD 5% & Pure Sine Wave
Applications
Inbuilt LPG Kit for Running on LPG Cylinder/PNG
Best for Institutional/Bulk Order Supplies, Vehicular Applications, Food Vans, Deep Freezer/Big Refrigerators, Water Coolers & Submersible Pumps
Frequency
50 Hz
Fuel Consumption
Petrol 1.5 lph
LPG: 800 g/hours
Maximum Power (hp)
7.5 HP
Model
GE-5000R-LPG
Engine: HM170P
Notes
Images are for Reference Purpose Only
Number of Strokes
4
Oil Capacity
600 ml
Power Output
Max AC: 4500 VA
Rated AC: 4000 VA
Rated Current
17.5 Amp
Rated Voltage
220 ± 10 V AC
No Load: 250 ± 5 V AC
Speed
3600 rpm
Suitable For
Industrial & Commercial Due to Ability for Overloading & for Running
Household, Offices, Nursing Homes & Restaurants, Banks & ATMs & Field Jobs
Country of origin
India
Manufacturer Details
Himalayan Power Machine Mfg. Co. Part of Khasra No. 51 and 52 Ka, Village Kuanwala, Haridwar Road, Dehradun, Uttarakhand- 248001
Packer Details
Himalayan Power Machine Mfg. Co. Part of Khasra No. 51 and 52 Ka, Village Kuanwala, Haridwar Road, Dehradun, Uttarakhand- 248001
Common/Generic Name
Petrol & LPG Generator
Dimensions LxWxH
60.7x46x61 cm
Weight
48.6 kg
Show All Specifications

Product Details

The Himalayan Power Ge-5000R-Lpg is A Versatile & Robust Generator Designed for Both Petrol & Lpg Fuel Sources, Offering A Dependable 5 Kva Power Output with A Maximum Current of 17.5A. Engineered for Efficiency & Ease of Use, this Generator Features A Recoil Start Mechanism for Reliable Ignition in Various Conditions. Its Dual Fuel Capability Ensures Flexibility, Allowing Users to Switch Between Petrol & Lpg Based on Availability & Cost-Effectiveness. the Ge-5000R-Lpg is Built with A Durable & Sturdy Construction, Ensuring Long-Lasting Performance & Resilience Under Heavy Usage. It is Equipped with A High-Performance Engine That Delivers Consistent Power, Making It Ideal for Both Residential & Commercial Applications. the Generator'S Compact & Portable Design Allows for Easy Transportation & Storage, While Its Low Noise Operation Ensures Minimal Disruption. Additionally, Safety Features Such As Low Oil Shutdown & Overload Protection Provide Enhanced Reliability & Protect the Unit From Potential Damage. with Its Combination of Power, Efficiency, & Flexibility, the Himalayan Power Ge-5000R-Lpg is An Excellent Choice for Users Seeking A Reliable Backup Power Solution Or A Primary Power Source for Remote Locations & Critical Operations.

Browse through the extensive list of Generators at Moglix. Shop online for other Himalayan Power Generators. available at Moglix in the lowest price range.
