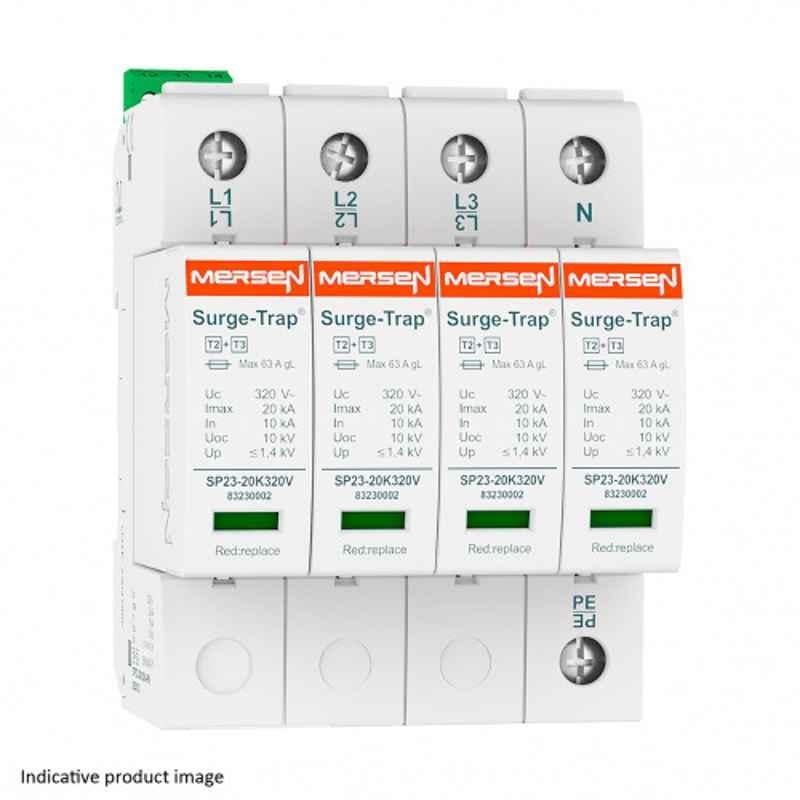

Mersen STPT23-20K320V-4P 2 Type Three Pole & Neutral Surge Protection Devices, 83230132

Name: Mersen STPT23-20K320V-4P 2 Type Three Pole & Neutral Surge Protection Devices, 83230132
Brand: Mersen
SKU: MSNV5OOL8ZNV56
Price: 2599 INR
Availability: OutOfStock

₹2,599 (Incl. of all taxes)

₹2,202 ₹397 GST

MRP ₹3,400 23% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

STP T23 20 is the Series of Combined Type 2+3/Class II+III Devices for Discharging Voltage Surges while Providing a Very Fine Voltage Protection Level, in Accordance with EN/IEC 61643-11.
Suitable as the Final Stage of Protection in Panels with Type 2 Protection Devices Installed Upstream such as STP T2 40 SPDs.
These SPDs should be Installed as Close as Possible to the Equipment being Protected.
Mechanically Coded Cartridges to Avoid Cartridge Replacement Errors.

Show All Key Features

Product Specifications

Brand	Mersen
Applications	Industry & Automation Commercial & Residential Installations Telecom & IT & Data Centers LED Outdoor Lighting Water treatment Smart Grid & LV Meterin Photovoltaic & wind
Configuration	System: TT. TNS
Current	Max. Back-Up Fuse: 63 A gG
Dimensions	9x7.2x7 cm
Discharge Current	Max: 20kA Nominal: 10kA
Housing Material	PA6 CT1, V-0
Indication	Visual Indicator
Item Code	83230132
Mounting	DIN Rail
Network	TNS, TNC, TT & IT
Nominal Voltage	Un: 230/400 - 277/400 VAC
Number of Module	4
Number of Poles	4(3P+N)
Part Number	STPT23-20K320V-4P
Protection Level	Voltage Up (L-PE): ? 1.4 kV
Response Time	25 ns
RoHS	Yes
Series	STP T23
Standards	IEC 61643-11 & EN 61643-11
Torque	35.4 lb-in
Type	2
Voltage	Uc (L-PE): 320 V
Weight	450 g
Country of origin	India
Manufacturer Details	G4B, Indraprastha Residency Near Gaytri Public Schhor. Jyoti Rao Phule Collage Road Nandpuri, Sodala , Jaipur , Jaipur, Rajasthan-302019, India , Phone: +91-8448233444
Packer Details	G4B, Indraprastha Residency Near Gaytri Public Schhor. Jyoti Rao Phule Collage Road Nandpuri, Sodala , Jaipur , Jaipur, Rajasthan-302019, India , Phone: +91-8448233444
Common/Generic Name	Protection Device
Dimensions LxWxH	9x7.2x7 cm
Weight	450 g

Show All Specifications
