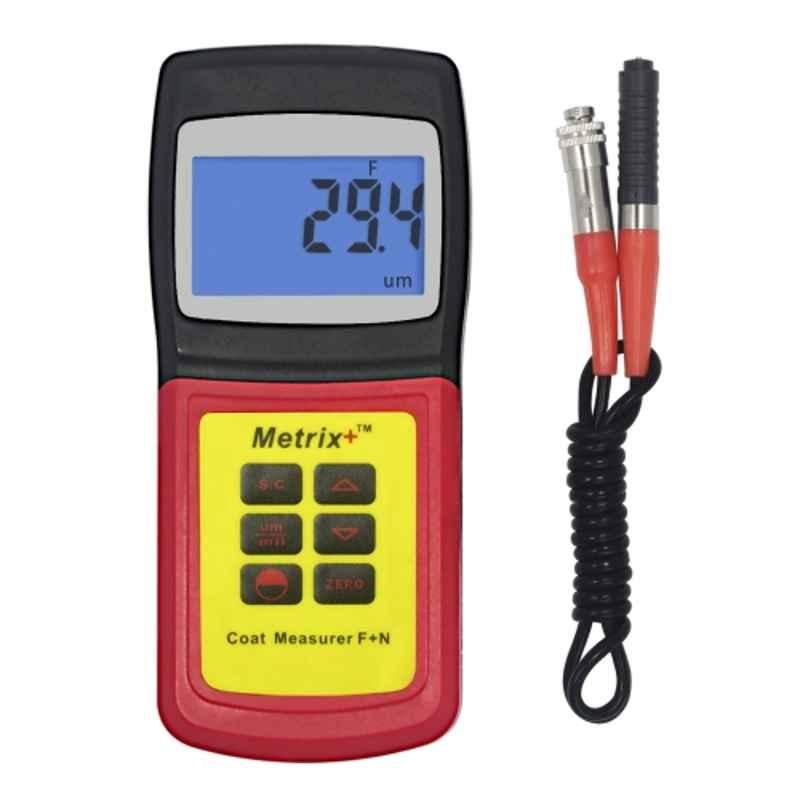

Metrix+ 1250um 1.5x3mm Coating Thickness Gauge, Coat Measurer F+N

AVAILABLE ON REQUEST

About This Product

Key Features

Low Battery Indicator & Auto Power Off.
Two Measure Modes- Single & Continuous.
Zero-Point Calibration & Multi-Point Calibration.
Flexible Probe Digital Coating Thickness Meter to Measure the Thickness of Coatings on Ferrous & Non-Ferrous Substrates up to 1250um.
Selectable um/mil Measuring Units, Flexible Probe for Smaller Surfaces, Backlit Display for Better Readability.

Show All Key Features

Product Specifications

Brand	Metrix+
Accuracy	±1-3%n or +2.5 um
Additional Details	Thickness of Substrate: 0.3 mm
Applications	Designed for Non-Destructively Measuring the Thickness of Coatings on Ferrous & Non-Ferrous Substrates It can be Used to Measure Thickness of Paint, Galvanizing Layer, Lacquer Layer, Porcelain Enamel, Phosphide Layer, Copper Tile, Anodizing Layer, Varnish, Plastic Coatings & Powder
Concave Radius	F: NF: 3 mm NF: 50 mm
Convex Radius	F: 1.5 mm NF: 3 mm
Diameter	6 mm
Display	4 Digits Backlit LCD
Humidity	< 95%
Measuring Range	0-1250 um
Model	Coat Measurer F+N
Package Contents	Coating Thickness Gauge, F/NF Probe, ‘0’ Calibration Block, Standard Foils, Batteries, Technical Manual & Hard Carry Case
Power Supply	4x1.5V AAA Battery
Resolution	0.1 um (0-99.9 um) & 1 um (Over 100 um)
Standards	ISO 2178 & ISO 2361 DIN, ASTM & BS
Temperature	0-50 deg C
Country of origin	India
Manufacturer Details	Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001
Packer Details	Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001
Common/Generic Name	Thickness Gauge
Dimensions LxWxH	14.5x6.5x2.5 cm
Weight	0.145 kg

Show All Specifications

Product Details

Introducing the Metrix+ 1250um 1.5x3mm Coating Thickness Gauge, Coat Measurer F+N from the Measuring Tools category by the trusted brand, Metrix+. This innovative tool is designed for precise and non-destructive measurement of coating thickness on both ferrous and non-ferrous substrates. Powered by four 1.5V AAA batteries, it ensures long-lasting performance. The 4-digit backlit LCD display provides clear and easy-to-read measurements in any lighting condition. With a measuring range of 0-1250 um and a convex radius of 1.5 mm, this gauge guarantees accurate results. Plus, it can measure substrates as thin as 0.3 mm, making it a versatile choice for various applications. Invest in the reliable Metrix+ 1250um 1.5x3mm Coating Thickness Gauge for precise and efficient coating measurement.
