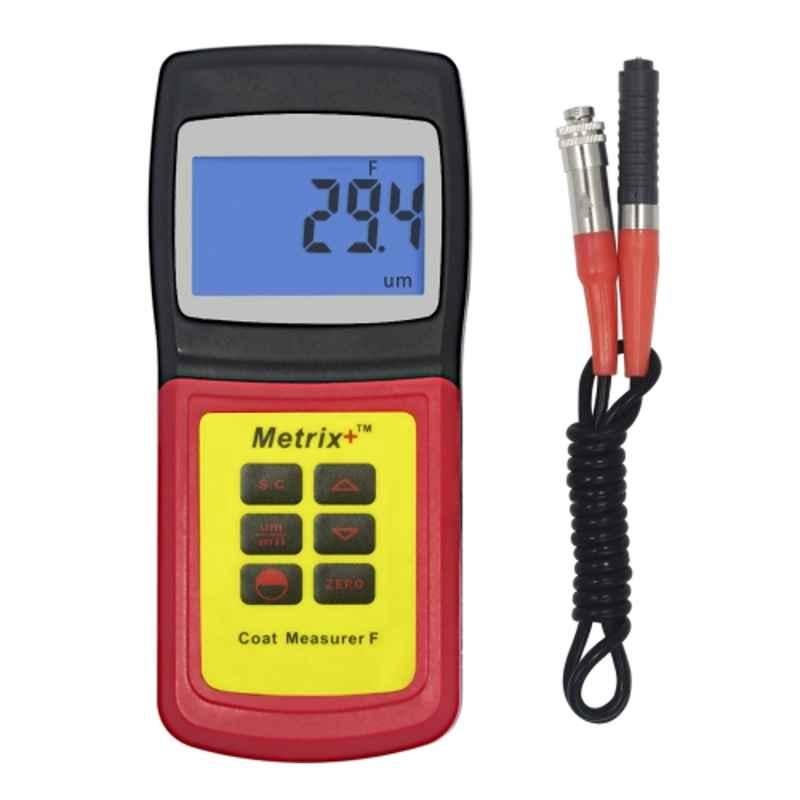

Metrix+ 1250um Coating Thickness Gauge, Coat Measurer F

Name: Metrix+ 1250um Coating Thickness Gauge, Coat Measurer F
Brand: Metrix+
SKU: MSNQ94P1MNGEK0
Price: 18408 INR
Availability: OutOfStock

MRP ₹18,408 (Incl. of all taxes)

₹15,600 ₹2,808 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Two Measure Modes- Single & Continuous.
Zero-Point Calibration & Multi-Point Calibration.
Flexible Probe Digital Coating Thickness Meter to Measure the Thickness of Coatings on Ferrous Substrates up to 1250um.
Selectable um/mil Measuring Units, Flexible Probe for Smaller Surfaces, Backlit Display for Better Readability.

Show All Key Features

Product Specifications

Brand	Metrix+
Accuracy	±1-3%n or +2.5 um
Additional Details	Thickness of Substrate: 0.3 mm
Applications	Designed for Non-Destructively Measuring the Thickness of Coatings on Ferrous Substrates It can be Used to Measure Thickness of Paint, Galvanizing Layer, Lacquer Layer, Porcelain Enamel, Phosphide Layer & Copper Tile
Concave Radius	25 mm
Convex Radius	1.5 mm
Diameter	6 mm
Display	4 Digits Backlit LCD
Humidity	< 95%
Measuring Principle	Magnetic Induction (F)
Measuring Range	0-1250 um
Model	Coat Measurer F
Package Contents	Coating Thickness Gauge, F/NF Probe, ‘0’ Calibration Block, Standard Foils, Batteries, Technical Manual & Hard Carry Case
Power Supply	4x1.5V AAA Battery
Resolution	0.1 um (0-99.9 um) & 1 um (Over 100 um)
Standards	ISO 2178 & ISO 2361 DIN, ASTM & BS
Temperature	0-50 deg C
Country of origin	India
Manufacturer Details	Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001
Packer Details	Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001
Common/Generic Name	Thickness Gauge
Dimensions LxWxH	14.5x6.5x2.5 cm
Weight	0.145 kg

Show All Specifications

Product Details

The Metrix+ 1250um Coating Thickness Gauge, Coat Measurer F is a highly advanced measuring tool designed specifically for non-destructive measuring of coating thickness on ferrous substrates. Its compact design and user-friendly interface make it perfect for both professionals and hobbyists. Powered by 4x1.5V AAA batteries, this gauge features a 4-digit backlit LCD display for easy reading in any lighting conditions. With a measuring range of 0-1250 um and a convex radius of 1.5 mm, it ensures accurate and precise measurements. The model Coat Measurer F also comes with additional details, including a thickness of substrate of 0.3 mm. Trust Metrix+ for all your coating measurement needs.
