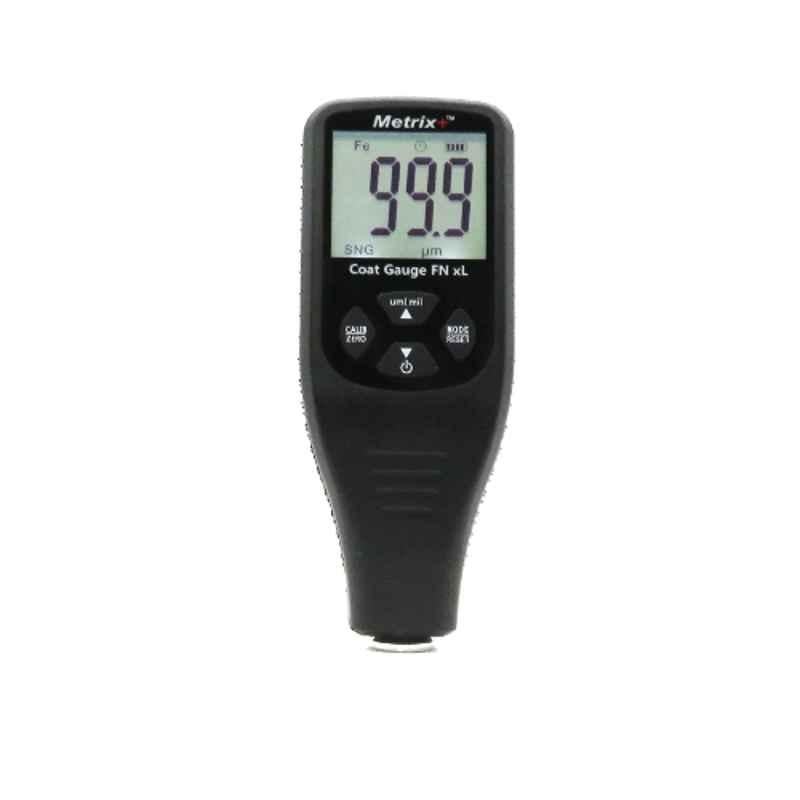

Metrix+ 1500um Coating Thickness Gauge, Coat Gauge FNxL

Name: Metrix+ 1500um Coating Thickness Gauge, Coat Gauge FNxL
Brand: Metrix+
SKU: MSN8580ORLYL92
Price: 12819 INR
Availability: OutOfStock

₹12,819 (Incl. of all taxes)

₹10,863 ₹1,956 GST

MRP ₹13,216 3% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Two Measure Modes- Single & Continuous.
Zero-Point Calibration & Multi-Point Calibration.
Large Display for Better Readability & Selectable um/mil Measuring Units.
Integrated Probe Digital Coating Thickness Meter to Measure the Thickness of Coatings on Ferrous & Non-Ferrous Substrates up to 1500um.

Show All Key Features

Product Specifications

Brand	Metrix+
Accuracy	±(2.5%+2 um)
Additional Details	Thickness of Substrate: 0.5 mm (F) & 0.3 mm (NF)
Applications	Designed for Non-Destructively Measuring the Thickness of Coating & Painting It is Essential for Material Surface Treatment & Widely Used in Manufacturing Industry, Metal-Processing Industry, Chemical Industry, Commodity Inspection Area & Able to Work Steadily in the Laboratory, Workshop & Outdoors
Calibration	Zero Calibration & Multi-Points Calibration
Concave Radius	25 mm
Convex Radius	1.5 mm
Diameter	6 mm
Humidity	20-90% RH
Measuring Principle	Magnetic Induction (F) & Eddy Current (NF)
Measuring Range	0-1500 um
Model	Coat Gauge FNxL
Package Contents	Coating Thickness Gauge, ‘0’ Calibration Bock, Standard Foils, Batteries & Technical Manual
Power Supply	4x1.5V AAA Battery
Resolution	0.1 um/0.01 mil
Temperature	0-40 deg C
Country of origin	India
Manufacturer Details	Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001
Packer Details	Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001
Common/Generic Name	Thickness Gauge
Dimensions LxWxH	15.5x6.2x3.5 cm
Weight	0.125 kg

Show All Specifications

Product Details

The Metrix+ 1500um Coating Thickness Gauge, Coat Gauge FNxL is a highly efficient measuring tool designed for accurately and non-destructively measuring the thickness of various coatings and paintings. With its user-friendly interface, this gauge provides precise measurements, making it ideal for both professionals and DIY enthusiasts.

The gauge operates on a power supply of 4x1.5V AAA batteries, ensuring its uninterrupted functionality. Its compact design and lightweight construction make it extremely portable, allowing for easy use in different work environments.

Equipped with advanced technology, this gauge offers a measuring range of 0-1500 um, allowing for versatile applications. It features an impressive convex radius of 1.5 mm, ensuring accurate readings even on curved surfaces. With a diameter of 6 mm, it provides accurate measurements even in narrow spaces.

The model Coat Gauge FNxL also provides additional details such as the thickness of the substrate, with options for 0.5 mm (F) and 0.3 mm (NF). This comprehensive information allows for enhanced precision and accuracy in measurements.

In conclusion, the Metrix+ 1500um Coating Thickness Gauge, Coat Gauge FNxL is a top-of-the-line measuring tool that combines effectiveness, portability, and advanced technology. Its applications are diverse, making it an indispensable asset for professionals in the industry as well as home users.
