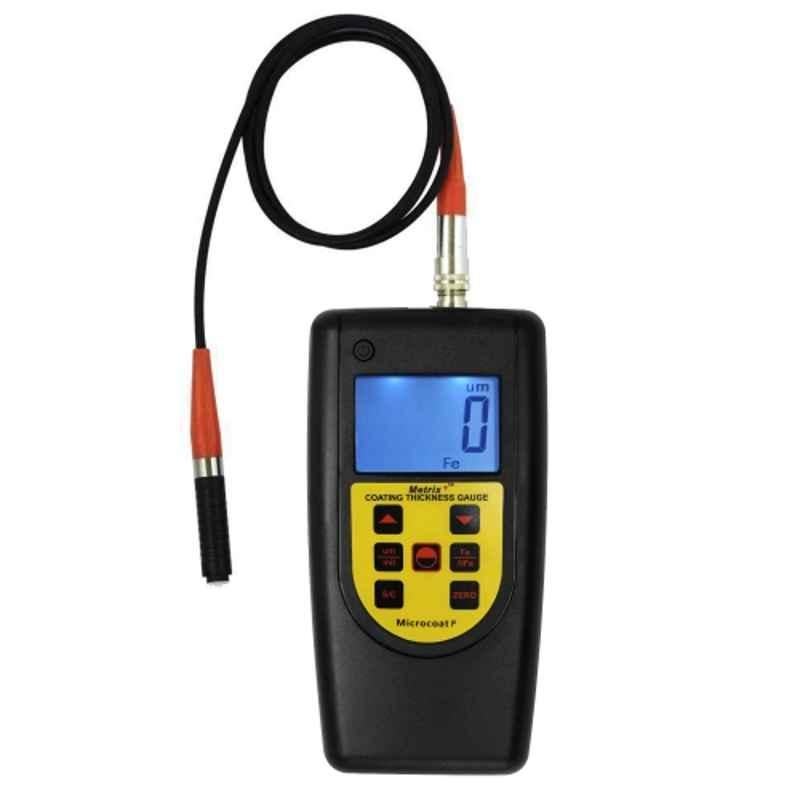

Metrix+ 200um Coating Thickness Gauge, Microcoat F

Name: Metrix+ 200um Coating Thickness Gauge, Microcoat F
Brand: Metrix+
SKU: MSNEKPQ03WXW52
Price: 70800 INR
Availability: OutOfStock

MRP ₹70,800 (Incl. of all taxes)

₹60,000 ₹10,800 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Measuring Principle- Magnetic Induction.
Backlit Display for Better Readability.
Auto Power Off, Selectable um/mil Measuring Units.
Zero-Point Calibration & Multi-Point Calibration.
Single & Continuous Mode, Helpful for Curved & Tiny Objects.
Precision Measurement of Thinner Coatings & on Smaller Workpieces.
Flexible Probe Precise Measurement of Coating Thickness up to 200um on Ferrous Substrates.

Show All Key Features

Product Specifications

Brand	Metrix+
Accuracy	±1-3%n or +2.5 um
Additional Details	Thickness of Substrate: 0.1 mm
Applications	Non-Destructively Measuring the Thickness of Coatings on Non-Ferrous Substrates, Like Paint, Anodizing Later, Lacquer Layer It is Widely Used in Manufacturing Industries, Metal Processing Industries, Chemical Industries, Commodity Inspection Area, Able to Work in Outdoor & Laboratory Environments
Concave Radius	4 mm
Convex Radius	2 mm
Display	4 Digits Backlit LCD
Humidity	10-90% RH
Measuring Range	0-200 um
Model	Microcoat F
Package Contents	Coating Thickness Gauge, NF Probe, ‘0’ Calibration Non-Ferrous Block, Standard Foils, Batteries, Technical Manual & Hard Carry Case
Power Supply	4x1.5V AAA Battery
Resolution	0.1 um (0-99.9 um) & 1 um (Over 100 um)
Standards	ISO 2178 & ISO 2361 DIN, ASTM & BS
Temperature	0-40 deg C
Country of origin	India
Manufacturer Details	Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001
Packer Details	Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001
Common/Generic Name	Thickness Gauge
Dimensions LxWxH	14x7.2x3.4 cm
Weight	0.215 kg

Show All Specifications

Product Details

Introducing the Metrix+ 200um Coating Thickness Gauge - a powerful measuring tool designed for accurate and non-destructive thickness measurements of coatings on non-ferrous substrates. With its advanced capabilities, this gauge is perfect for applications such as measuring the thickness of paint, anodizing layers, and lacquer on various surfaces.

The Metrix+ 200um Coating Thickness Gauge comes with a reliable power supply of 4x1.5V AAA batteries, ensuring long-lasting performance and convenience. Its 4 digits backlit LCD display provides clear and easy-to-read measurements, even in dimly lit environments, making it ideal for use in any situation.

With a measuring range of 0-200 um, the Metrix+ 200um Coating Thickness Gauge offers unparalleled accuracy and precision. It also features a convex radius of 2 mm, allowing for measurements on curved surfaces with ease. Additionally, this gauge is equipped with the Microcoat F model, guaranteeing exceptional reliability and durability.

In terms of additional details, this gauge can accurately measure substrates with a thickness as low as 0.1 mm. It is an essential tool for professionals in various industries, such as automotive, manufacturing, and quality control. Whether you are a professional or a DIY enthusiast, the Metrix+ 200um Coating Thickness Gauge is a must-have tool that delivers reliable and precise results, every time.
