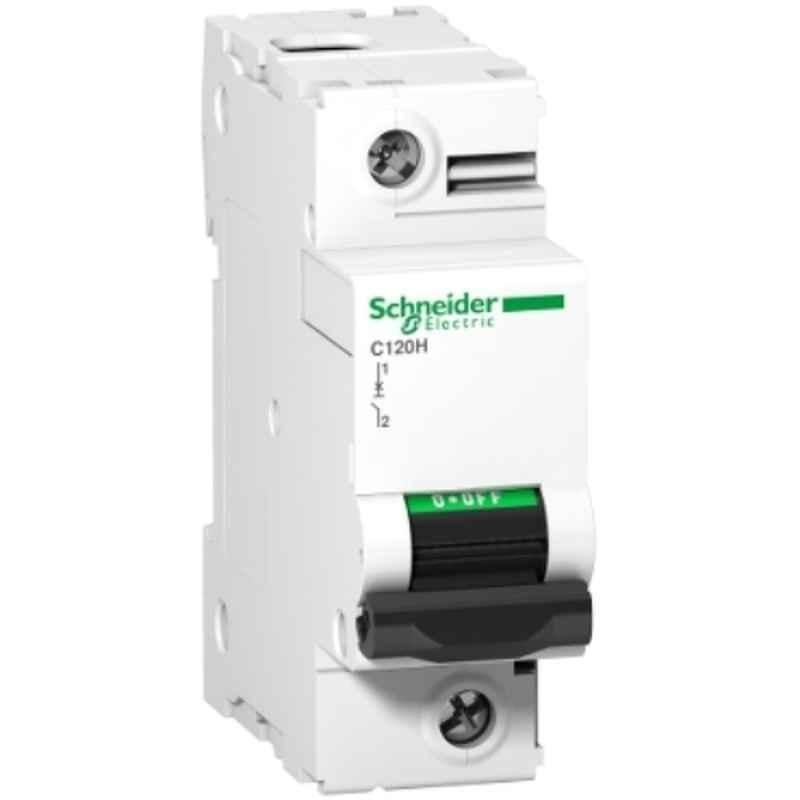

Schneider Electric Acti9 C120H 100A C-Curve Single Pole MCB, A9N18447, Breaking Capacity: 15 kA

Name: Schneider Electric Acti9 C120H 100A C-Curve Single Pole MCB, A9N18447, Breaking Capacity: 15 kA
Brand: Schneider Electric
SKU: MSN8KLP2MRVN5V
Price: 2339 INR
Availability: OutOfStock

₹2,339 (Incl. of all taxes)

₹1,982 ₹357 GST

MRP ₹4,997 53% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Positive Contact Indication for Assurance of Disconnection.
Terminal Connections: Flexible Cables: Up to 35 Sqmm & Rigid Cable: Up to 50 Sqmm.

Product Specifications

Brand	Schneider Electric
Breaking Capacity	15 kA
Current Rating	100 Amp
Curve Type	C
Number of Poles	Single Pole
AC or DC	AC
Frequency	50/60 Hz
Item Code	A9N18447
Protection Class	IP20
Rated Voltage	220-240 VAC
Additional Details	Insulation Voltage: 500 VAC Impulse Voltage: 6 kV Tightening Torque: 3.5 Nm Pollution Degree: 3 Suitable For: Industrial Environment
Ambient Temperature	Operating: -30 to 60 deg C Storage: -40 to 70 deg C
Certification	EAC
Dimensions	81x27x73 mm
Model	C120H
Mounting type	Clip-on (DIN Rail)
Series	Acti9
Standards	EN/IEC 60898-1 & EN/IEC 60947-2
Weight	0.205 kg
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C, Gurgaon,Haryana-122002, India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C, Gurgaon,Haryana-122002, India.
Common/Generic Name	MCB
Dimensions LxWxH	0.77x0.88x1.4 cm
Weight	0.5 kg

Show All Specifications

Product Details

Schneider Electric Acti9 C120H 100A C-Curve Single Pole MCB, A9N18447, Breaking Capacity: 15 kA is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of MCB. All Schneider Electric Acti9 C120H 100A C-Curve Single Pole MCB, A9N18447, Breaking Capacity: 15 kA are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric Acti9 C120H 100A C-Curve Single Pole MCB, A9N18447, Breaking Capacity: 15 kA, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric MCB .
