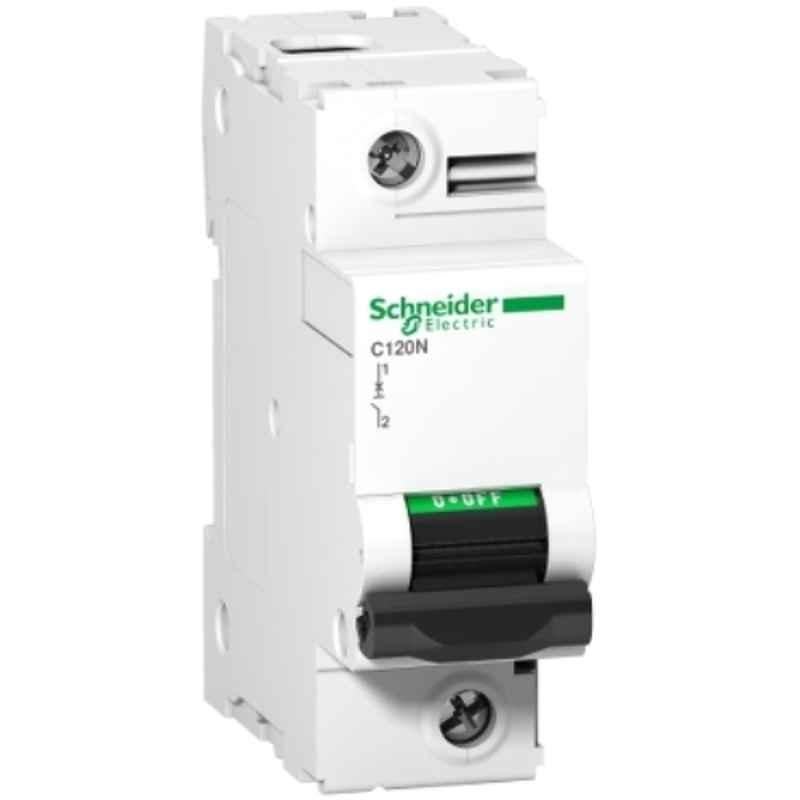

Schneider Electric Acti9 C120N 100A C-Curve Single Pole MCB, A9N18358, Breaking Capacity: 10 kA

Name: Schneider Electric Acti9 C120N 100A C-Curve Single Pole MCB, A9N18358, Breaking Capacity: 10 kA
Brand: Schneider Electric
SKU: MSNM9XYN334MKJ
Price: 3643 INR
Availability: OutOfStock

₹3,643 (Incl. of all taxes)

₹3,083 ₹560 GST

MRP ₹4,503 19% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Positive Contact Indication for Assurance of Disconnection.
Terminal Connections: Flexible Cables: Up to 35 Sqmm & Rigid Cable: Up to 50 Sqmm.

Product Specifications

Brand	Schneider Electric
Breaking Capacity	10 kA
Current Rating	100 Amp
Curve Type	C
Number of Poles	Single Pole
AC or DC	AC
Frequency	50/60 Hz
Item Code	A9N18358
Number of Modules	1.5
Protection Class	IP20
Rated Voltage	220-240 VAC
Additional Details	Insulation Voltage: 500 VAC Impulse Voltage: 6 kV Tightening Torque: 3.5 Nm Pollution Degree: 3
Ambient Temperature	Operating: -25 to 70 deg C Storage: -40 to 85 deg C
Certification	EAC
Dimensions	81x27x73 mm
Model	C120N
Mounting type	Clip-on (DIN Rail)
Notes	Images are for reference purpose only
Series	Acti9
Standards	EN/IEC 60898-1 & EN/IEC 60947-2
Weight	0.205 kg
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	MCB
Dimensions LxWxH	2.6x7.5x8.6 cm
Weight	0.15 kg

Show All Specifications

Product Details

The Schneider Electric Acti9 C120N 100A C-Curve Single Pole MCB, A9N18358, offers reliable protection for your electrical circuits. With a breaking capacity of 10 kA, this MCB is designed for AC applications. The compact design features a number of poles, 1.5 modules, and a weight of 0.205 kg, making it easy to install on a DIN rail using clip-on mounting. The MCB also includes positive contact indication for assured disconnection and terminal connections that support flexible cables up to 35 Sqmm and rigid cables up to 50 Sqmm. Trust Schneider Electric for quality and durability in your electrical systems.
