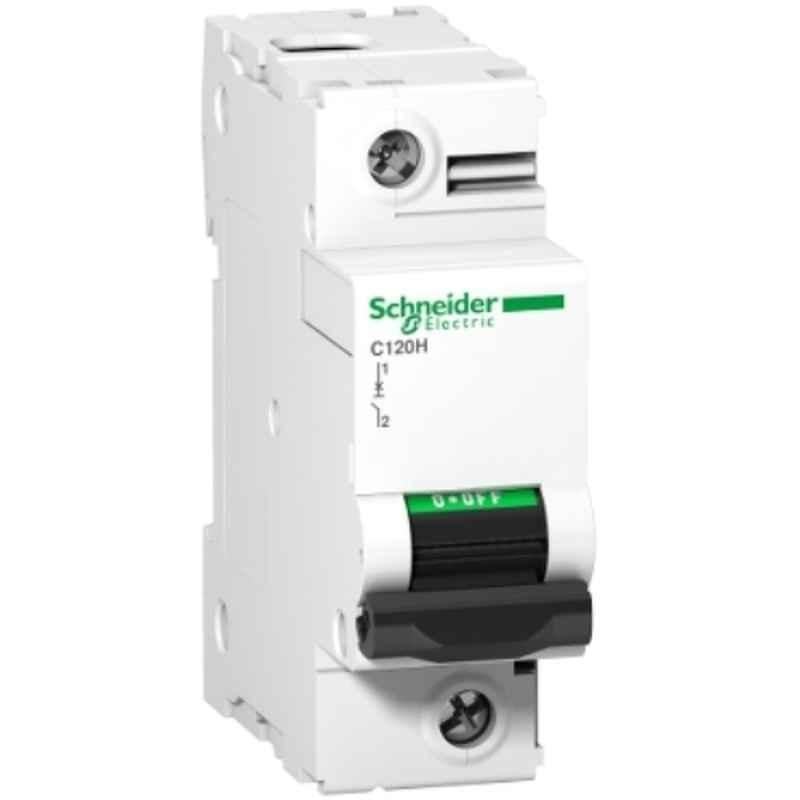

Schneider Electric Acti9 C120H 125A C-Curve Single Pole MCB, A9N18448, Breaking Capacity: 15 kA

Name: Schneider Electric Acti9 C120H 125A C-Curve Single Pole MCB, A9N18448, Breaking Capacity: 15 kA
Brand: Schneider Electric
SKU: MSNNKQGY660Z9X
Price: 2583 INR
Availability: OutOfStock

₹2,583 (Incl. of all taxes)

₹2,188 + ₹395 GST

MRP ₹5,517 53% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Positive Contact Indication for Assurance of Disconnection.
Terminal Connections: Flexible Cables: Up to 35 Sqmm & Rigid Cable: Up to 50 Sqmm.

Product Specifications

Brand	Schneider Electric
Breaking Capacity	15 kA
Current Rating	125 Amp
Curve Type	C
Number of Poles	Single Pole
AC or DC	AC
Frequency	50/60 Hz
Item Code	A9N18448
Protection Class	IP20
Rated Voltage	220-240 VAC
Additional Details	Insulation Voltage: 500 VAC Impulse Voltage: 6 kV Tightening Torque: 3.5 Nm Pollution Degree: 3 Suitable For: Industrial Environment
Ambient Temperature	Operating: -30 to 60 deg C Storage: -40 to 70 deg C
Certification	EAC
Dimensions	81x27x73 mm
Model	C120H
Mounting type	Clip-on (DIN Rail)
Series	Acti9
Standards	EN/IEC 60947-2 & EN/IEC 60898-1
Weight	0.205 kg
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C, Gurgaon,Haryana-122002, India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C, Gurgaon,Haryana-122002, India.
Common/Generic Name	MCB
Dimensions LxWxH	0.77x0.88x1.4 cm
Weight	0.5 kg

Show All Specifications

Product Details

The Schneider Electric Acti9 C120H 125A C-Curve Single Pole MCB (A9N18448) is a reliable miniature circuit breaker designed for protecting electrical circuits from overload and short circuits. With a breaking capacity of 15 kA, this MCB ensures safe and efficient operation. The positive contact indication feature provides assurance of disconnection. This MCB is suitable for AC applications and has a current rating of 125 Amp. It offers flexible terminal connections for cables up to 35 Sqmm and rigid cables up to 50 Sqmm. The clip-on mounting type makes installation on DIN Rails quick and easy, weighing only 0.205 kg. Trust Schneider Electric for quality and performance.

Browse through the extensive list of MCB at Moglix. Shop online for other Schneider Electric MCB. available at Moglix in the lowest price range.
