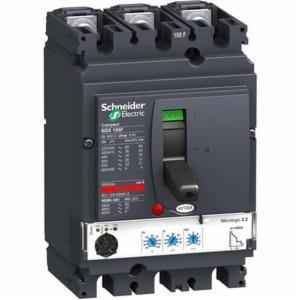

Schneider Electric 220A 70kA MCCB With Magnetic Trip Unit MA Type, LV431756

Name: Schneider Electric 220A 70kA MCCB With Magnetic Trip Unit MA Type, LV431756
Brand: Schneider Electric
SKU: MSN2VE2X7OFRJ7
Price: 47119 INR
Availability: OutOfStock

₹47,119 (Incl. of all taxes)

₹39,931 ₹7,188 GST

MRP ₹90,530 47% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Trip Range: 100 A.
Adjustable magnetic setting Im 6 -14 x In (2.5 - 100A) & 9 - 14 x In (150 - 200A).
Adjustable neutral protection - N, N/2,OFF for 4 Pole MCCB.

Product Specifications

Brand	Schneider Electric
Breaking Capacity	70 kA
Number of Poles	Three Pole
Rated Current	220 Amp
AC or DC	AC
Frequency	50/60 Hz
Item Code	LV431756
Mechanism	Magnetic Trip Unit MA type
Rated Voltage	690 VAC
Series	Compact NSX
Notes	Actual product model might vary from that shown in the picture
Standards	IEC 60947-2
Country of origin	India
Manufacturer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Packer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Dimensions LxWxH	9.5x8.5x14 cm
Weight	1 kg

Show All Specifications

Product Details

The Schneider Electric 220A 70kA MCCB with Magnetic Trip Unit MA Type (LV431756) is designed for reliable three-pole circuit protection. Compliant with IEC 60947-2 standards, this Compact NSX series MCCB offers a robust 70 kA breaking capacity, ensuring safety and durability in demanding AC electrical systems. Its adjustable magnetic trip settings range from 100A with Im settings between 6-14 times In for 2.5-100A and 9-14 times In for 150-200A loads. Additionally, it features customizable neutral protection options (N, N/2, OFF) for enhanced flexibility in four-pole configurations, making it ideal for advanced electrical networks.

Browse through the extensive list of MCCB at Moglix. Shop online for other Schneider Electric MCCB. available at Moglix in the lowest price range.
