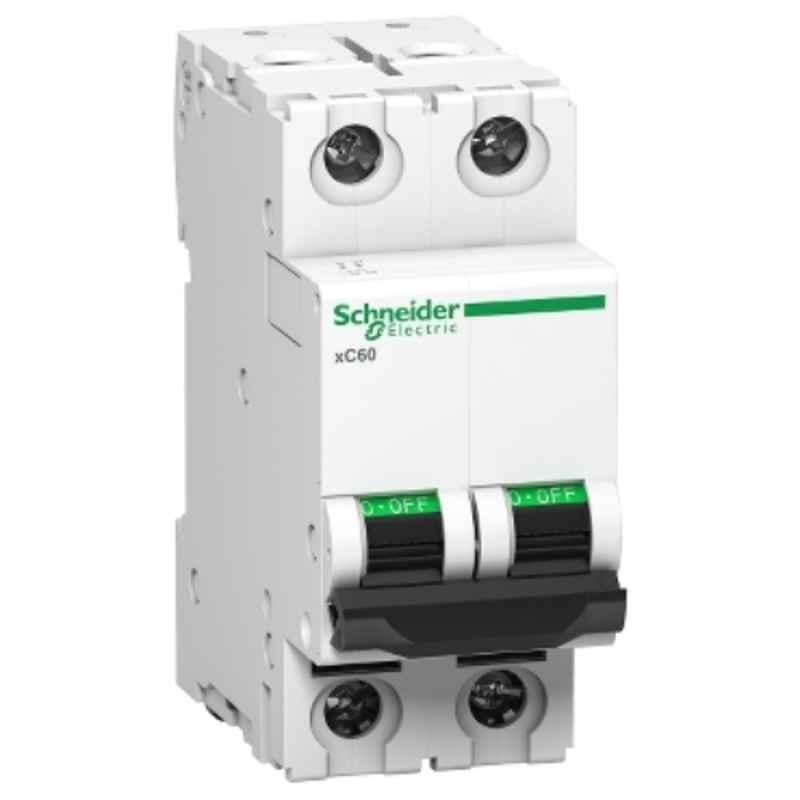

Schneider Electric Acti9 xC60 3A D-Curve Double Pole MCB, A9N2P03D, Breaking Capacity: 10 kA

Name: Schneider Electric Acti9 xC60 3A D-Curve Double Pole MCB, A9N2P03D, Breaking Capacity: 10 kA
Brand: Schneider Electric
SKU: MSNEKPQPMMZY52
Price: 1652 INR
Availability: OutOfStock

₹1,652 (Incl. of all taxes)

₹1,398 + ₹254 GST

MRP ₹1,836 10% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Higher System Performance with Optimized Cost: Cascading.
Higher Installation Life: Energy Limitation Class 3, Fast Closure Mechanism.
Ease, Speed & Flexibility of Installation Biconnect, Line-Load Reversible.
Field-Fit table Auxiliaries for Advance Protection & Monitoring.
Positive Contact Indication for Assurance of Disconnection.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Breaking Capacity	10 kA
Current Rating	3 Amp
Curve Type	D
Number of Poles	Double Pole
AC or DC	AC
Frequency	50/60 Hz
Item Code	A9N2P03D
Protection Class	IP20
Rated Voltage	240 VAC
Additional Details	Insulation Voltage: 500 VAC Impulse Voltage: 6 kV Tightening Torque: 2 Nm
Ambient Temperature	Operating: -30 to 70 deg C Storage: -40 to 85 deg C
Dimensions	85x36x77.5 mm
Model	xC60
Mounting type	Clip-on (DIN Rail)
Series	Acti9
Standards	EN/IEC 60898-1 & EN/IEC 60947-2
Weight	0.215 kg
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	MCB
Dimensions LxWxH	18x85x77.5 mm
Weight	94 g

Show All Specifications

Product Details

Schneider Electric Acti9 xC60 3A D-Curve Double Pole MCB, A9N2P03D, Breaking Capacity: 10 kA: The Schneider Electric Acti9 xC60 MCB, model A9N2P03D, delivers advanced circuit protection in demanding applications that require precise and quick response to faults. Rated at 3A with a D-curve tripping profile, this double-pole miniature circuit breaker is perfectly suited for inductive loads such as motors, transformers, and heavy machinery that experience high inrush currents. Its high breaking capacity of 10 kA ensures safe and reliable interruption of even the most severe short circuits, preserving the integrity of downstream devices and infrastructure. Engineered for easy installation, it features screw terminals and snap-fit DIN rail compatibility. The Acti9 xC60 range offers the added benefit of enhanced system visibility and diagnostics. With its durable construction and compliance with global safety standards, this MCB is a critical component for industrial, commercial, and specialized residential setups, delivering peace of mind in every switch.
