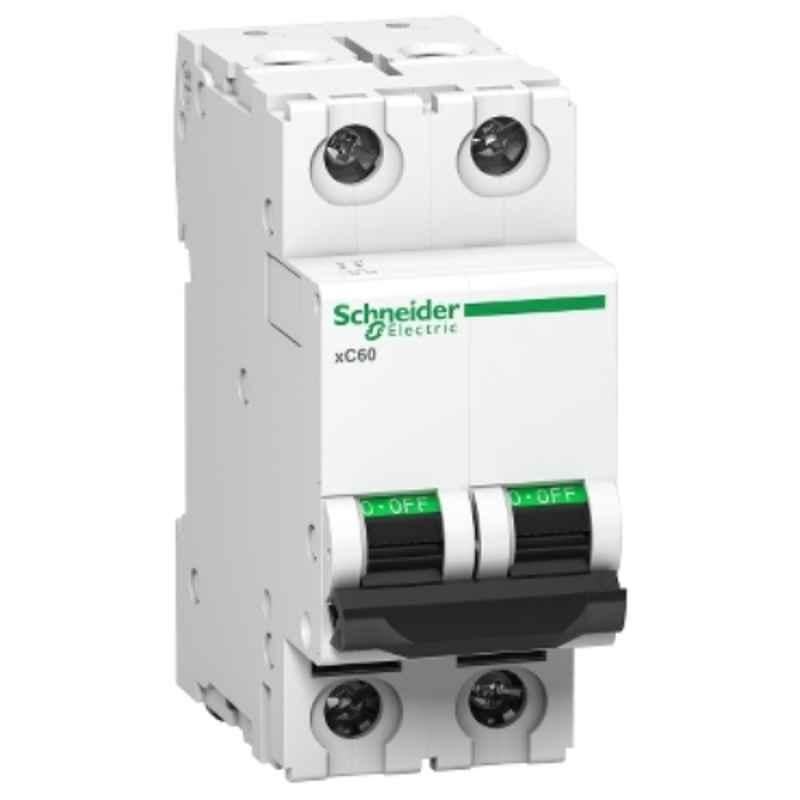

Schneider Electric Acti9 xC60 40A B-Curve Double Pole MCB, A9N2P40B, Breaking Capacity: 10 kA

Name: Schneider Electric Acti9 xC60 40A B-Curve Double Pole MCB, A9N2P40B, Breaking Capacity: 10 kA
Brand: Schneider Electric
SKU: MSN457MPEQMN9J
Price: 891 INR
Availability: OutOfStock

₹891 (Incl. of all taxes)

₹755 + ₹136 GST

MRP ₹2,112 57% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Higher System Performance with Optimized Cost: Cascading.
Higher Installation Life: Energy Limitation Class 3, Fast Closure Mechanism.
Ease, Speed & Flexibility of Installation Biconnect, Line-Load Reversible.
Field-Fit table Auxiliaries for Advance Protection & Monitoring.
Positive Contact Indication for Assurance of Disconnection.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Breaking Capacity	10 kA
Current Rating	40 Amp
Curve Type	B
Number of Poles	Double Pole
AC or DC	AC
Frequency	50/60 Hz
Item Code	A9N2P40B
Protection Class	IP20
Rated Voltage	240 VAC
Additional Details	Insulation Voltage: 500 VAC Impulse Voltage: 6 kV Tightening Torque: 2 Nm
Ambient Temperature	Operating: -30 to 70 deg C Storage: -40 to 85 deg C
Dimensions	85x36x77.5 mm
Model	xC60
Mounting type	Clip-on (DIN Rail)
Series	Acti9
Standards	EN/IEC 60898-1 & EN/IEC 60947-2
Weight	0.215 kg
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	MCB
Dimensions LxWxH	85x77.5x18 mm
Weight	94 g

Show All Specifications

Product Details

Voltage fluctuation is a very common phenomena in any home. Safeguard your residence with Schneider Electric 40A Acti 9 xC60 Double Pole 10kA B Curve MCB, A9N2P40B. An MCB is an intelligent, automatic and most reliable product one should install. This Schneider MCB comes with Double Pole. Each pole of this MCB has a capacity to detect and break the circuit at 10 kA. MCB can completely avoid any sorts of mishappening that might happen due to overload, overcurrent or short circuit. This product has a B type curve, which prevents the short circuit. An MCB can protect your appliance from any sort of electrical damage. With a current rating of 40 Amp, this device is the best for domestic usage. MCB is generally used to control, master and regulate the electrical power system. If you have an MCB placed at the right place for the right circuits then you need not worry about anything else.
