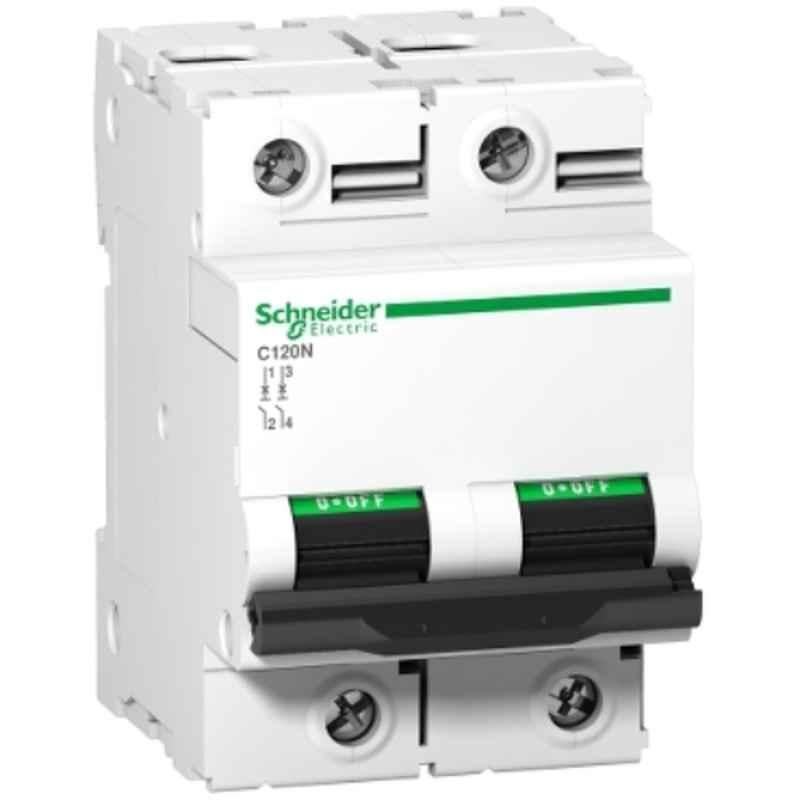

Schneider Electric Acti9 C120N 80A C-Curve Double Pole MCB, A9N18361, Breaking Capacity: 10 kA

Name: Schneider Electric Acti9 C120N 80A C-Curve Double Pole MCB, A9N18361, Breaking Capacity: 10 kA
Brand: Schneider Electric
SKU: MSN39YRJ11N25Q
Price: 5359 INR
Availability: OutOfStock

₹5,359 (Incl. of all taxes)

₹4,541 + ₹818 GST

MRP ₹9,787 45% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Positive Contact Indication for Assurance of Disconnection.
Terminal Connections: Flexible Cables: Up to 35 Sqmm & Rigid Cable: Up to 50 Sqmm.

Product Specifications

Brand	Schneider Electric
Breaking Capacity	10 kA
Current Rating	80 Amp
Curve Type	C
Number of Poles	Double Pole
AC or DC	AC
Frequency	50/60 Hz
Item Code	A9N18361
Number of Modules	3
Protection Class	IP20
Rated Voltage	380-415 VAC
Additional Details	Insulation Voltage: 500 VAC Impulse Voltage: 6 kV Tightening Torque: 3.5 Nm Pollution Degree: 3
Ambient Temperature	Operating: -25 to 70 deg C Storage: -40 to 85 deg C
Certification	EAC
Dimensions	81x54x73 mm
Model	C120N
Mounting type	Clip-on (DIN Rail)
Notes	Images are for reference purpose only
Series	Acti9
Standards	EN/IEC 60947-2 & EN/IEC 60898-1
Weight	0.41 kg
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	MCB
Dimensions LxWxH	8.6x8.1x7.5 cm
Weight	0.58 kg

Show All Specifications

Product Details

The Schneider Electric Acti9 C120N 80A C-Curve Double Pole MCB (A9N18361) is a reliable and efficient miniature circuit breaker designed for protecting electrical circuits. With a breaking capacity of 10 kA, this MCB offers peace of mind against overloads and short circuits. Featuring positive contact indication, you can be assured of disconnection when needed. The terminal connections support flexible cables up to 35 Sqmm and rigid cables up to 50 Sqmm. Easy to install with clip-on mounting on DIN Rail, this MCB is suitable for AC applications. Trust Schneider Electric for quality and performance in every product.
