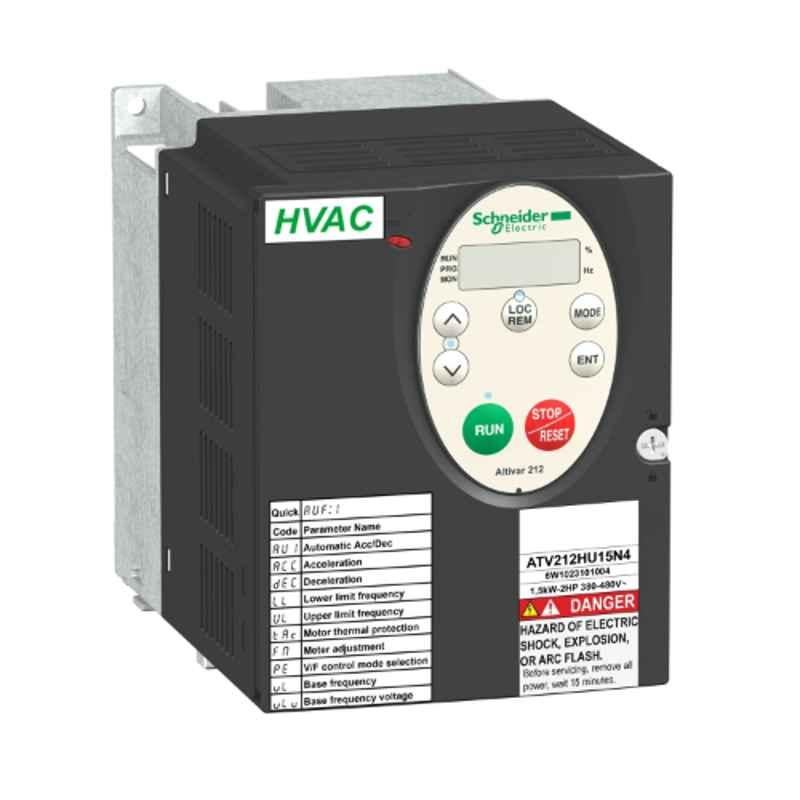

Schneider Electric Altivar 212 1.5kW 323-528V Three Phase Variable Speed Drive with EMC Filter, ATV212HU15N4

Name: Schneider Electric Altivar 212 1.5kW 323-528V Three Phase Variable Speed Drive with EMC Filter, ATV212HU15N4
Brand: Schneider Electric
SKU: MSNV5OOZ08Z056
Price: 21324 INR
Availability: OutOfStock

₹21,324 (Incl. of all taxes)

₹18,067 ₹3,257 GST

MRP ₹47,441 55% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Design is Based on Eco-Energy with A Reduction In Energy Consumption of Up To 70% Compared To A Conventional Control System.
Cable Temperature Rise Reduction Technology, the Altivar 212 Drive Offers Immediate, Disturbance-Free Operation Avoiding Additional Options Such As A Line Choke Or Dc Choke To Deal with Current Harmonics.

Product Specifications

Brand	Schneider Electric
Additional Details	EMC Filter: EMC Filter Integrated
Certification and Approval	UL NOM 117 CSA C-Tick
Connector	1 Open Style 1 RJ45
Current	line Current: 2.5 Amp at 480 V 3.2 Amp at 380 V
Depth	150 mm
Frequency	Supply: 50-60 Hz
Height	143 mm
Interface	Physical: 2-Wire RS 485
Item Code	ATV212HU15N4
Notes	Images is only for Reference Purpose
Number Of Phase	Three
Power	1.5 kW
Power (HP)	2 HP
Protection	IP21
Rated Voltage	Supply: 323-528 V
Series	Altivar 212
Standards	EN 55011 class A group 1 EN 61800-3 Environments 2 Category C1 EN 61800-3 Category C3
Suitable For	Asynchronous Motors
Transmission Rate	9600 bps or 19200 bps
Weight	2 kg
Width	107 mm
Country of origin	India
Manufacturer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Packer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Common/Generic Name	Variable Speed Drive
Dimensions LxWxH	9.5x8.5x14 cm
Weight	1 kg

Show All Specifications

Product Details

The Schneider Electric Altivar 212 1.5kW 323-528V Three Phase Variable Speed Drive with EMC Filter (ATV212HU15N4) delivers up to 70% energy savings through eco-energy design, reducing operational costs significantly. This 2 HP drive features integrated EMC filtering and cable temperature rise reduction technology, ensuring disturbance-free operation without the need for additional line or DC chokes. Its compact 107 mm width and lightweight 2 kg build offer easy installation. Certified by UL, NOM 117, CSA, and C-Tick, with a 2-wire RS 485 physical interface and transmission rates of 9600 or 19200 bps, this drive is reliable for diverse industrial applications.
