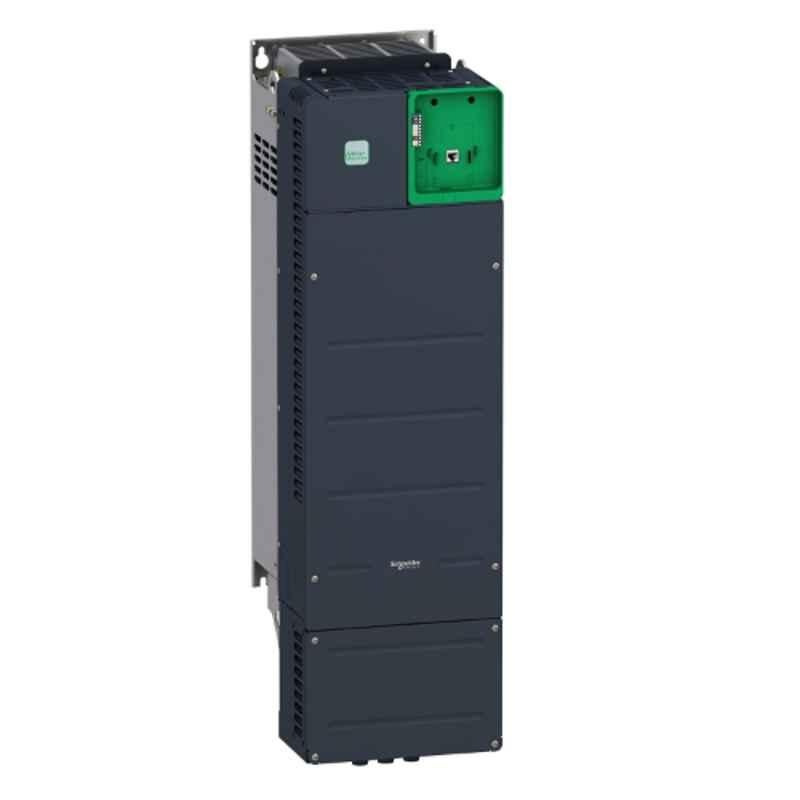

Schneider Electric Altivar Machine ATV340 55kW 380-480V 106A Three Phase Variable Speed Drive with Ethernet, ATV340D55N4E

Name: Schneider Electric Altivar Machine ATV340 55kW 380-480V 106A Three Phase Variable Speed Drive with Ethernet, ATV340D55N4E
Brand: Schneider Electric
SKU: MSN39YRZEWML5Q
Price: 241350 INR
Availability: OutOfStock

₹241,350 (Incl. of all taxes)

₹204,536 ₹36,814 GST

MRP ₹547,591 55% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

This Product Integrates Modbus Serial Line Communication Protocols As Standard.
Designed To Meet the Needs of Applications for Harsh Environments, Such As Vibration, Shock & Non-Conductive Dust & Where High Temperature Resistance Up To 60 Deg C is Needed.

Product Specifications

Brand	Schneider Electric
Additional Details	Standard Version
Certification and Approval	UL CSA TÜV EAC Ctick
Communication port protocol	Modbus TCP EtherNet/IP Modbus Serial
Current	Nominal Output: 106 A
Depth	249 mm
Frequency	Supply: 50-60 Hz
Height	385 mm
Item Code	ATV340D55N4E
Mounting	Wall Mount
Notes	Images is only for Reference Purpose
Number Of Phase	Three
Power	75 kW & 55 kW
Power (HP)	100 HP & 75 HP
Protection	IP20
Rated Voltage	Support: 380-480 V
Series	Altivar Machine ATV340
Standards	EN/IEC 61800-3 EN/IEC 61800-5-1 IEC 60721-3 IEC 61508 IEC 13849-1 UL 618000-5-1 UL 508C IEC 61000-3-12
Weight	10.2 kg
Width	180 mm
Country of origin	India
Manufacturer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Packer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Common/Generic Name	Variable Speed Drive
Dimensions LxWxH	9.5x8.5x14 cm
Weight	1 kg

Show All Specifications

Product Details

Schneider Electric Altivar Machine ATV340 55kW 380-480V 106A Three Phase Variable Speed Drive with Ethernet, ATV340D55N4E is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Variable Frequency Drives. All Schneider Electric Altivar Machine ATV340 55kW 380-480V 106A Three Phase Variable Speed Drive with Ethernet, ATV340D55N4E are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric Altivar Machine ATV340 55kW 380-480V 106A Three Phase Variable Speed Drive with Ethernet, ATV340D55N4E, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Variable Frequency Drives .
